DAPAudio M10 - Connection Example; Audio Device Interfacing

7
M10 – M12 – M15
Ordercode: D3660 – D3661 – D3662

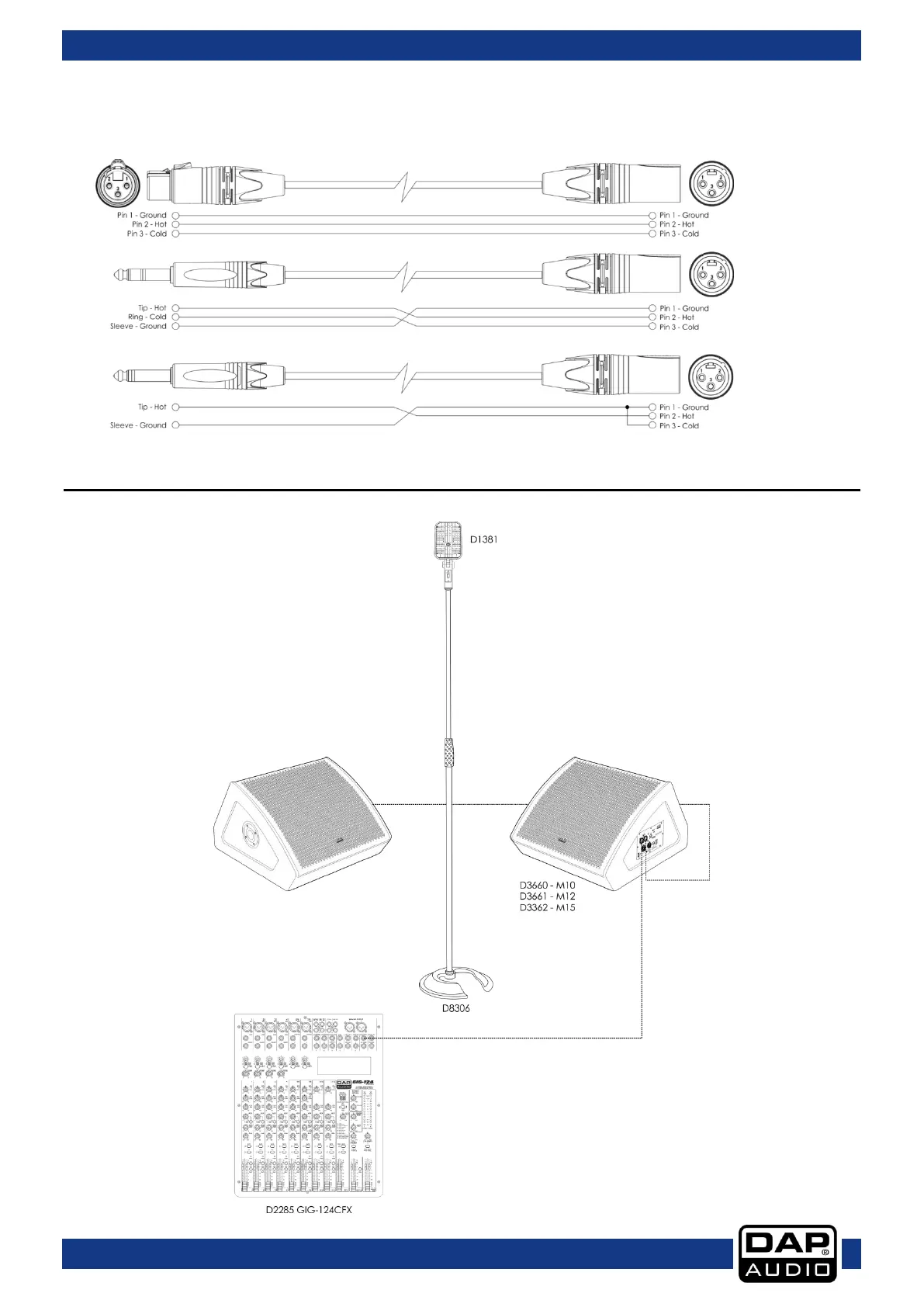

For these applications the unit provides 1/4" TRS and XLR connectors to easily interface with
most professional audio devices. Follow the configuration examples below for your particular
connection.
Connection Example
