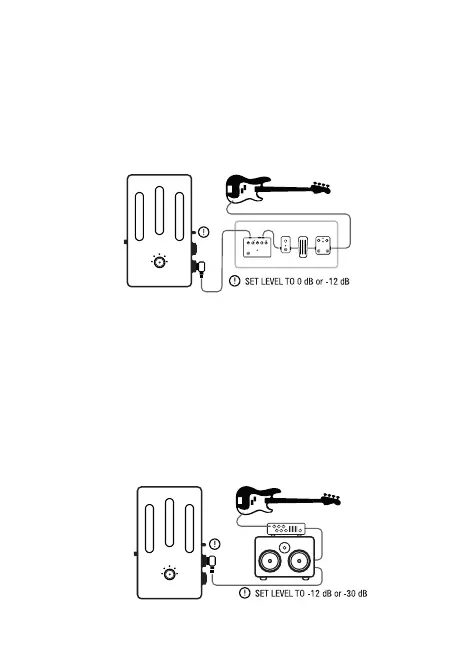

Connection diagrams
Element with your pedalboard
Connect your instrument to your pedalboard as you normally would and add the
Element at the end of the signal chain. Use the input labelled “INSTRUMENT
IN” on the Element You can now choose the impulse response from slots 1-5
or the bypass signal. From here the signal is passed through to the XLR output
and via the blend and volume controls to the headphone outputs.
Element with your amplifier and speaker cabinet
Note: The Element does NOT act as a loadbox! Always make sure your
amplifier is connected to a suitable load!!!
The Element is built to work with amplifiers with a maximum output of 900
Watts. For the safest operation it is advised to connect the Element after your
speaker cabinet from your speaker cabinet’s parallel output connector. Use the
input labelled “AMP IN” on the Element . You can now choose the impulse
response from slots 1-5 or the bypass signal. From here the signal is passed
through to the XLR output and via the blend and volume controls to the
headphone outputs.
