DAS MAX Series - Tent Assembly Step 2;a; Connecting Roof Connectors to Cantilevers; Connecting Resultant Element and Horizontal Bar; Final Structure Verification

KROK 3

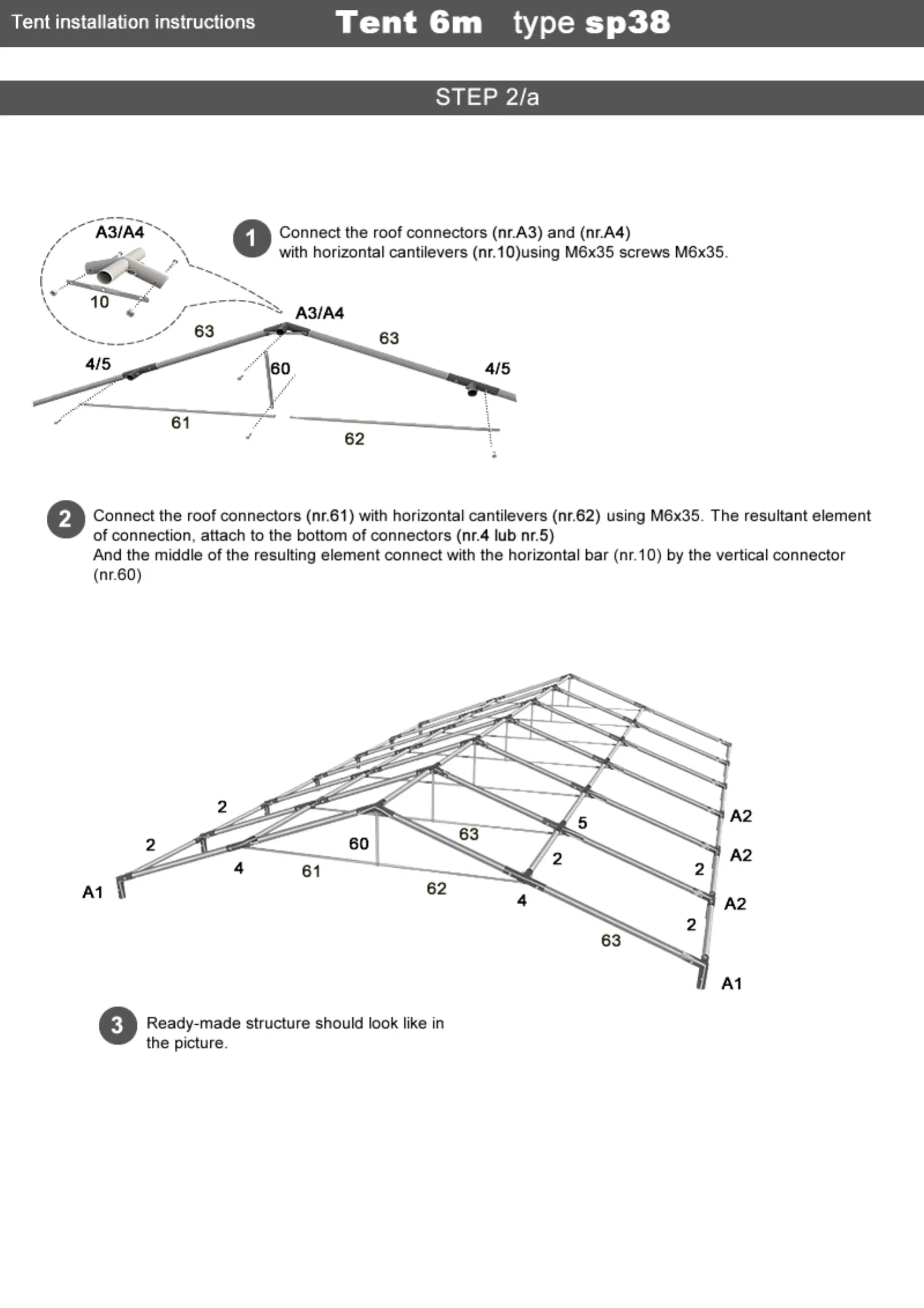

STEP 2/a
Connect the roof connectors (nr.61) with horizontal cantilevers (nr.62) using M6x35. The resultant element
of connection, attach to the bottom of connectors (nr.4 lub nr.5) 
And the middle of the resulting element connect with the horizontal bar (nr.10) by the vertical connector
(nr.60)

Ready-made structure should look like in
the picture.
Connect the roof connectors (nr.A3) and (nr.A4)
with horizontal cantilevers (nr.10)using M6x35 screws M6x35.
3
2
1
61
62
62
A3 /A4
4/5
4/5
4
4
5
A3 /A4
10
60
61
60
A1
A1
A2
A2
A2
2
2
2
2
2
63
63
63
63
Tent installation instructions
Tent 6m type sp38
