Data East Batman - Cabinet Parts Illustration; Cabinet Component List

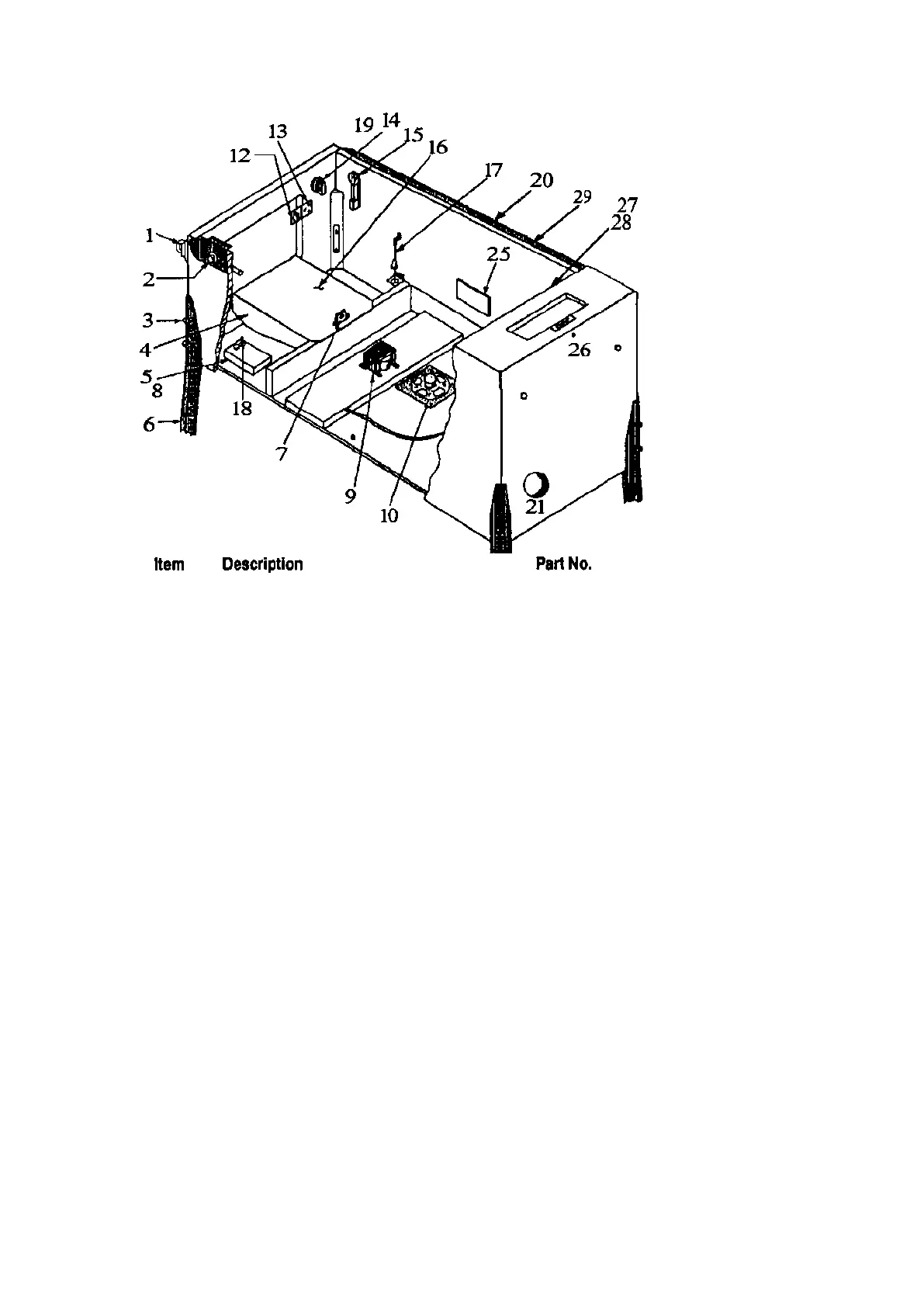

CABINET PARTS ILLUSTRATION
CV Q ’ t in (0 N
CD CO
I Ball-Shooter Assy
Flipper Button
Leg Bolt (Black)
Cash Box Bottom
On/Off Swìtch DP/ST
Leg (Black)
Lock Bracket-Cash Box
Power Input Box Assy
Transformer
10 Speaker-Round (6")
II Side Armor-Right(Not Shown)
12 Memory Protect Swìtch
13 Memory Protect Swìtch Bracket
14 Start Swìtch Assembly
15 Flipper Mlcro Swìtch
16 Cash Box Top
17 Plumb Bob Tilt Assembly
18 Volume Control
19 Playfield Glass (Tempered)
20 Side Armor -Left
21 Recessed cup for Line cord
22 Servlce Switch (Not Shown)
23 Front Moldlng Lockdown Assy.
24 Front Molding -Black (Not Shown)
25 S.S.Flipper P.C.B.
26
Roto Lock Bottom
27
28
29
500-5409-06-04
500-5026-16
231-5000-01
545-5090-00
180-5001-00
535-5020-30
535-5215-00
515-5360-00-10
010-5003-00
031-5000-00
535-5010-31
180-5000-00
535-5225-01
500-5407-06
180-5048-01
535-5013-01
500-5023-00
123-5000-00
660-5001-00
535-5010-32
545-5122-00
180-5012-00
500-5020-00
500-5021-10
520-5033-00
355-5006-01
Rear Plastlc Extrusion for Playfield Glass
Mounting Foam for Extrusion
Plastic Channel (Right & Left)
545-5038-00
626-5004-00
545-5017-00
30
Parts Identification
