DATA PRECISION 938 User Manual

42-5124
MODEL 938

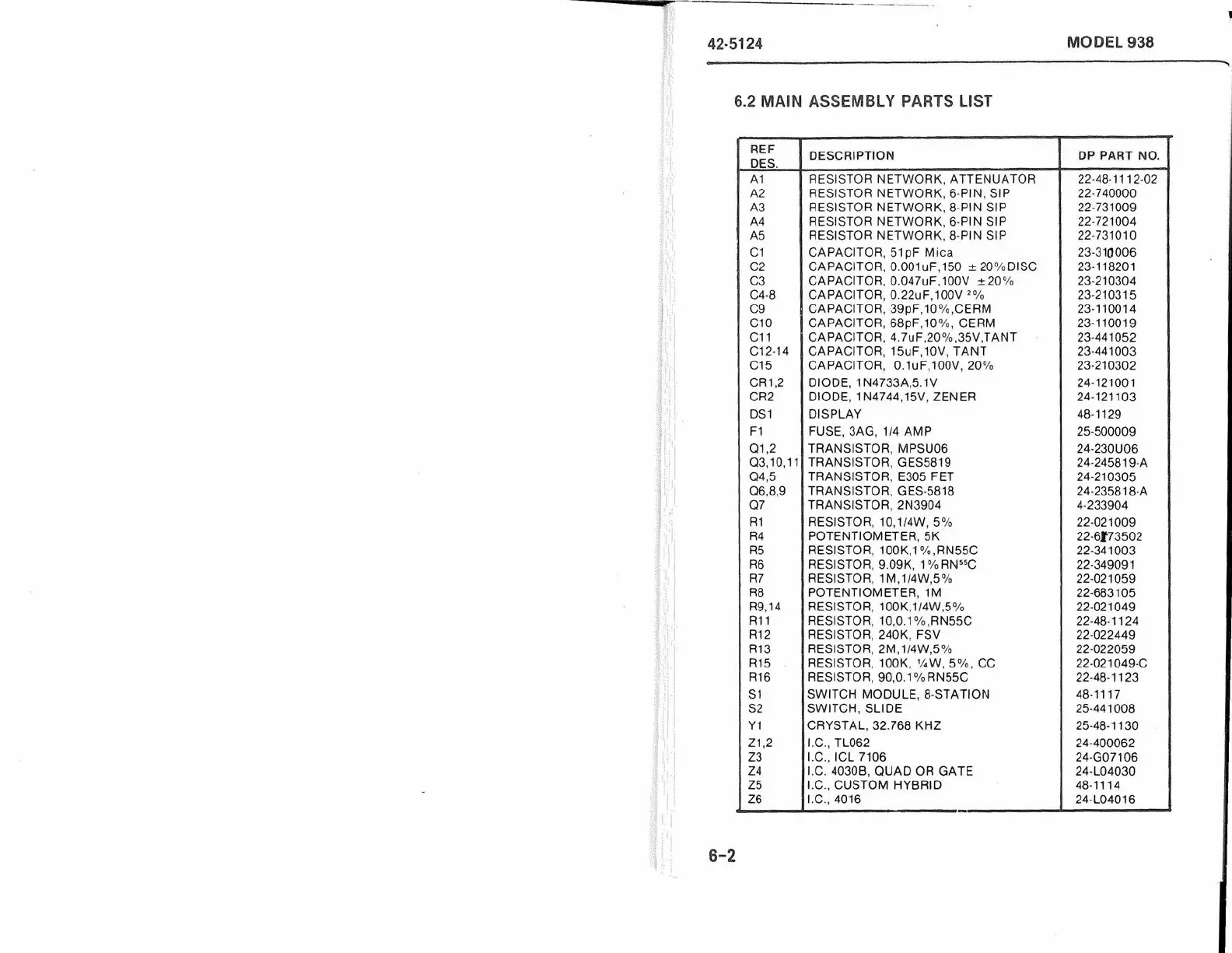

6.2 MAIN ASSEMBLY PARTS LIST
REF
DES.
DESCRIPTION
DP PART NO.
A1 RESISTOR NETWORK, ATTENUATOR
22-48-1112-02
A2
RESISTOR NETWORK, 6-PIN, SIP 22-740000
A3 RESISTOR NETWORK, 8-PIN SIP 22-731009
A4 RESISTOR NETWORK, 6-PIN SIP
22-721004
A5
RESISTOR NETWORK. 8-PIN SIP 22-731010
C1 CAPACITOR, 51pF Mica 23-310006
C2 CAPACITOR, 0.001uF,150 ±20%DISC
23-118201
C3
CAPACITOR, 0.047uF,100V ±20%
23-210304
C4-8 CAPACITOR, 0.22uF,100V 2 %
23-210315
C9
CAPACITOR. 39pF.10%,CERM
23-110014
C10
CAPACITOR, 68pF,10%, CERM 23-110019
C11
CAPACITOR, 4. 7uF, 20%, 35V,TANT
23-441052
C12-14
CAPACITOR, 15uF,10V. TANT
23-441003
C15 CAPACITOR, 0.1uF,100V, 20%
23-210302
CR1,2 DIODE, 1N4733A.5.1V 24-121001
CR2
DIODE, 1N4744.15V, ZENER
24-121103
DS1
DISPLAY
48-1129
F1
FUSE, 3AG, 1/4 AMP
25-500009
Q1,2 TRANSISTOR, MPSU06
24-230U06
Q3,10,1 1
TRANSISTOR, GES5819 24-245819- A
Q4,5 TRANSISTOR. E305 FET
24-210305
Q6,8,9 TRANSISTOR, GES-5818
24-235818- A
Q7 TRANSISTOR, 2N3904 4-233904
R1 RESISTOR, 10.1/4W, 5%
22-021009
R4
POTENTIOMETER. 5K
22-6f73502
R5 RESISTOR, 100K.1 %,RN55C
22-341003
R6 RESISTOR, 9.09K, 1%RN 55 C 22-349091
R7
RESISTOR. 1M,1/4W.5% 22-021059
R8 POTENTIOMETER, 1M
22-683105
R9.14
RESISTOR, 100K,1/4W,5% 22-021049
R11
RESISTOR, 10,0.1 %,RN55C
22-48-1124
R12
RESISTOR. 240K, FSV 22-022449
R13 RESISTOR, 2M,1/4W,5%
22-022059
R15 RESISTOR, 100K, %W, 5%, CC 22-021049-C
R16 RESISTOR, 90,0.1 %RN55C
22-48-1123
S1
SWITCH MODULE, 8-STATION 48-1117
S2
SWITCH, SLIDE
25-441008
Y1
CRYSTAL, 32.768 KHZ
25-48-1130
Z1,2 I.C., TL062 24-400062
Z3 I.C., ICL 7106 24-G07106
Z4
I.C. 4030B, QUAD OR GATE 24-L04030
Z5 I.C., CUSTOM HYBRID 48-1114
Z6 I.C., 4016
24-L04016
6-2
