42-5124
MODEL
938
Figure
3-1.
Model
938
Shipping
Configuration
3.3
INSTALLING
(OR
REPLACING)
THE
BATTERY

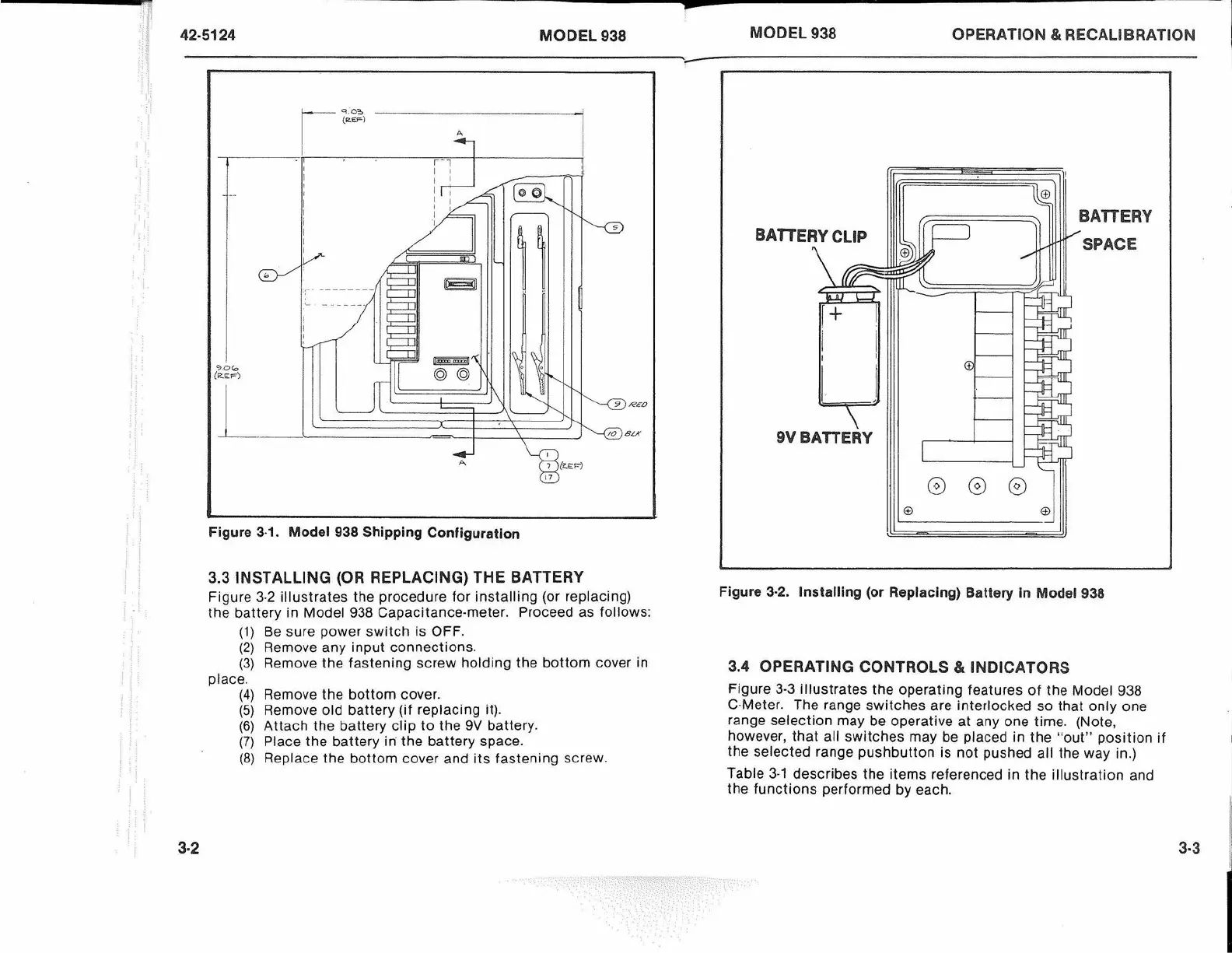

Figure
3-2
illustrates
the
procedure
for
installing
(or
replacing)
the
battery
in
Model
938
Capacitance-meter.
Proceed
as
follows:
(1)
Be
sure
power
switch
is
OFF.
(2)
Remove
any
input
connections.
(3)
Remove
the
fastening
screw
holding
the
bottom
cover
in
place.
(4)
Remove
the
bottom
cover.
(5)
Remove
old
battery
(if
replacing
it).
(6)
Attach
the
battery
clip
to
the
9V
battery.
(7)
Place
the
battery
in
the
battery
space.
(8)
Replace
the
bottom
cover
and
its
fastening
screw.
3-2
MODEL
938
OPERATION
&
RECALIBRATION
Figure
3-2.
Installing
(or
Replacing)
Battery
in
Model
938
3.4
OPERATING
CONTROLS
&
INDICATORS
Figure
3-3
illustrates
the
operating
features
of
the
Model
938
C-Meter.
The
range
switches
are
interlocked
so
that
only
one
range
selection
may
be
operative
at
any
one
time.
(Note,
however,
that
all
switches
may
be
placed
in
the
out
position
if
the
selected
range
pushbutton
is
not
pushed
all
the
way
in.)
Table
3-1
describes
the
items
referenced
in
the
illustration
and
the
functions
performed
by
each.
3-3
