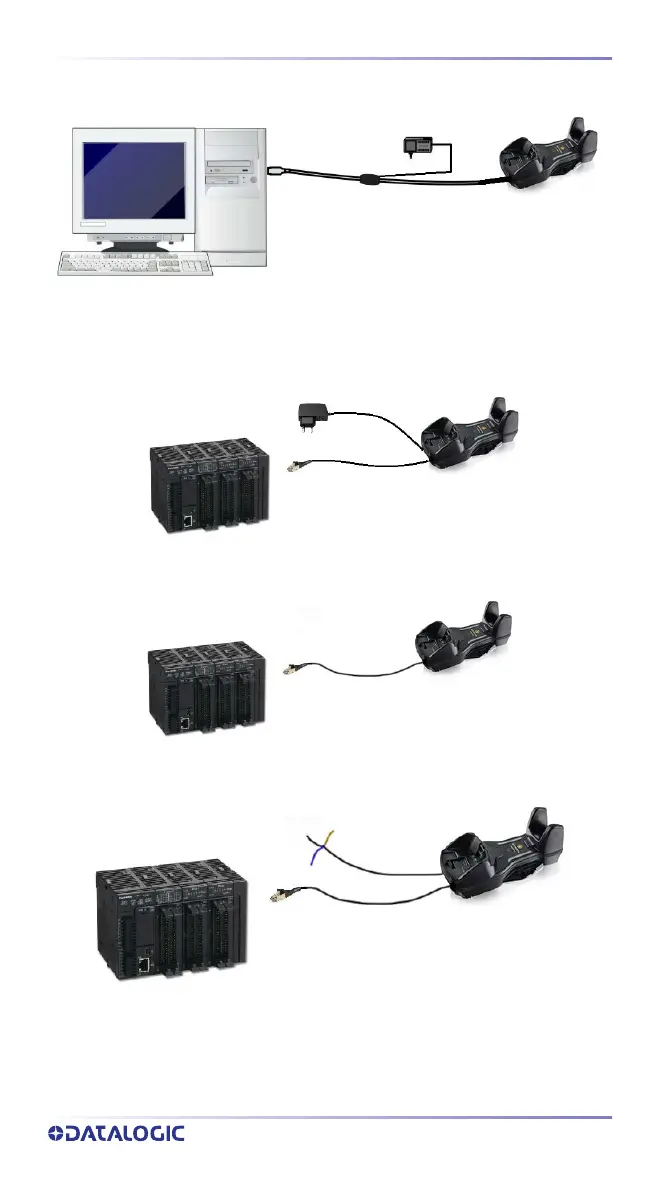

System Connections
QUICK REFERENCE GUIDE
13
ETHERNET
BC9631
BC9680
BC9681
POE connection
BC9681
External Pow
er Supply
Brown: +10/30 VDC
Blue: GND
Black: Not Used
20
22
