Datalogic SR23 User Manual

141
CATALOG | Photoelectric Sensors
Power supply
10 … 30 Vdc (reverse polarity protection)
Ripple
2 Vpp max.
Consumption (output current excluded)
30 mA max.
Light emission
IR LED 850 nm
Setting
SET push-button
Indicators
yellow OUTPUT LED
green READY LED
Output
PNP or NPN
Output current
100 mA max.
Saturation voltage
2 V max.
Slot width
5 mm
Slot depth
50 mm
Minimum label width
0,5...2 mm
Minimum space between labels
0,5...2 mm
Speed of the conveyor during setting procedure
20 m/min (30 cm/s) max.
Response time
40 µs max.
Switching frequency
12 kHz max.
Connection
M8 4-pole connector, 2 m cable
Dielectric strength
500 Vac, 1 min between electronics and housing
Insulating resistance
> 20 MΩ, 500 Vdc between electronics and housing
Mechanical protection
IP65
Ambient light rejection
according to EN 60947-5-2
Vibrations
0,5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Shock resistance
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
Housing material
Aluminum (Zama)
Cover material
PBT
Lens material
PC
Operating temperature
-20 … 55°C
Storage temperature
-20 … 70°C
Weight
85 g cable vers., 46 g M8 conn. vers.
TECHNICAL DATA

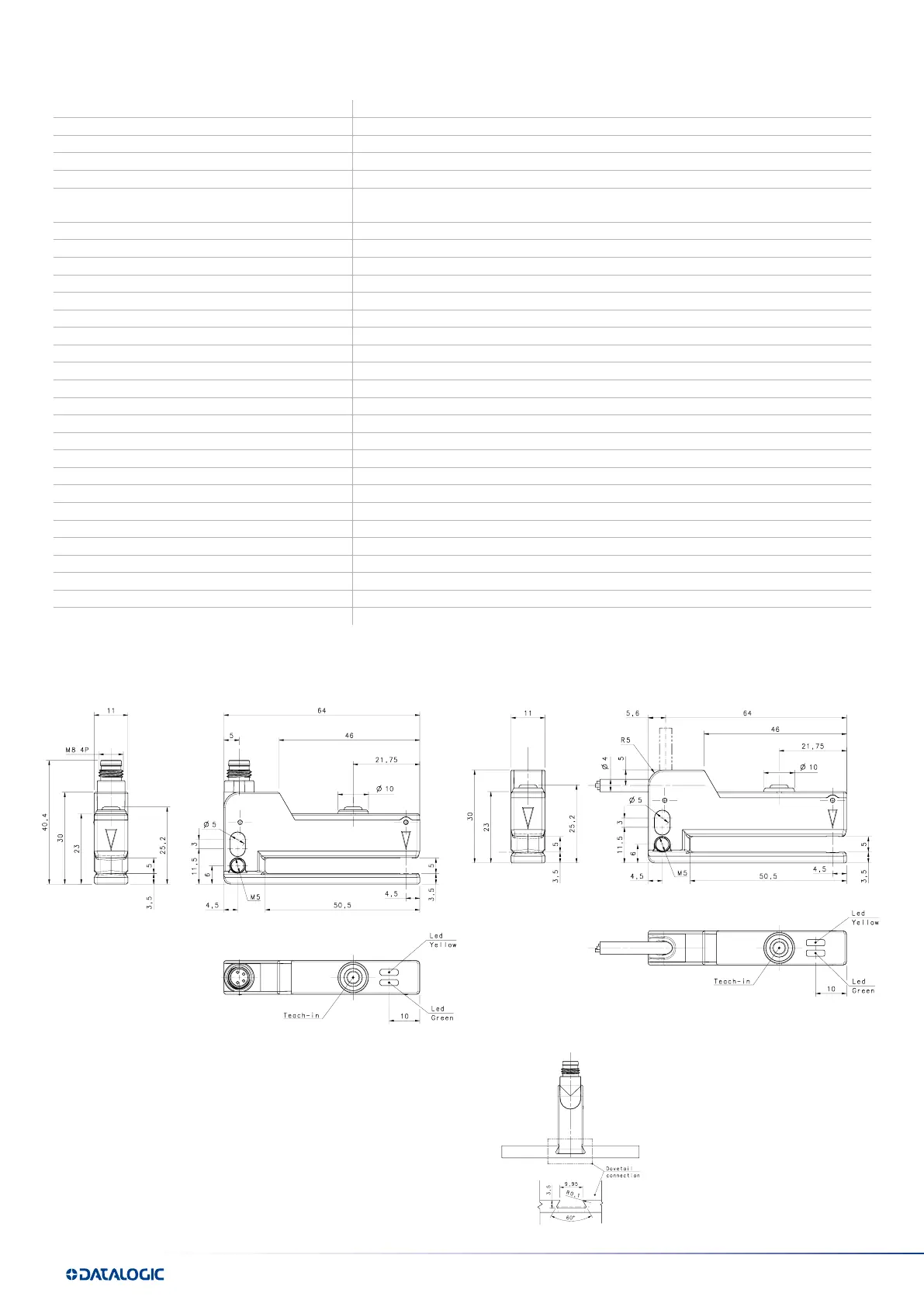

DIMENSIONS
DOVETAIL GUIDE
MOUNTING
