Connection type 2(Dual SIM)
Thi

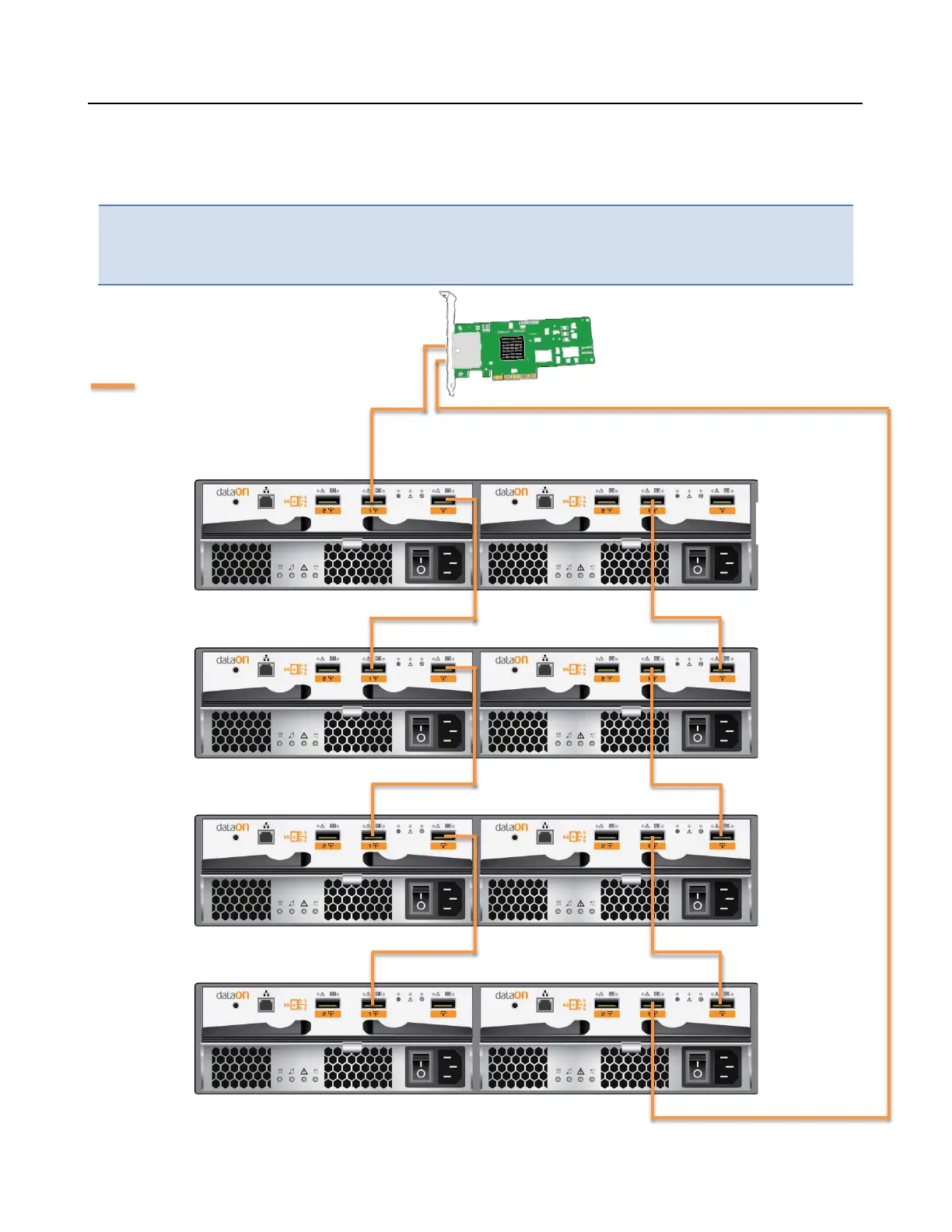

s illustration shows one host with a HBA/RAID card connected to four DNS-1640 with dual SIM.
Important:
Not All HBA/RAID card support this type of connection please refers to DNS-1640
support matrix reference for complete listing of supported dual port HBA/RAID
cards.
SFF-8088 to SFF-8088 SAS Cable
RAID/HBA CARD
1
st
DNS-1640
2
nd
DNS-1640
3
rd
DNS-1640
4
th
DNS-1640
