DNS-1640 User Manual
13
Setting up DNS-1640 System
Connection type 1(Single SIM)

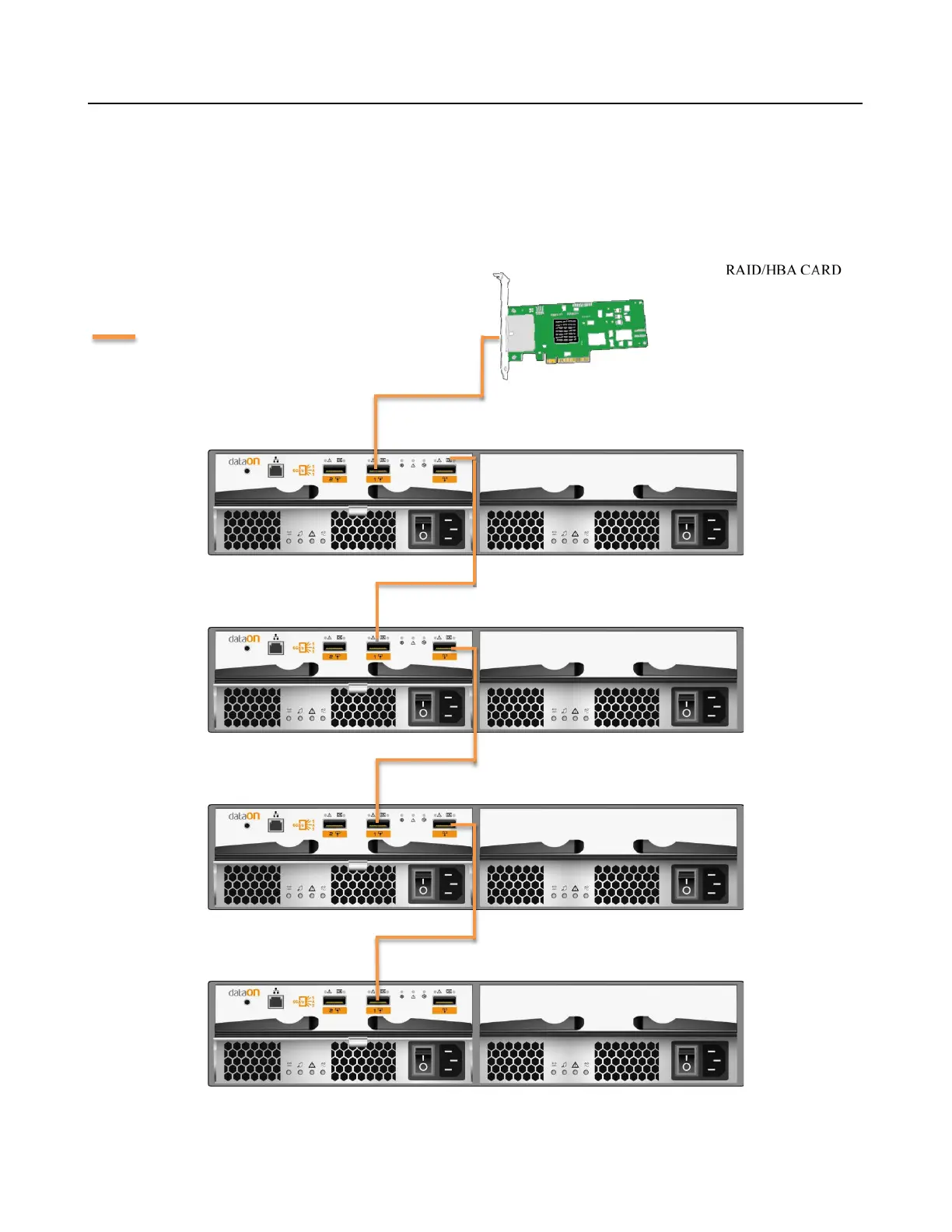

This illustration shows one host with a HBA/RAID card connected to four DNS-1640 with single SIM.
SFF-8088 to SFF-8088 SAS Cable
1
st
DNS-1640
2
nd
DNS-1640
3
rd
DNS-1640
4
rh
DNS-1640
