DataON DNS-1640 - Disk Drives Front LED and Tray

DNS-1640 User Manual
7
Disk Drives Front LED and Tray
No Component Color Description
1 HDD Activity LED Solid Green SAS HDD is ready (SATA will be blank)
Blinking Green Spin up /Accessing
2 HDD status Blank HDD Ok
Blinking Blue Identify HDD
Solid Orange HDD fault
Blinking Or-
ange & Blue
RAID Rebuilt
Blinking Blue HDD is ready to remove (HDD Activity LED will be blank)

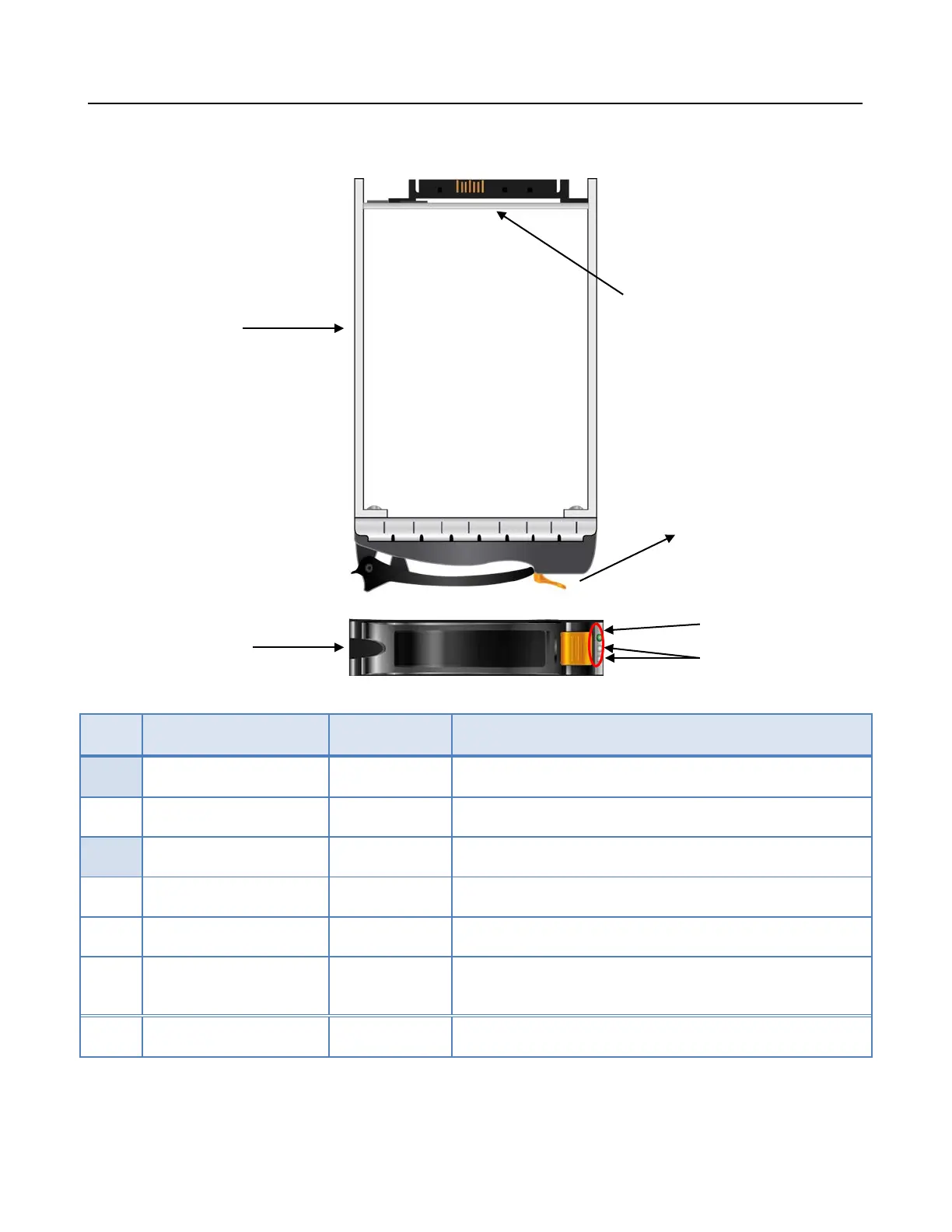

HDD Tray
1
2
Optional DNS-BJMB
9252 6Gb/s SAS
Interposer for 2.5”
SATA SSD/HDD
Disk Tray Handle
Release button
