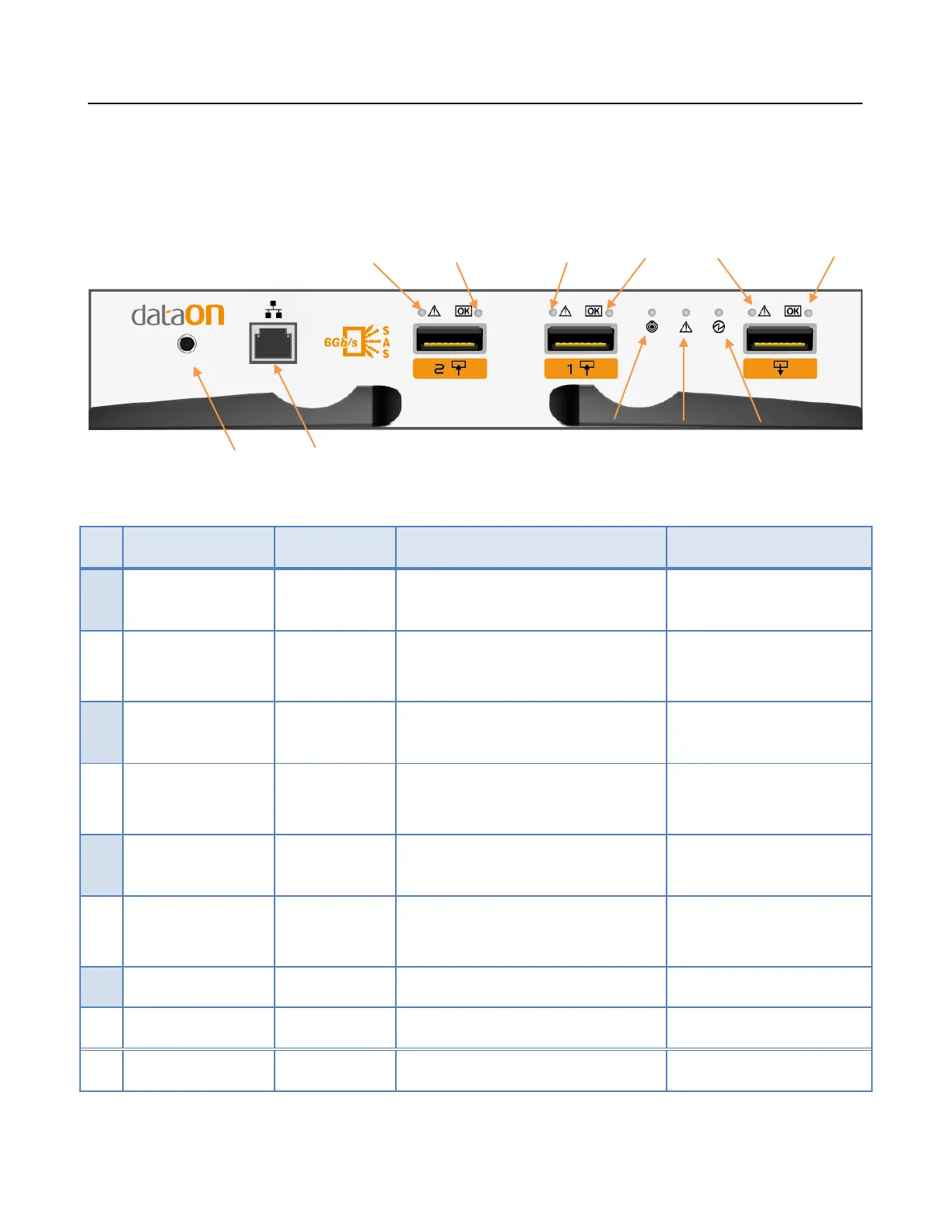

DNS-1640 SIM Board LED Description
LED ON SIM Board
No Component Color Lights On Lights Off
1 SAS #2 Fault Amber PHY connection cannot estab-
lished correctly
No error had occurred
2 SAS #2 Active Green PHY connection established
correctly
No connection
3 SAS #1 Fault Amber PHY connection cannot estab-
lished correctly
No error had occurred
4 SAS #1 Active Green PHY connection established
correctly
No connection
5 SAS #3 Fault Amber PHY connection cannot estab-
lished correctly
No error had occurred
6 SAS #3 Active Green PHY connection established
correctly
No connection
7
Locate LED
Flashing Blue Identifies SIM Normal
8 SIM Fault Amber Fault exist Normal
9 SIM Power Green Power On Power Off
1
3
2
4
6
5
Consoles for factory use only 7
8
9
