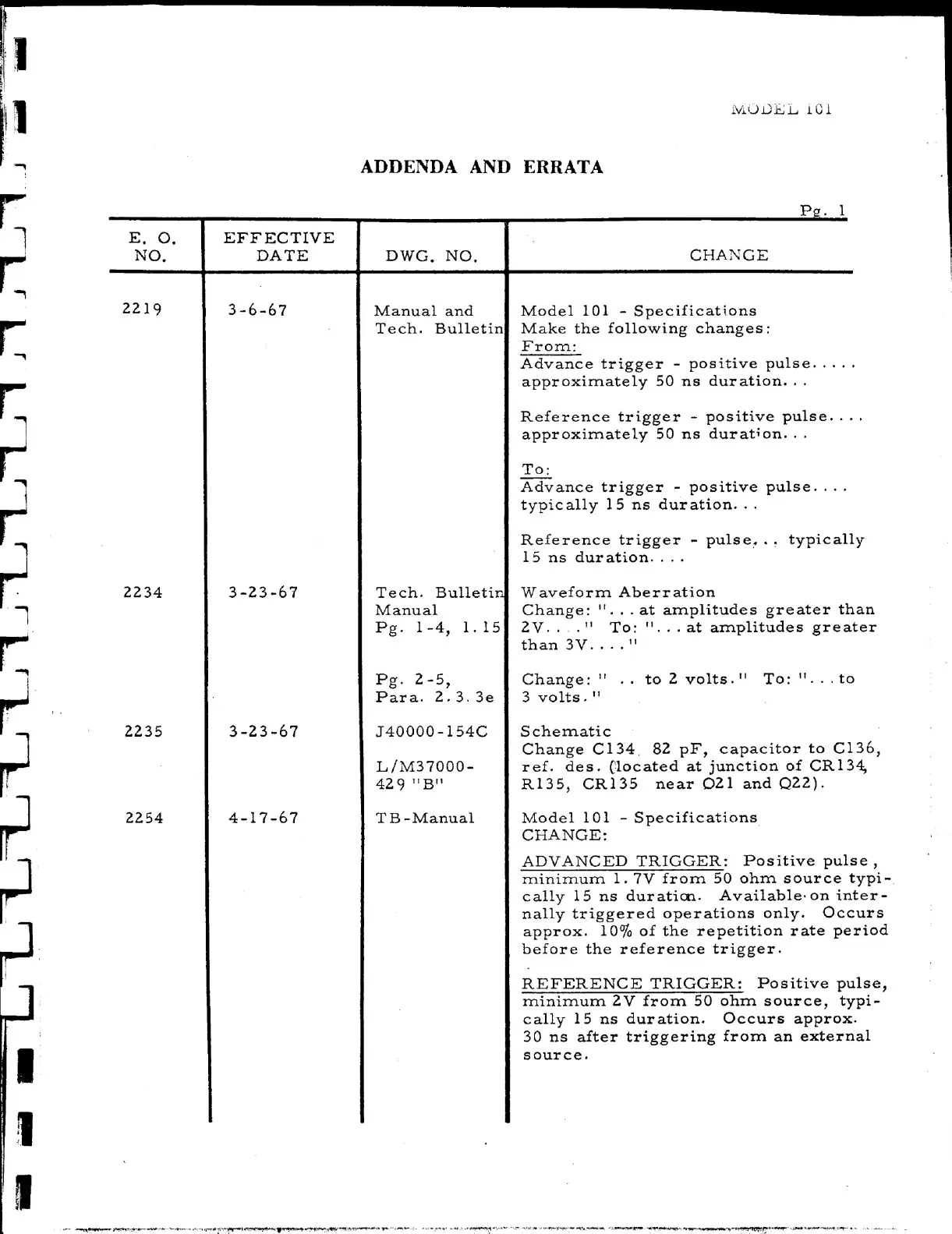

ADDENDA AND ERRATA
Pg. 1
E. O EFFECTIVE
NO. DATE DWG. NO. CHANGE
l
2219 3—6-67 Manual and Model 101 - Specifications
Tech. Bulletin Make the following changes:
From:
Advance trigger - positive pulse .....
approximately 50 ns duration. . .
Reference trigger - positive pulse. . ..
approximately 50 ns duration. . .
To:
Advance trigger - positive pulse. . . .
typically 15 ms duration. . .
Reference trigger - pulse. .. typically
15 ns duration. . . .
22.34 3-23-67 Tech. Bulletin Waveform Aberration
Manual Change: ". . . at amplitudes greater than
Pg. 1-4, 1.15 2V.. ." To: ". i . at amplitudes greater
than 3V. . . . "
Pg. 2-5, Change: " . to 2 volts." To: ". . .to
Para. 2,3.3e 3 volts."
2235 3-23—67 J4000O-154C Schematic
Change C134 82 pF, capacitor to C136,
L/M37000- ref, des. (located at junction of CR134,
429 "B" R135, CR135 near 021 and 022).
2.254 4—17—67 TB-Manual Model 101 — Specifications
CHANGE:
ADVANCED TRIGGER: Positive pulse ,
minimum 1. 7V from 50 ohm source typi—
cally 15 ms duration. Available on inter-
nally triggered operations only. Occurs
approx. 10% of the repetition rate period
before the reference trigger.
REFERENCE TRIGGER: Positive pulse,
minimum 2V from 50 ohm source, typi—
cally 15 ns duration. Occurs approx.
30 ns after triggering from an external
source.
