MODEL 101

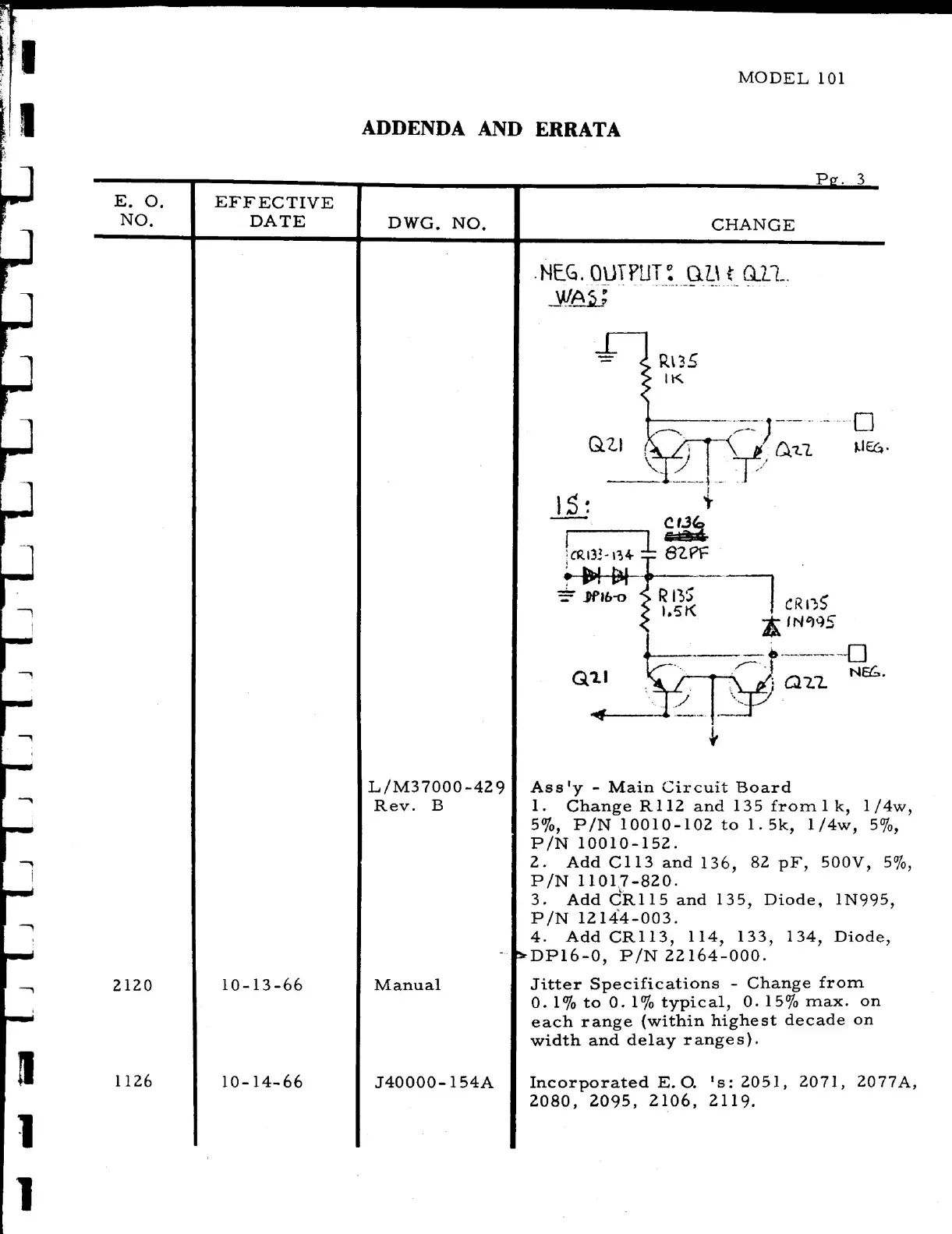

ADDENDA AND ERRATA
Pg. 3
EFFECTIVE
DATE
DWG. NO.
CHANGE
2.120
1126
10—13—66
10-14-66
L/M37000—429
Rev. B
Manual
J40000-154A
NEG. Oprvurgwgu t cm,
141.1:
Ass'y — Main Circuit Board
1. Change R112 and 135 fromlk, 1/4w,
5%, P/N 10010-102 to 1.5k, 1/4w, 5%,
PIN 10010-152.
2. Add C113 and 136, 82 pF, 500v, 5%,
P/N 11013—820.
3. Add CR115 and 135, Diode, 1N995,
P/N 12144—003.
4. Add CR113, 114, 133, 134, Diode,
DP16-0, P/N 22164-000.
Jitter Specifications — Change from
0.1% to 0.1% typical, 0.15% max. on
each range (Within highest decade on
width and delay ranges).
Incorporated EC. ‘5: 2051, 2071, 2077A,
2080, 2095, 2106, 2119.
