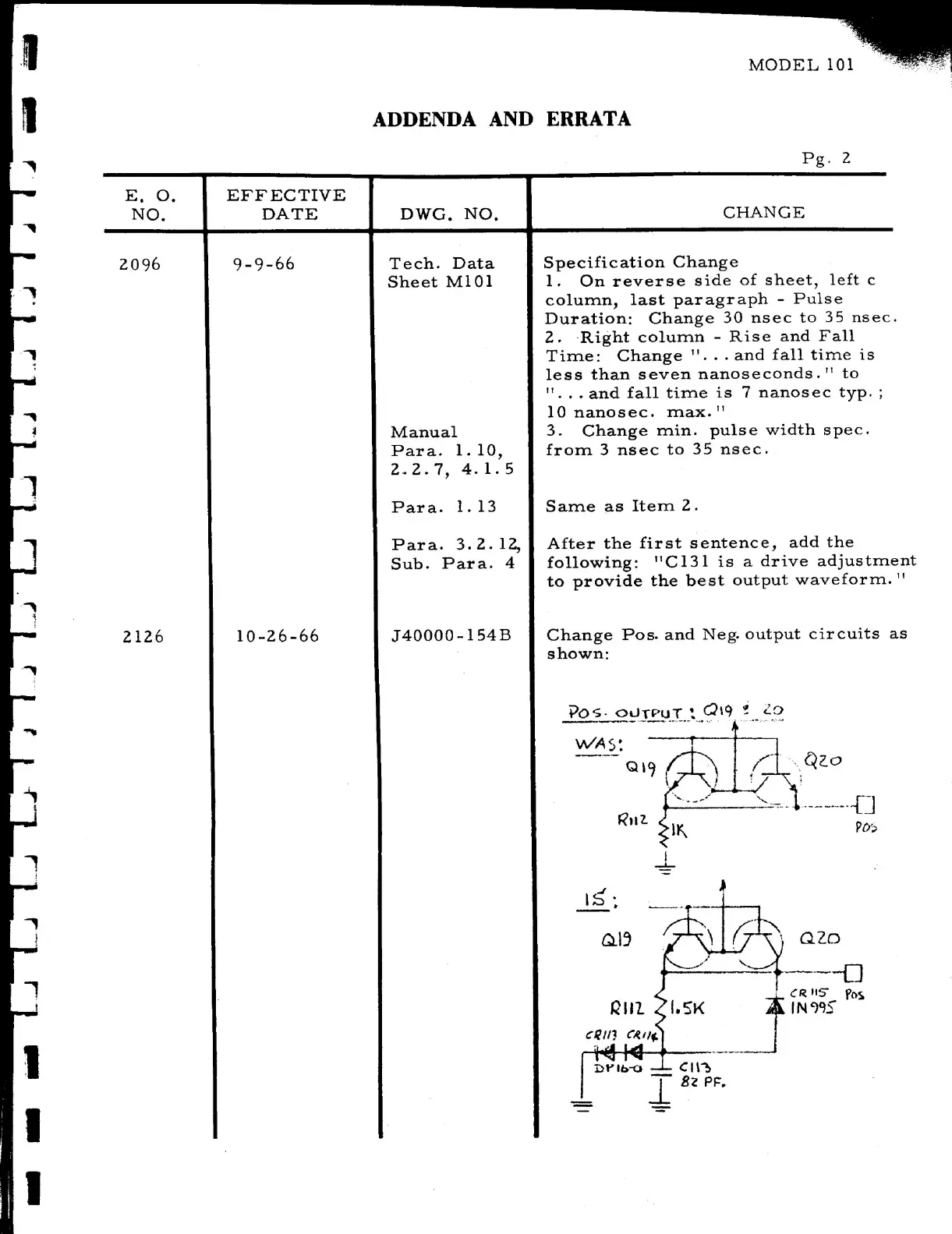

MODEL 101
ADDENDA AND ERRATA
Pg. 2
E. O. EFFECTIVE
NO DATE DWG. NO. CHANGE
l
2096 9-9-66 Tech. Data Specification Change
Sheet M101 1. On reverse side of sheet, left c
column, last paragraph — Pulse
Duration: Change 30 nsec to 35 nsec.
2. Right column — Rise and Fall
Time: Change ". . .and fall time is
less than seven nanoseconds. " to
". . . and fall time is 7 nanosec typ.;
I 10 nanosec. max."
Manual
3.
Change
min.
pu15e
width
spec.
Para. 1.10, from 3 nsec to 35 nsec.
2. Z. 7, 4. 1. 5
Para. 1.13 Same as Item 2.
Para. 3. 2.12, After the first sentence, add the
Sub.
Para.
4
following:
"C131
is
a
drive
adjustment
to provide the best output waveform.“
2126
10-26-66
J40000-154B
Change
P03.
and
Neg.
output
circuits
as
shown:
32:99:51.1; 99 4.0,
ca "5 Pas
IN 995
