If a simplex radio network is used (i.e. a single frequency for
all stations), we recommend that the master Integra-TR be set
to “master”, the remotes to “remote” and all units to
“selective” data delivery. This will prevent remote stations
from hearing each other's responses.
For full duplex configuration, set the receiving unit Rx/Tx
Mode to Rx Only (using the Field Programming Software).
Set the transmitting unit mode to Tx Only

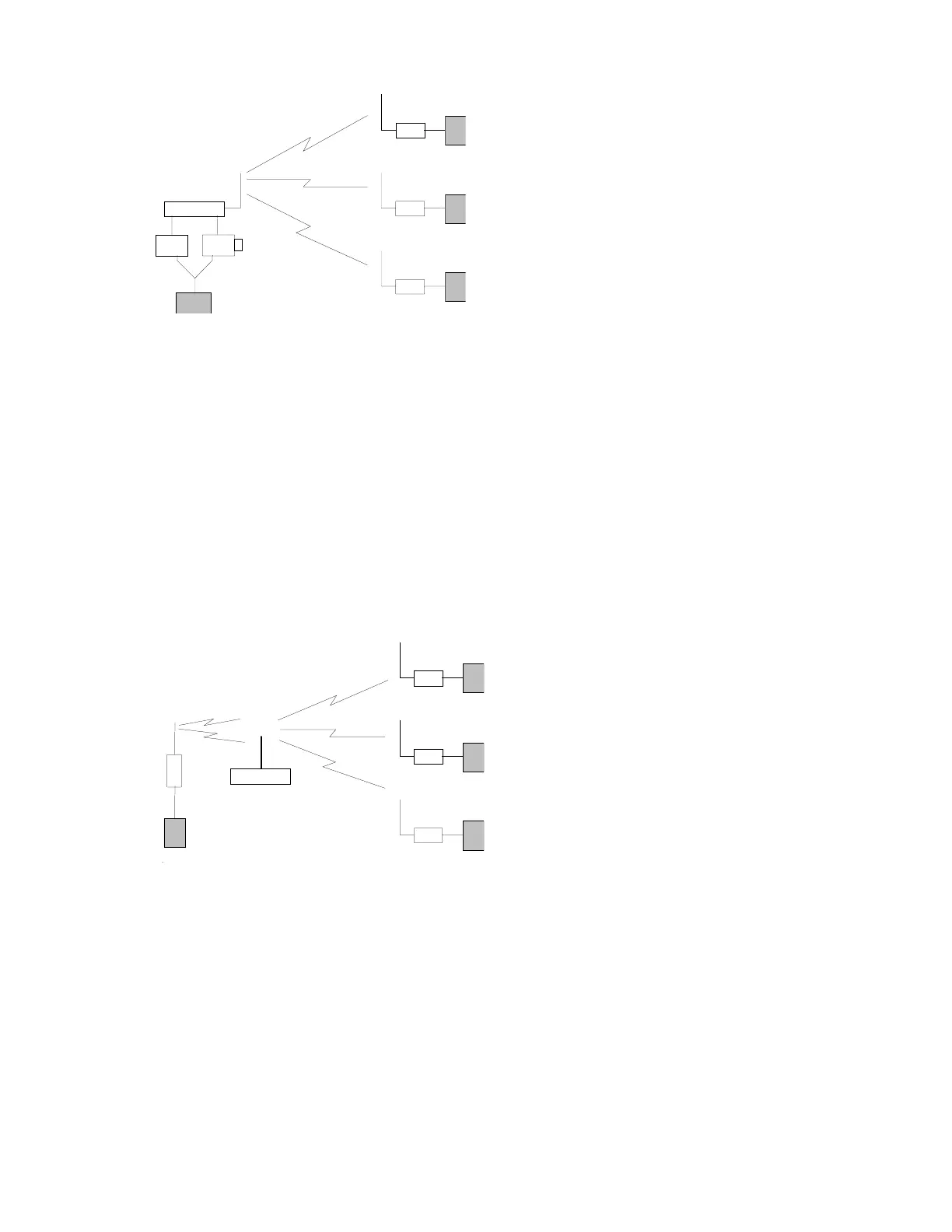

Figure 1-6 Point-Multipoint System (Full-duplex)
Figure 1-7 Point-Multipoint System (Full-duplex Repeater)
