10
ON/OFF GPI trigger interface
• For external wire remote MP-6000 “Record-Pause”
function.
• Switch to select by Level Trigger of Pulse Trigger.
RS-232 Remote Control interface
• 9-pin serial port standard RS-232 interface
• With additional PC remote software to remote control
MP-6000.

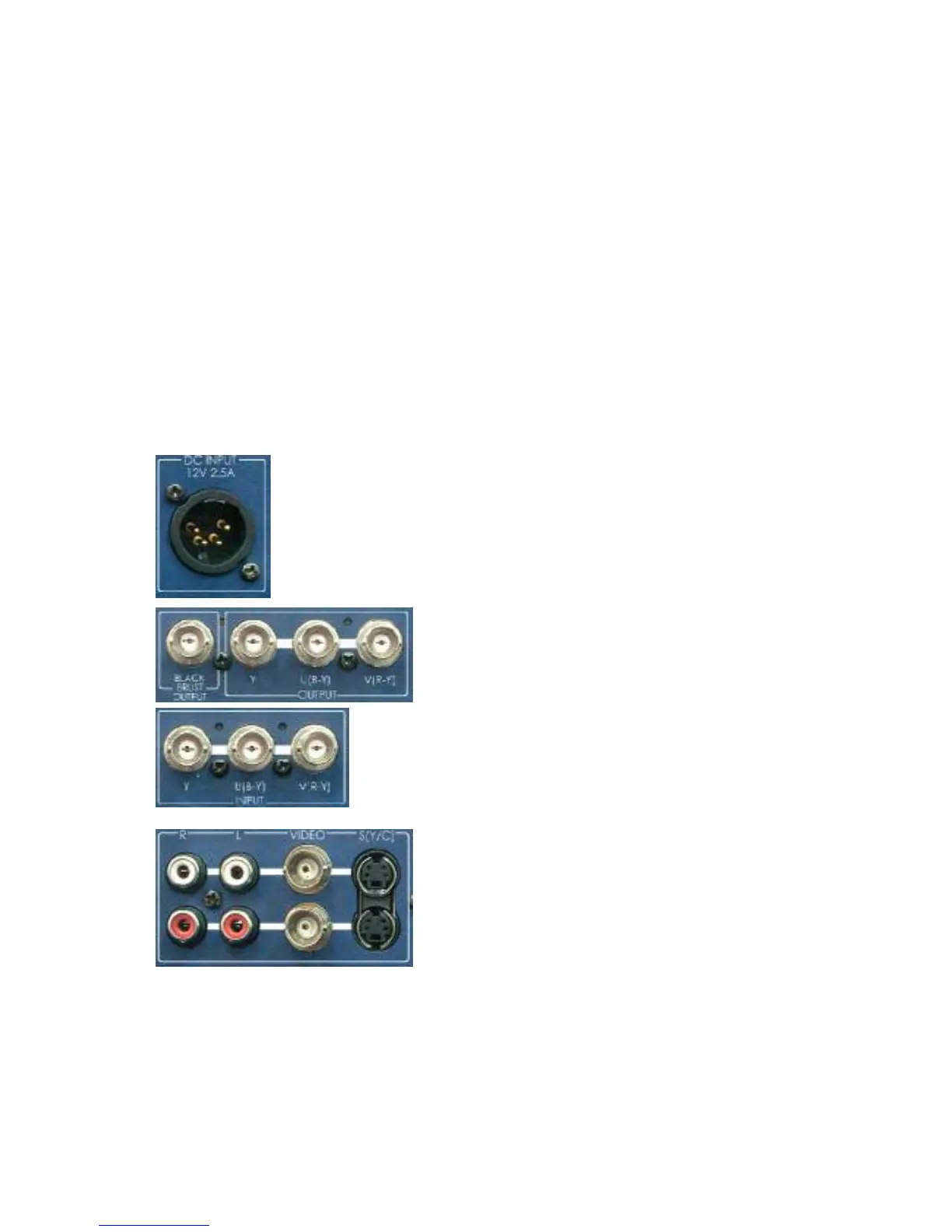

4-Pin XLR locked 12Volt Power connector
Connecting 12VDC 2.5A input from an external DC
adaptor.
Component Video Y, U, V with Black Burst
output terminal for video monitoring
Component Y.U.V. video input terminal
*. Selectable RGB Interface optional
Composite Video Input and Output
S-Video (Y/C) 4-Pin mini Din Input and output
Two channels Unbalanced L/R Audio input and
Output
