Datavideo PD-2A - Rear Panel Connections; DC Output 12 V;10 A

POWER CENTER
6

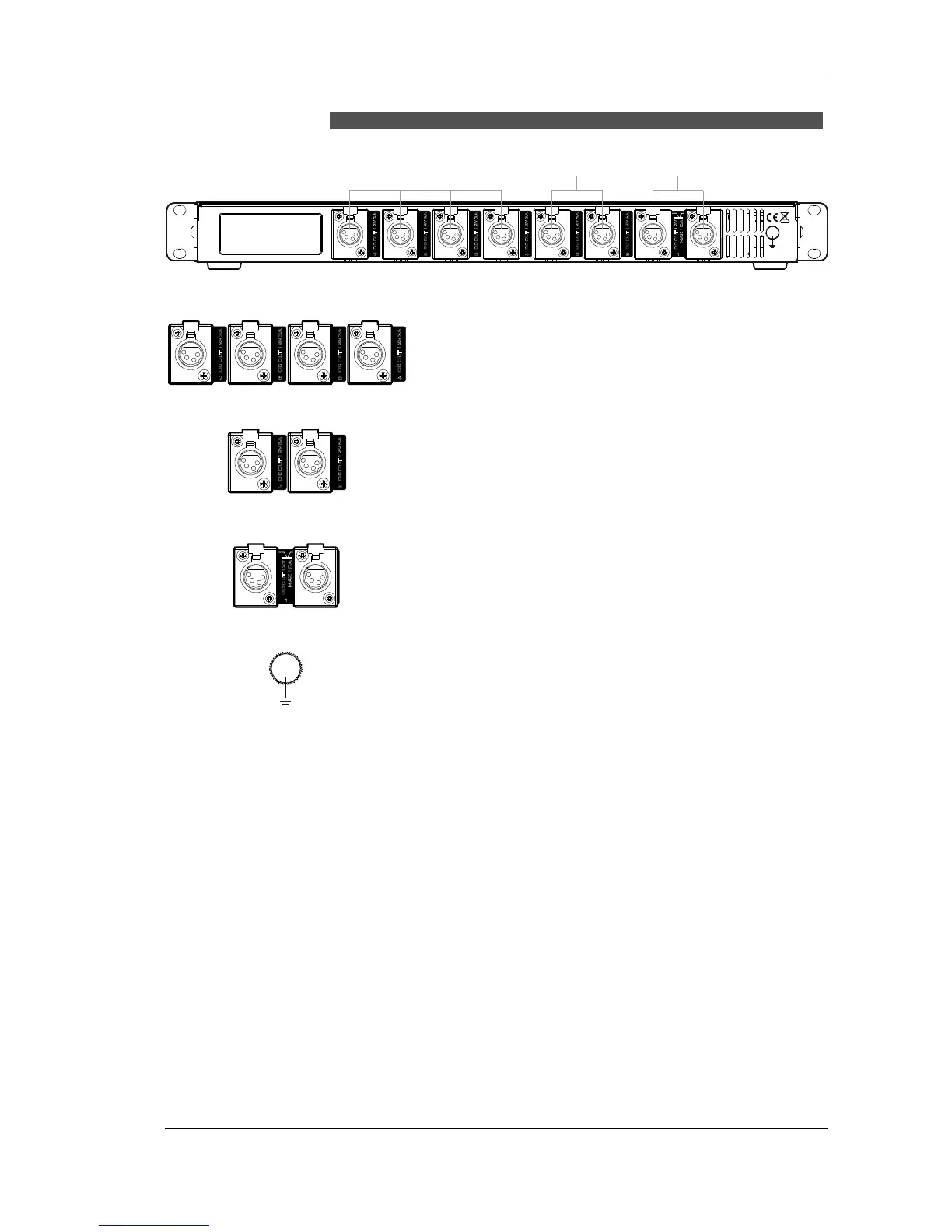

Rear Panel
DC Out 12V 3A
4 x 12V 3A DC Output via XLR In-Line Sockets
DC Out 12V 5A
2 x 12V 5A DC Output via XLR In-Line Sockets
DC Out 12V 10A
2 x MAX 12V 10A DC Output via XLR In-Line Sockets
These two DC outputs correspond to front panel LED indicator 1,
and can supply a maximum of 12V 10A DC across both outputs, I.e.:
Left 1 output supplies 7A, Right 1 output supplies 3A .
Ground Terminal
When connecting this unit to any other component, make sure that
it is properly grounded by connecting this terminal to an appropriate
point. When connecting, use the socket and be sure to use wire with
a cross-sectional area of at least 1.0 mm² .
DC OUT 12V 3A DC OUT 12V 3A DC OUT 12V 3A DC OUT 12V 3A DC OUT 12V 5A DC OUT 12V 5A
7 6 5 4 3 2 1
MAX 10A
DC OUT 12V
DC OUT 12V 3A DC OUT 12V 3A DC OUT 12V 3A DC OUT 12V 3A
7 6 5 4
DC OUT 12V 5A DC OUT 12V 5A
3 2
1
MAX 10A
DC OUT 12V
XLR DC 12V/3A
Output
XLR DC 12V/ 10A MAX
Output
XLR DC 12V/5A
Output
