Datavideo TLM-170LM User Manual

7

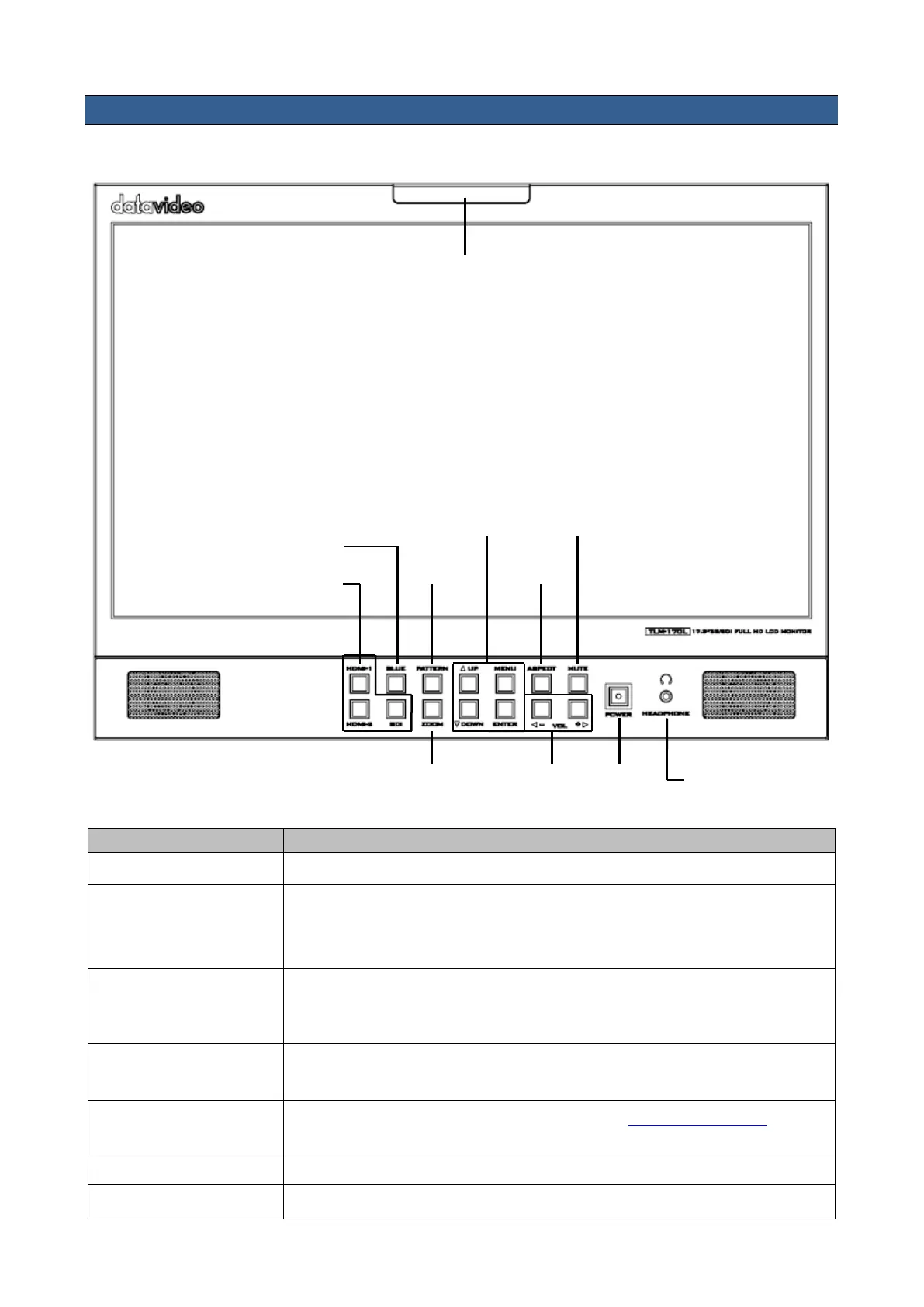

2. Connections and Controls
Front Panel
Buttons
Descriptions
Bi-Colour Tally Light Can be used to indicate Live (Red).
Source Select Buttons
Select the type of input you are using. The available interfaces are SDI
and HDMI. The active input will be indicated by a red LED on the
Source Button.
BLUE
Press this button to eliminate the red and green component of input
signals. Only the blue component of an input is displayed on the
screen.
Pattern Button
When pressed displays internally generated SMPTE 75% Colour Bars.
Press again to return to the previously selected video input.
Menu Navigation
Buttons
Display and navigate the set up menus - See OSD Menu Section for
more details.
Aspect Ratio Button
Sets the Aspect Ratio to 16:9 / 4:3
Mute Button Mutes the audio from the internal speakers or headphone socket.
Bi-Color Tally Light
Source Select
Buttons
Blue Only Button
Pattern
Button
Menu
Navigation
Buttons
Aspect
Ratio
Button
Mute
Button
Headphone
Socket
Volume
Control
Zoom
Button
Power
Button
