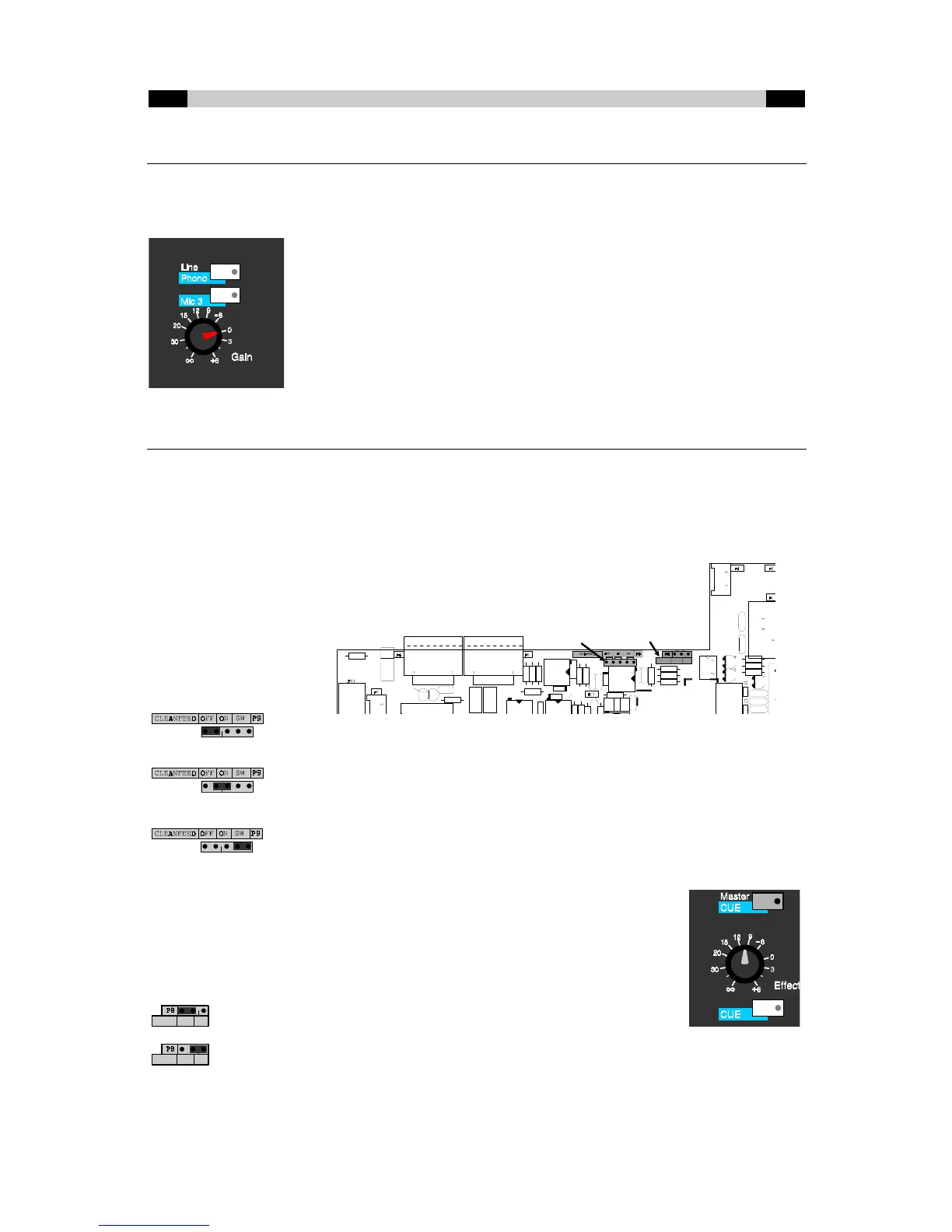

8 Dateq LPM 7.3 Manual Operation EN
Combined Turntable-/ line-/ microphone channels (3, 4 and 5)
These three stereo channels have three inputs (phono for turntables, line for equipment like CD-
players and MD-recorders and mic for a microphone input), Gain control, 3-way tone control,
balance and pre-fader listening.
DISC / LINE Input selector. Normally the line input is selected. When
pushed the phono input is selected. The LED is an
overload indicator.
MIC Input selector. When pushed the MIC input will be
activated.
GAIN Determines the pre-adjustment of the volume for the
microphone as well as both stereo disc/line inputs.
Effect sends/ Cleanfeed and phantom jumpers
Each channel has an internal jumper to enable or disable the channel to send it’s signal to the
effect-send output. It’s also possible to send the signal to the effect output only when the
microphone input is active.
To adjust the settings the mixer has to be opened. Each module has two jumpers. The jumper to
control the cleanfeed settings can be found near to the band-cable. See the drawing.
The effect-send output is post-fader: the volume is dependent of the fader.
The output of the effect-generator can be connected to the effect-return input.
This return input can also be used as an extra input.
Each microphone input has a switchable phantom-power. This can be done
with the jumper near to the connectorboard. See the drawing above.
C003 C004
C26
C005
C006
C27
C28
6
C23
Z2 Z1
U102
U101
C007
C002 C001
R
103
05
R002
R001
R007
R006
R005
R004
R003
R25
R32
R33
R34 R35
R31
R13
2 3
R30
R24
06
+
-
B001
U001
U3
Q1
Q2
D1
D2
D3
CE1
CE
CE
CE2
CE
MC1
ON
OFF
+48V
Cleanfeed jumper Phantom jumper
ON
OFF
+48V
ON
OFF
+48V
Cleanfeed off: The channels signal is not send to the effect output. This is the default setting.
Cleanfeed on: The channels signal is send to the effect-send output. This can be used w
h
the effect-send is used as a cleanfeed. The signal of this channel is send to the telephon
e
hybrid. The cleanfeed of the channel to which the hybrid is connected must be set to off.
Cleanfeed sw: The channels signal is send to the effect output only when the microphone input
is selected. This can be used when an effect-generator (echo etc.) is connected to the effect-
send output.
Phantompower is switched off. This is the default setting.
Phantompower is active.
