EN Operation Dateq LPM 7.3 Manual 7

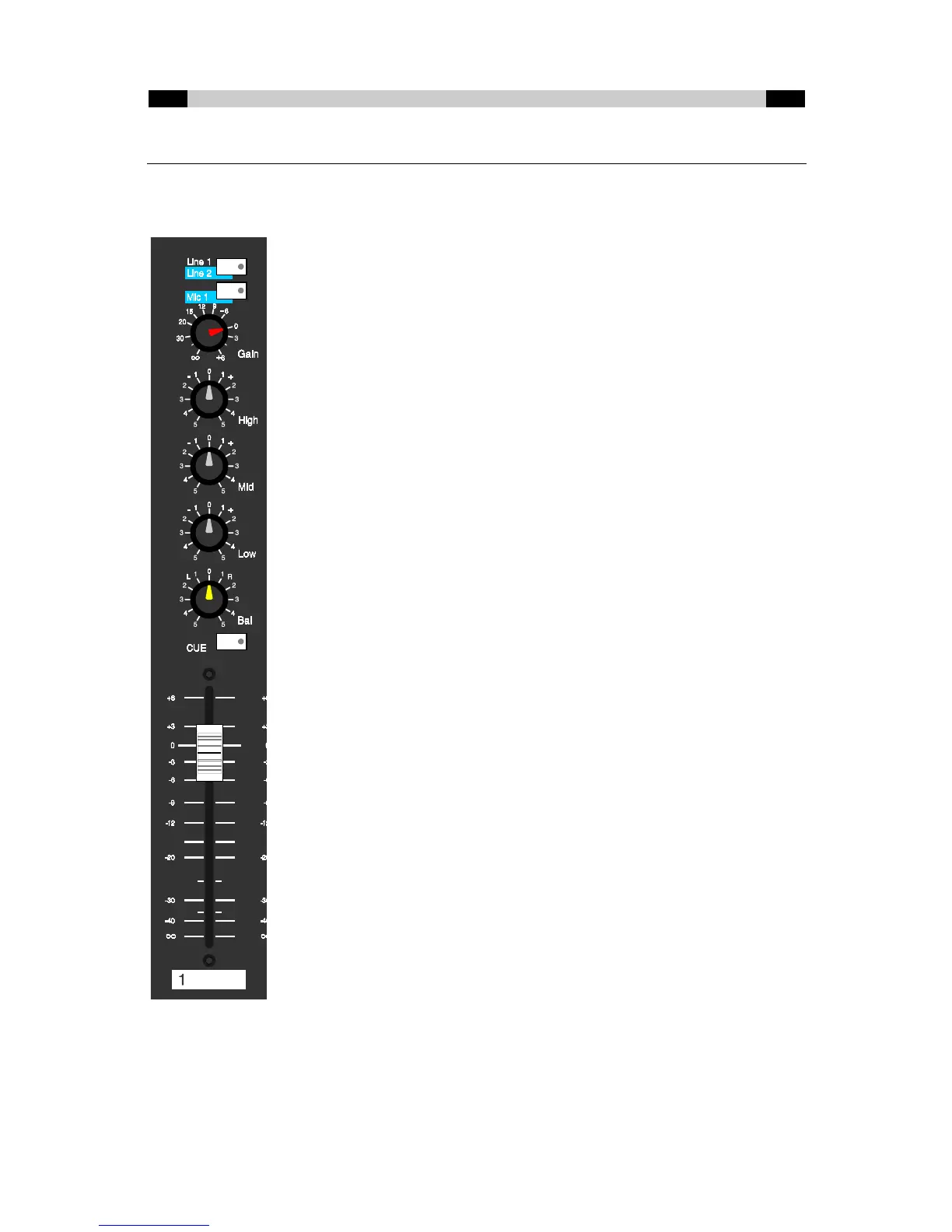

Microphone /line channels (1, 2, 6 and 7)
These channels are equipped with a double input selector which makes it possible to easily switch
between 2 line inputs (such as CD-players, MD recorders) and a microphone source, as well as a
Gain control, 3-way tone control, balance and pre-fader listening.
Line 1 / Line2 Input selector. When pushed line 2 is selected. The LED will
light up when the audio-level somewhere in this module is too
high. Because of the high audio level the signal will be
distorted.
MIC Input selector. When pushed (activated LED) the MIC input is
activated.
GAIN Determines the pre-adjustment of the volume for the
microphone as well as both stereo line inputs.
HIGH High tone control.
MID Mid tone control.
LOW Low tone control.
BALANCE Adjusts the balance between the left and right audio channel.
PFL Switches pre-fader listening on and off. When this function is
active, the headphone will switch to PFL and the input signal
of one or more inputs can be heard even though the fader is
closed. A LED will indicate whether the PFL-function on this
channel is active. When no PFL has been selected on any
channel, the master signal can be heard via PFL.
FADER 100 mm fader through which the volume of this channel can
be determined precisely.
