Dateq XTC Manual Connections
EN

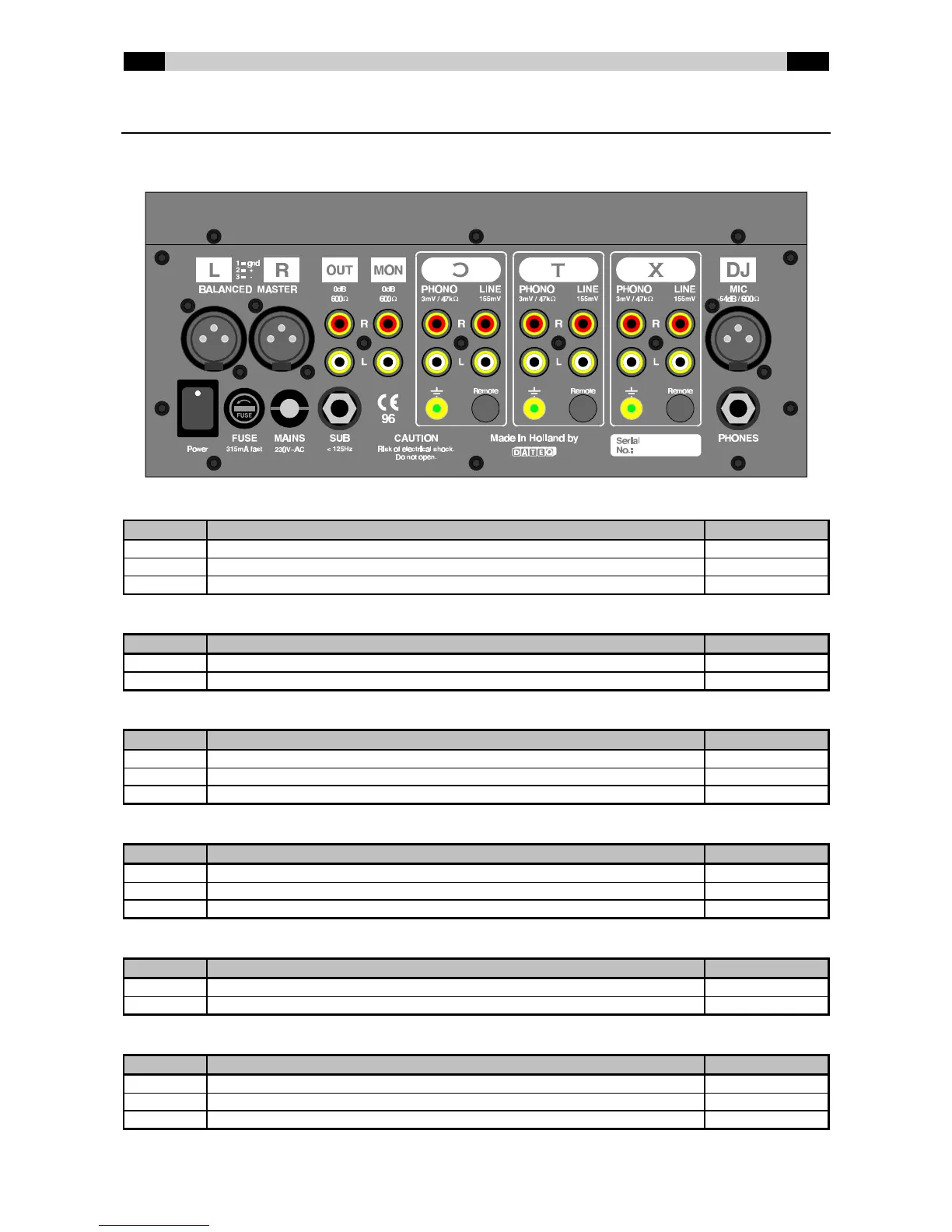

XTC Connector board
The connections for all audio in- and outputs are situated at the backside of the XTC. The on/off
switch and the fuse are also located here.
L / R Master Balanced Outputs (XLR 3-pins male)
Pin Function Type
1 Audio GND A-GND
2 Audio + Out
3 Audio - Out
Out / Mon Stereo Outputs (Cinch female)
Pin Function Type
Tip Audio + Out
Shield Audio GND A-GND
Sub Mono Output (TRS Jack 3p)
Pin Function Type
Tip Audio Out
Ring - -
Sleeve Audio GND A-GND
Phones Output (TRS Jack 3p)
Pin Function Type
Tip Left Out
Ring Right Out
Sleeve Audio GND A-GND
X / T / C Stereo Inputs (Cinch female)
Pin Function Type
Tip Audio + In
Shield Audio GND A-GND
DJ Balanced Mic Input (XLR 3-pins female)
Pin Function Type
1 Audio GND A-GND
2 Audio + In
3 Audio - In
