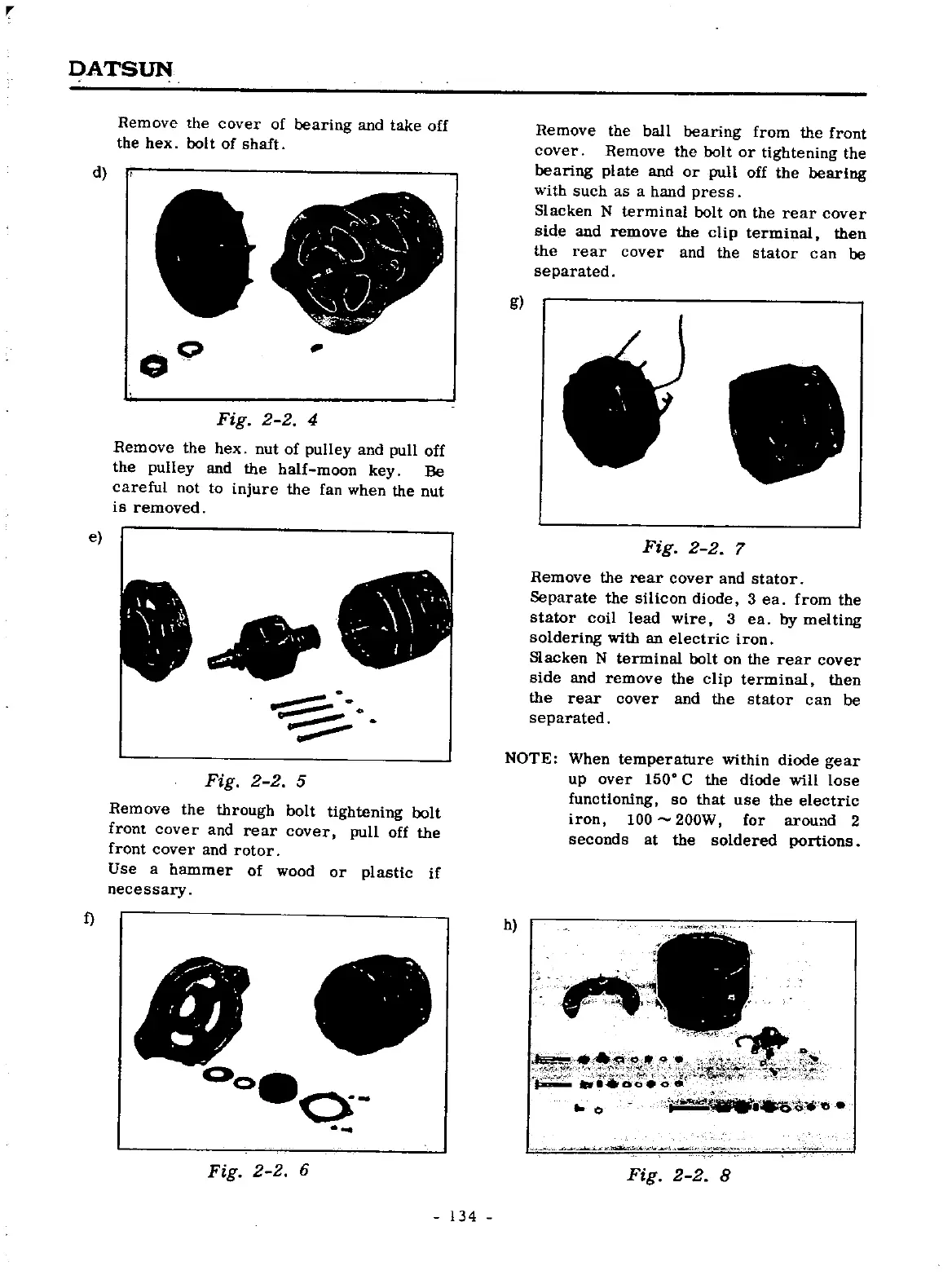

Remove the cover of
bearing
and take
off
the
hex bol t of shaft
d
oQ
r
Fig
2 2
4
Remove
the hex
nut
of
pulley
and
pull
off
the pulley
and the half moon
key
Be
careful
not to
injure
the
fan when the nut
is removed
e
I
P 0
Fig
2 2 5
Remove the
through
holt
tightening
bolt
front cover and rear cover
pull
off the
front cover and rotor
Use a
hammer of wood or
plastic
if
necessary
f
Fig
2
2
6
Remove
the
ball
bearing
from
the front
cover Remove the
bolt
or
tightening
the
bearing plate
and
or pull
off
the
bearing
with such as a hand
press
Slacken
N terminal bolt
on
the rear
cover
side and remove
the
clip
terminal then
the rear cover and
the stator can be
separated
g
Fig
2 2 7
Remove the rear cover
and stator
Separate
the
silicon diode 3 ea
from the
stator coil
lead wire
3
ea
by melting
soldering
with
an electric
iron
Slacken
N terminal bolt on the
rear cover
side and remove the clip
terminal then
the rear cover
and
the
stator can be
separated
NOTE When temperature
within
diode
gear
up
over
150
C
the diode
will lose
functioning
so that use the electric
iron 100 200W for
around
2
seconds
at the soldered
portions
h
y
i A
Fig
2 2
8
134
