PSM-500/500L/500LT SCPC Satellite Modem Operation
PSM-500/500L/500LT - Rev. 0.91
Page 3-3
Edit
Enter Clear
1 2 3
.
4 5 6
+/-
7 8 9
0
no yes
Unit Mod Dem Int'f
IF Frequency
70.125613MHz
PSM500
Satellite Modem
DATUM SYSTEMS
Transmit
Major Alm Minor Alm
Test
Lock Major Alm Minor Alm Test
Modulator Demodulator
Power Sum Alarm Local Remote

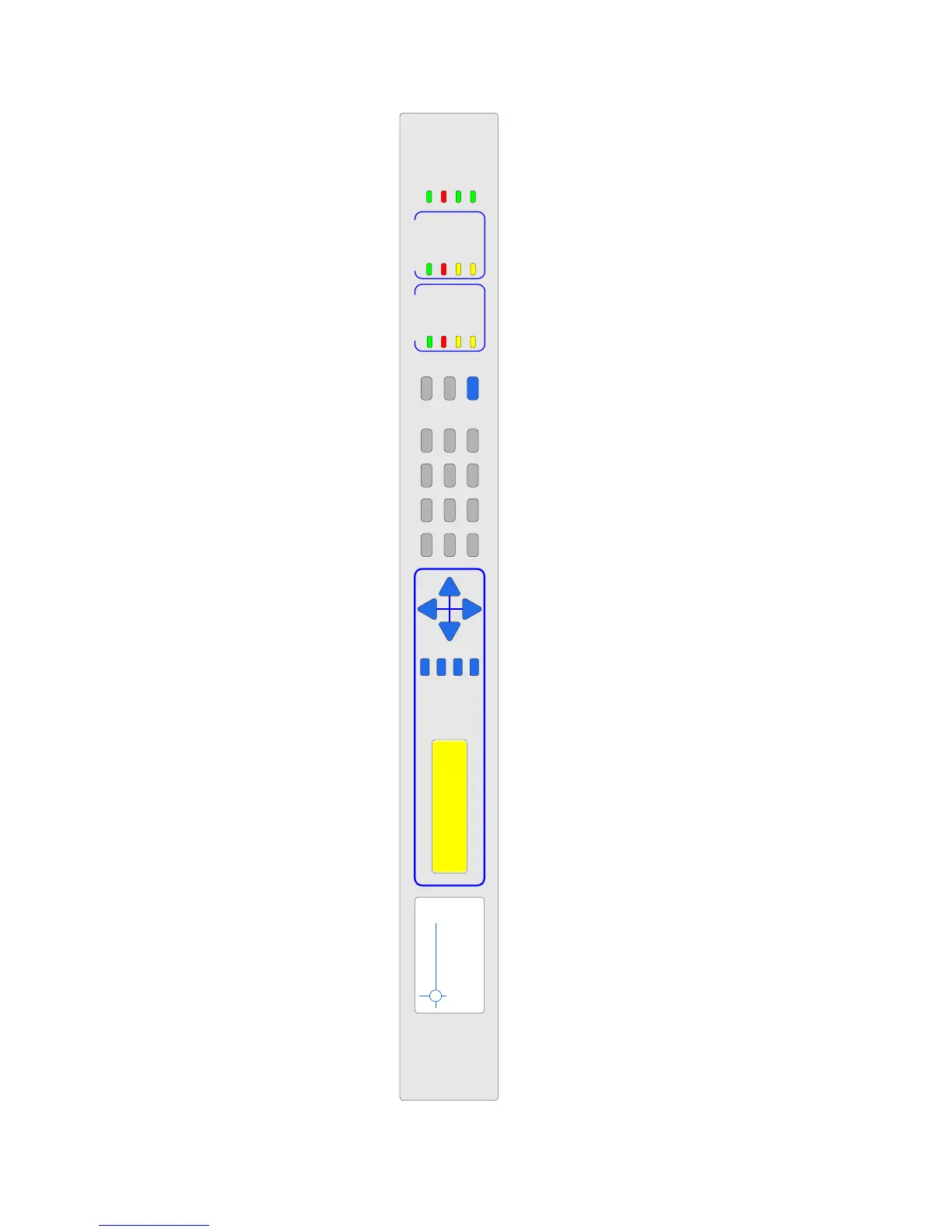

Figure 3-1 PSM-500 Front Panel Controls and Indicators
