Mounting Transmitter Shelter on a Vertical Surface
1. With a 3/16" (5 mm) drill bit, drill two holes approximately 2" (50 mm) apart. Use a
carpenter’s level to ensure the holes will be level.
2. Drill two more holes 7-1/32" below the upper holes.
MOUNTING TRANSMITTER SHELTER ON A POST
3. Insert the 1/4" x 1-1/2" lag screws through the flat washers, and through the holes at
the top of the shelter into the post.
Using an adjustable wrench or 7/16" wrench, tighten the lag screws.
4. Insert the 1/4" x 1-1/2" lag screws through the flat washers, and through the holes at
the bottom of the shelter into the post.
Using an adjustable wrench or 7/16" wrench, tighten the lag screws.

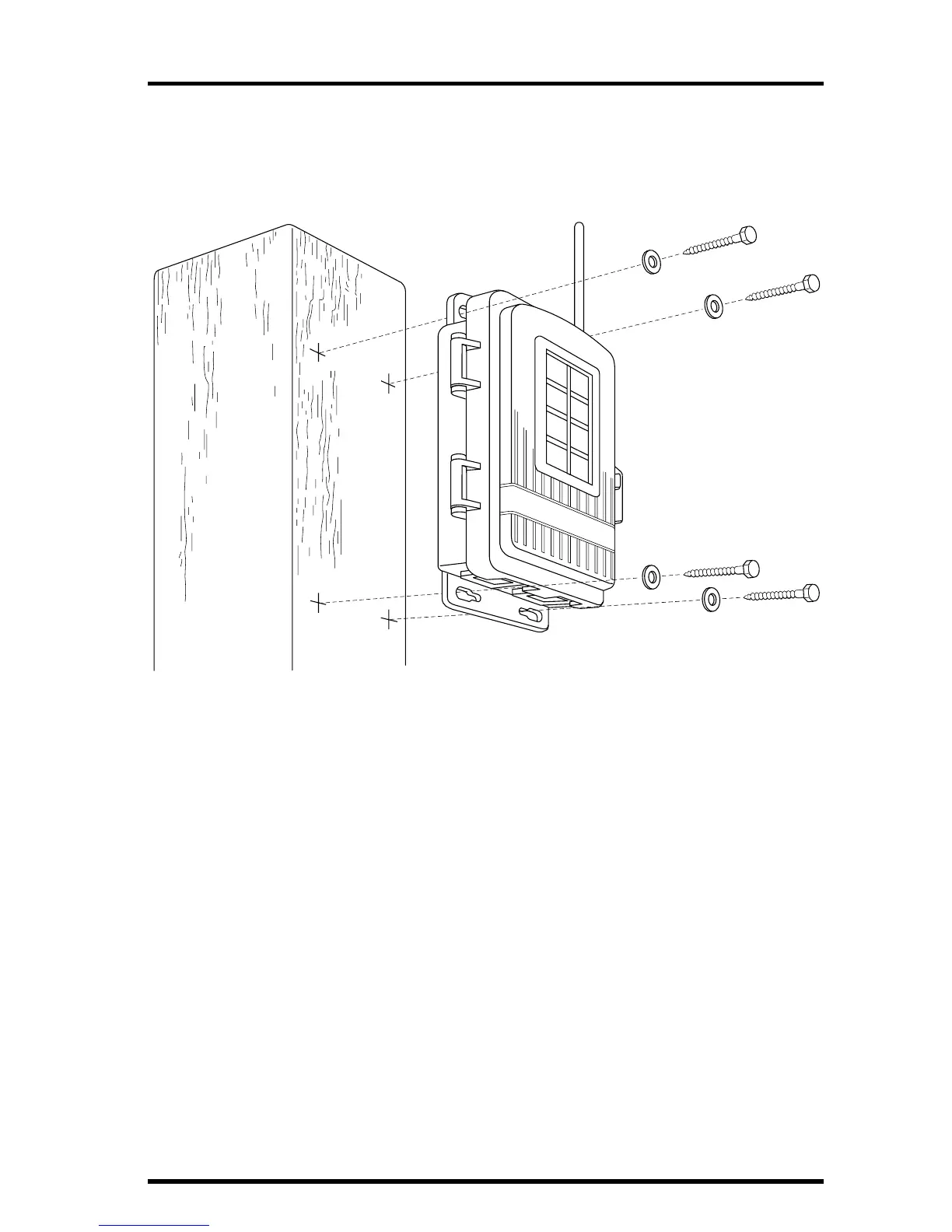

Flat
Washer
Lag
Screw
