Mount the Extension Tube Page 3

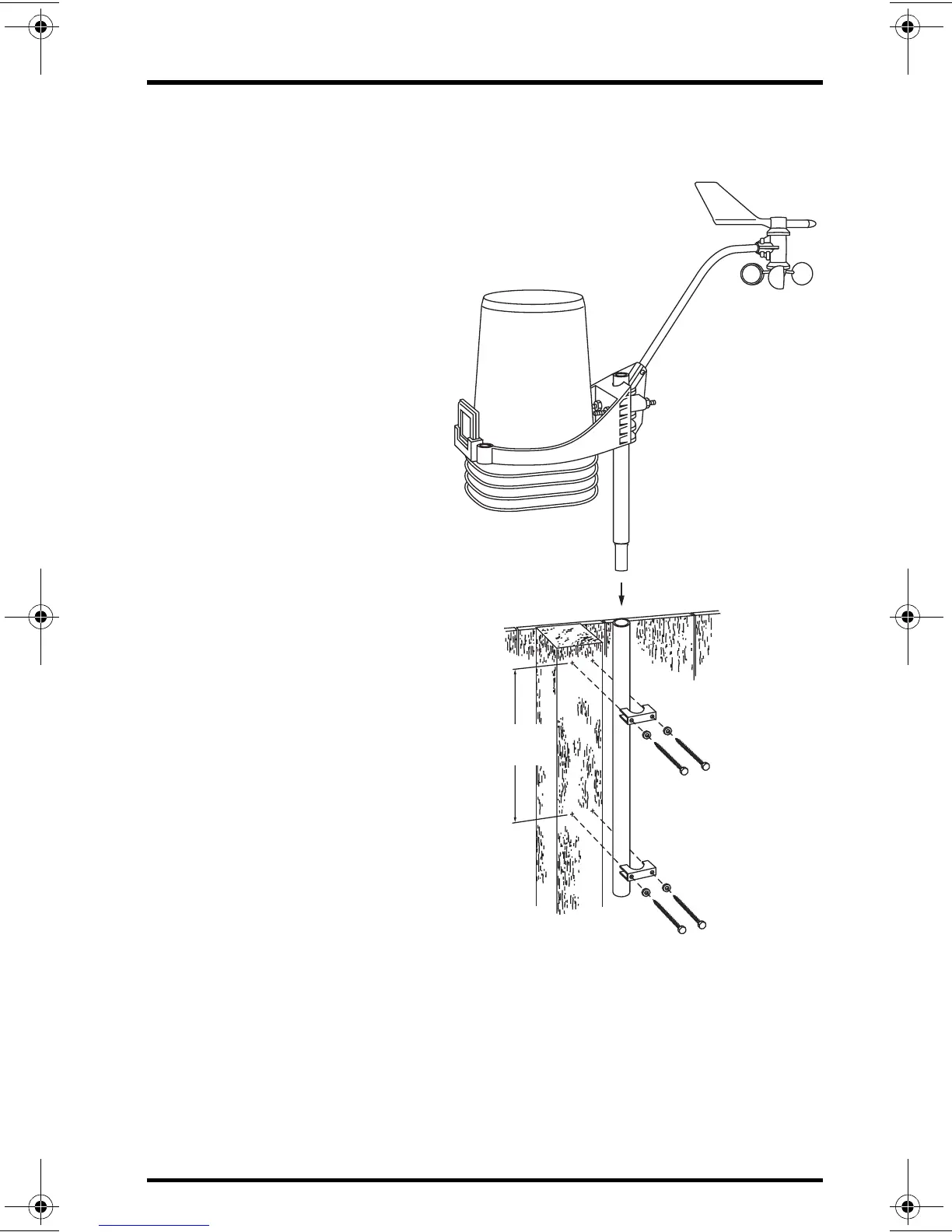

MOUNT THE EXTENSION TUBE
The extension tube is 21" long (and does not have a swaged end.)
1. In a fence-post or other
flat vertical surface, drill
two holes, using one of
the 1-1/8" saddles as a
guide.
2. Drill another set of holes
at least 12" (0.3 m) away
from the first holes.
3. Using the 5/16" flat wash-
ers and lag screws, secure
the saddles against the
extension tube and into
the post.
4. Tighten the lag screws
until the tube will not
slide up or down no mat-
ter how hard you try to
move it.
Support Tube
(swaged end)
Extension Tube
(21" long, no swaged end)
Saddle
Flat Washers
Lag Screws
12"
minimum
ISS (both sides)
