Product Number: 7717
Davis Instruments Part Number: 7395.298
Mounting Pole Kit Installation Manual
Rev. A Manual (January 17, 2001)
Copyright © Davis Instruments Corp. 2001. All rights reserved.
Vantage Pro is a trademark of Davis Instruments Corp.
3465 Diablo Avenue, Hayward, CA 94545-2778 U.S.A.
510-732-9229 • Fax: 510-732-9188
E-mail: info@davisnet.com • www.davisnet.com

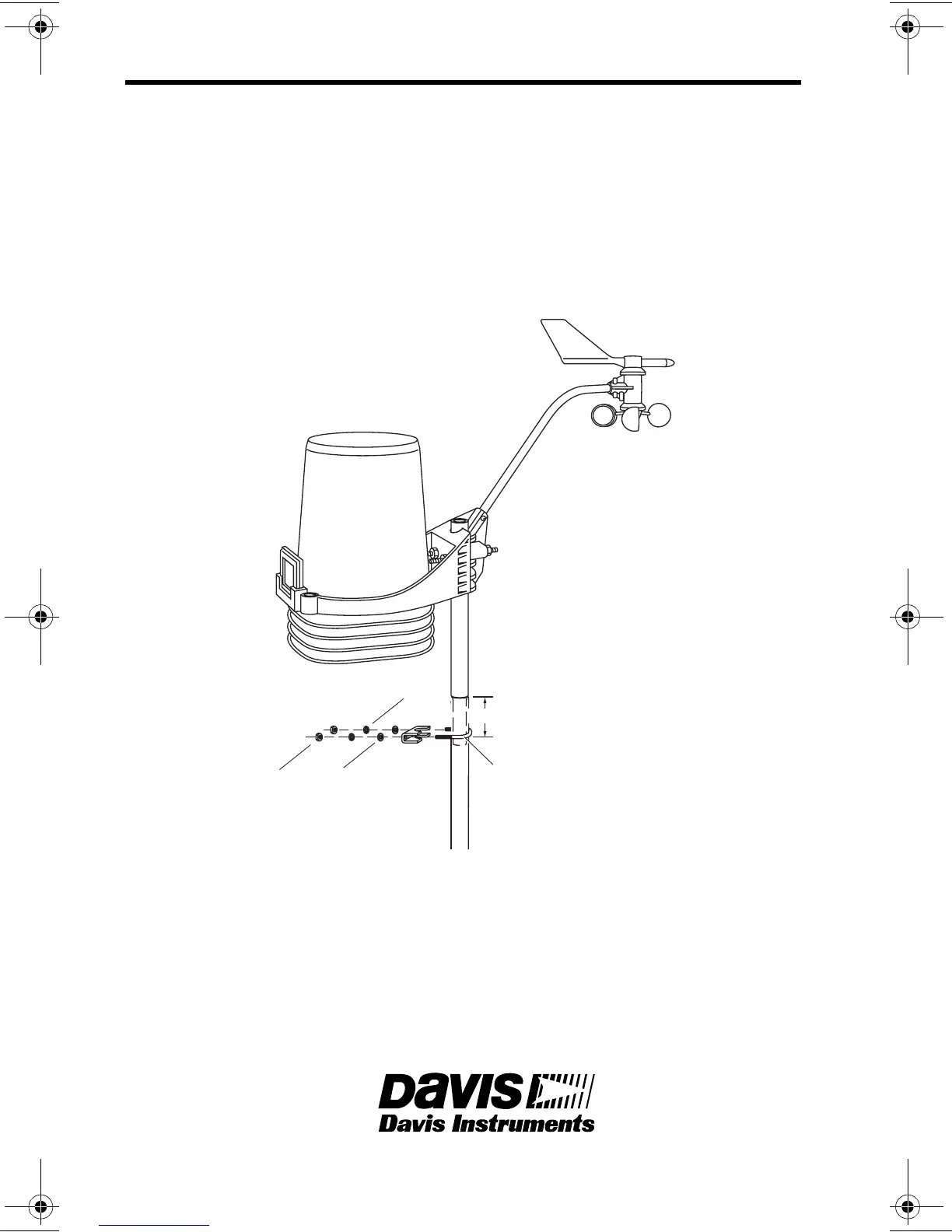

INSTALL THE SUPPORT TUBE ON THE EXTENSION TUBE
1. Insert the swaged end of the support tube in the open top of the extension tube.
2. Place the U-bolt provided in the mounting pole kit around the tubes where they
overlap. Secure with flat washers, lock washers, and hex nuts as shown in the illus-
tration.
3. Tighten the hex nuts quite firmly, until the U-bolt begins to dent the tubing
slightly.
4. Use the 8" cable tie to secure cable as needed.
Extension
Tube
Hex
Nuts
Lock
Washers
Flat
Washers
Saddle
tighten until U-bolt
dents the tubing slightly
2-1/2"
Support Tube
(swaged end)
ISS
Mtg_pole_kit 07395.298.fm Page 4 Wednesday, January 15, 2003 8:15 AM
