Davis Instruments Vantage Pro2 Installation Manual

2

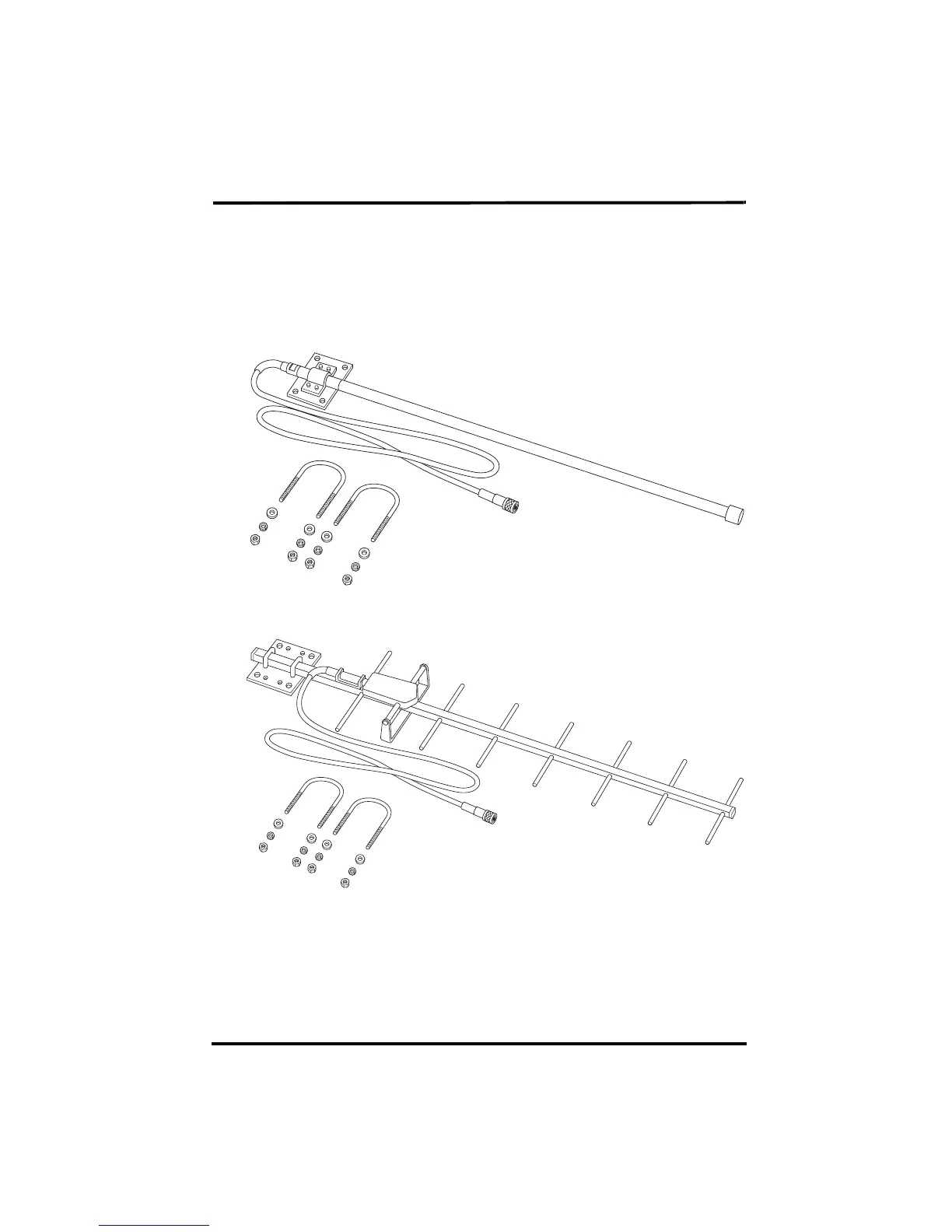

Long Range Repeater Components and
Hardware
In addition to the wireless repeater enclosure and hardware, the long range repeater
comes equipped with custom-selected external antennas that can be used separately on in
comibination of one another.
Omni-direction Antenna
Yagi Antenna
Omni Antenna
5/16"
U-Bolts
48"
Antenna
Cable
Flat Washer
Lock Washer
Nut
Yagi Antenna
5/16"
U-Bolts
48"
Antenna
Cable
Flat Washer
Lock Washer
Nut

Davis Instruments Vantage Pro2 Specifications

General

Update Interval	2.5 seconds
Wind Direction Resolution	1°
Wind Direction Range	0 to 360°
Rain Collector	Self-emptying tipping bucket
UV Index Range	0 to 16
Solar Radiation Range	0 to 1800 W/m²
Console Display	LCD with backlight
Wireless Transmission Range	1000 feet (300 meters) line of sight
Temperature Range	-40 to 150 °F (-40 to 65 °C)
Humidity Range	1 to 100%
Barometric Pressure Range	16.00 to 32.50 inHg (540 to 1100 hPa)
Wind Speed Range	0 to 200 mph (0 to 322 km/h)
Rain Collector Size	0.01 inch (0.2 mm) resolution
Rain Measurement Accuracy	±4% at rates up to 2 in/hr (50 mm/hr)
Power Supply	Solar-powered with battery backup
Console Power Supply	AC adapter or 3 C batteries
