6

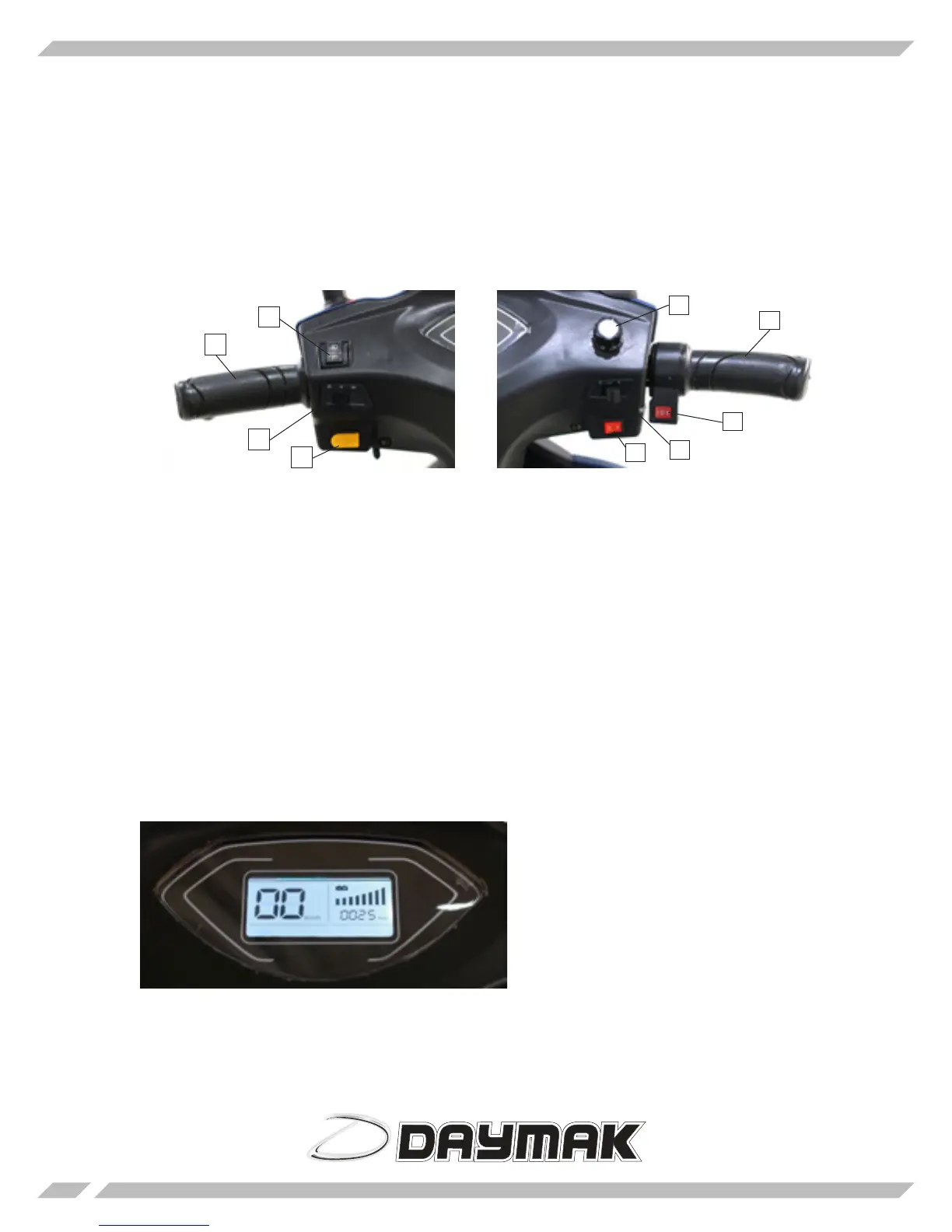

Instrument Overview
This diagram displays the instrument cluster and function switches needed for operation. Take note of each
switch and and familiarize yourself with all the functions described below. If any of the switches appear to
be malfunctioning, do NOT ride the unit until all functions work as intended.
1. Handgrip
2. Headlight High/Low Beam
3. Turn Signal Switch
4. Horn
Left Side Function Switches Right Side Function Switches
5. Speed Knob (Top Speed)
6. Throttle
7. Speed Switch (Torque)
8. Taillight / Headlight Switch
9. Forward / Reverse Switch
9
8
7
6
5
4
3
2
1
Function Switches Description
Headlight High / Low Beam - can only be activated when the Headlight (8) is on
Turn Signal Switch - push to the left or right, and press in the middle to turn o signal
Horn - activates the horn
Throttle - turn away from you to accelerate, release and turn towards you to decelerate
Speed Switch - limits to lower torque on 1, moderate torque on 2, and maximum torque on 3
Forward / Reverse Switch - push to the left position for forward, to the right position for reverse
Taillight / Headlight Switch - right position leaves taillight and headlight o, middle position turns on
the taillight, and left position turns on the headlight and taillight
10. Speed Indicator
11. Trip Odometer
12. Battery Indicator
The speedometer provides information
about the current state of your e-bike.
Before starting on your trip, ensure that
the battery and voltage indicator indi-
cates enough power to cover the distance
required. When the turn signals and or
headlights are activated, icons on the dis-
play will also inform you that they are on.
Display Overview
