Issued: 24.02.2005

STRIDER MD

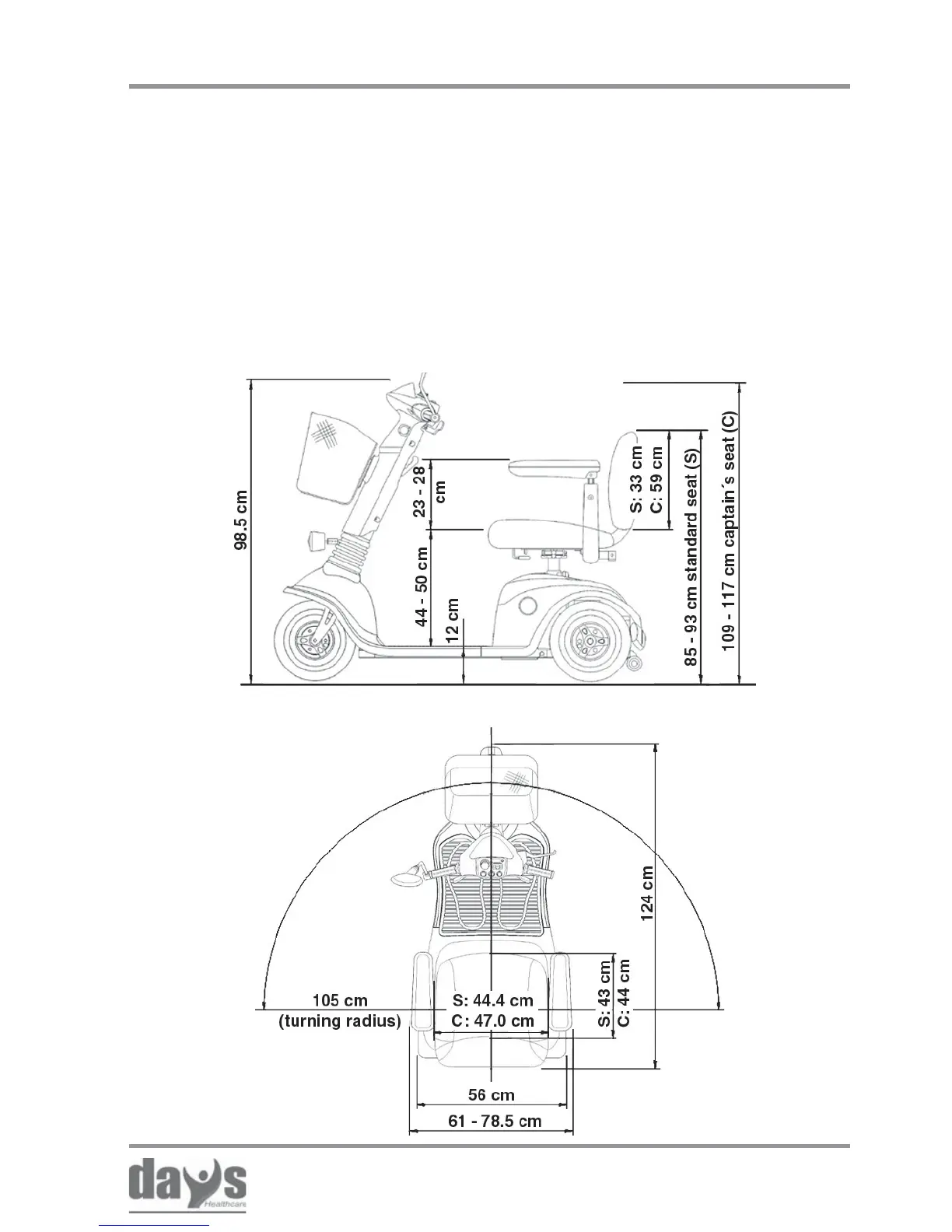

20.2.2 Dimensions 3-wheel version

Appendix - dimensions

Bulbs:

Headlight ..................................................... 24 Volt / 5 Watt

Rear light ..................................................... 24 Volt / 5 Watt

Front indicator .............................................. 24 Volt / 10 Watt

Rear indicator .............................................. 24 Volt / 10 Watt

Main Page

Default Chapter4
- Table of Contents4
1 Safety Instructions8
- Symbols Used8
- Intended Use8
- General Information9
- Safety When Driving10
- Safety During Transport, Assembly and Maintenance11
- Safety When Handling Batteries12
- Safety - Information about Electronics12
2 Versions13
3 Extent of Delivery13
4 Components14
- The Strider14
- The Dashboard - Displays and Controls14
5 Brief Instructions15
- Driving the Strider15
- Transporting the Strider17
6 Setting up the Strider19
- Adjusting the Seat Height19
- Adjusting the Seat Position - Standard Seat23
- Adjusting the Seat Position - Captain´s Seat25
- Adjusting the Tiller Angle27
7 Information about Safe Strider Driving28
- Driving up Inclines and down Slopes28
- Overcoming Obstacles29
  - Driving Information - Overcoming Kerbs31
- Overload Protection - Motor Protection32
- Battery Charging State = Driving Range33
8 Driving the Strider36
- Getting on and off36
- Seat Belt - Adjusting for Length and Putting on37
- Turning the Seat38
- Switching the Strider on38
  - Operation Indicator and Fault Display38
- Adjusting the Speed39
- Before Driving39
- Driving40
- Brakes40
  - Using the Motor Brake40
  - Using the Handbrake (4-Wheel Version Only)41
- Indicating41
- Switching on the Headlights41
- Using the Horn42
- Switching off / Parking the Strider42
9 Hazard Lamps42
10 Pushing the Strider43
11 Attaching the Shopping Basket43
12 Charging the Batteries44
- Preparing the Battery Charger44
- Charging the Batteries45
- After Charging46
13 Things to Know47
- The Battery Charger - Functioning Principle47
- The Batteries47
- The Auto Switch-Off48
- Lighting - 4 Wheel Version48
- Anti Tipping Wheels48
- Wheels and Tyres48
- The Drive Unit49
- The Drive (A-C)49
- The Control Unit49
- Brakes on the Strider50
  - The Motor Brake50
  - The Handbrake (4 Wheel Version)50
- Driver´s Licence50
- Insurance50
- Approval for Road Traffic Use50
14 Transporting the Strider51
- Transport Information51
- Transporting the Complete Scooter51
- Preparation for Transport - Separating Components51
- After Transport - Reassembly55
15 Cleaning59
16 Maintenance and Inspection60
- Daily Maintenance before Start of Journey60
- Weekly Inspections / Tyre Pressure60
- Annual Inspection - Inspection Timetable61
17 Troubleshooting65
- Before Troubleshooting65
- Troubleshootimg65
- Operation Indicator Blink Codes68
  - Blink Speed68
  - Error Message Blink Sequences68
18 Repairs70
- Information about Safety at Work70
- Tools70
- Mechanics71
- Lighting - 3 Wheel Version77
- Lighting - 4 Wheel Version79
  - Replacing Bulbs in Headlights and Rear Light79
  - Replacing Bulbs in Front/Rear Indicators80
- Fuses81
  - Strider Fuses81
  - Battery Charger Fuse82
- Batteries83
  - Disposal of Used or Damaged Batteries83
  - Refitting Battery Cables83
20 Appendix85
- Nameplate85
- Specifications86
- Torque for Fixing Screws89
- Disposing of the Scooter89
19 Temporary Storage85
21 Warranty Information90
22 Annual Inspections Carried out91
