Raider Max 250(single/double-seat) : Owner’s Manual Version:1.0 Oct. 2005
44

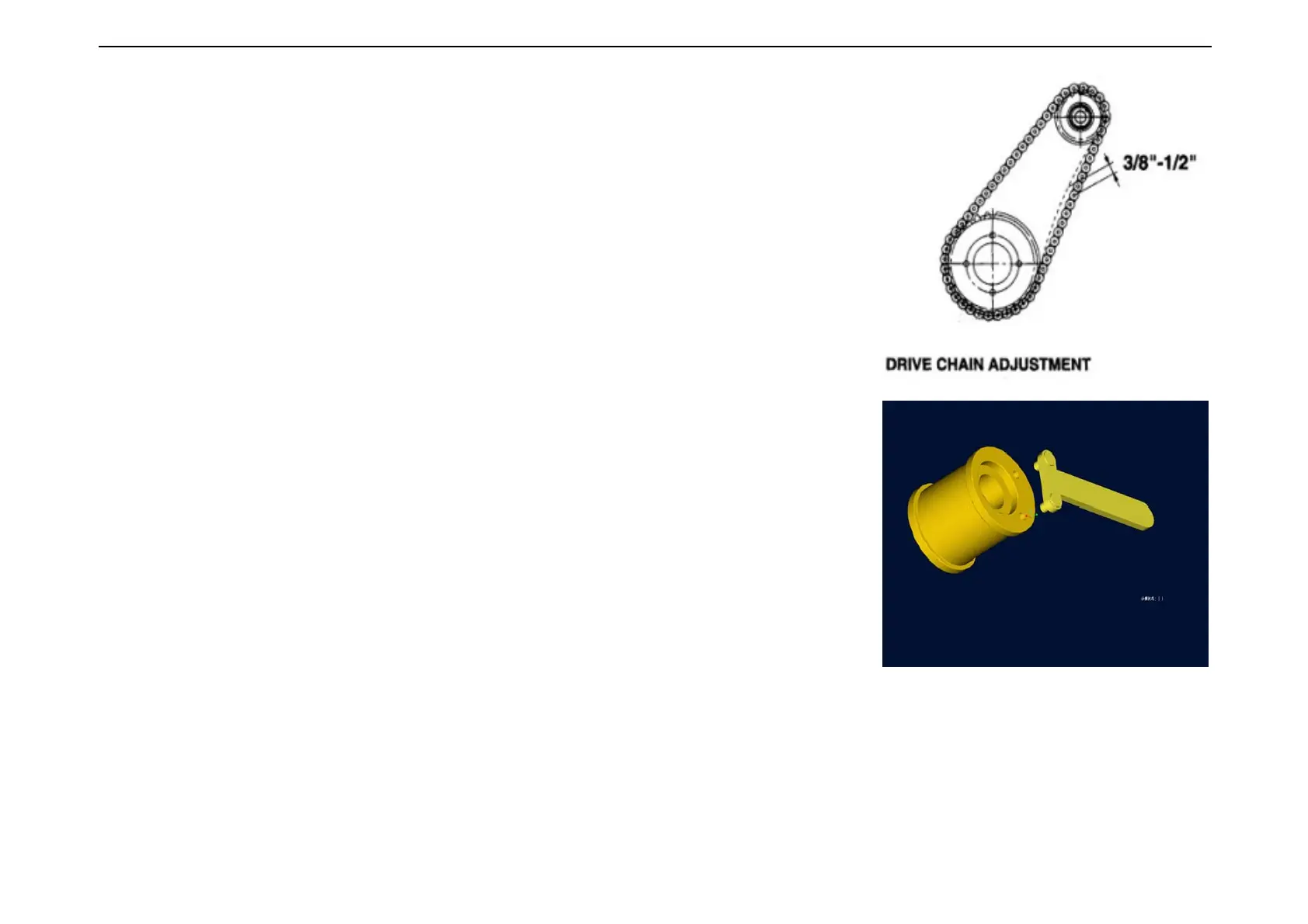

Readjust it if it has more than 1/2" flex.
a. Prop up the left/right rear swing arm with a hoisting jack, to lift the rear
wheel above the ground;
b. Loosen the 6 bolts M8X30 on the pressure board of the rear swing arm end;
c. Hold the adjust hole on the side of the eccentric sleeve with a specialized
adjust spanner;
d. Find out the correct direction in which the chain can be tensed;
e. Move the eccentric sleeve in this direction by turning the spanner
until the chain has been adjusted to a proper tension degree.
H. Adjustment of Front Shock
There are five adjustable positions on each shock. The default position is
in the middle set by the manufacturer.
Use a round nut wrench as you adjust the shock. The tension of the shock spring will increase as you screw
to the left and decrease as you screw to the right.
