dB Technologies ES 503 - Page 8


English

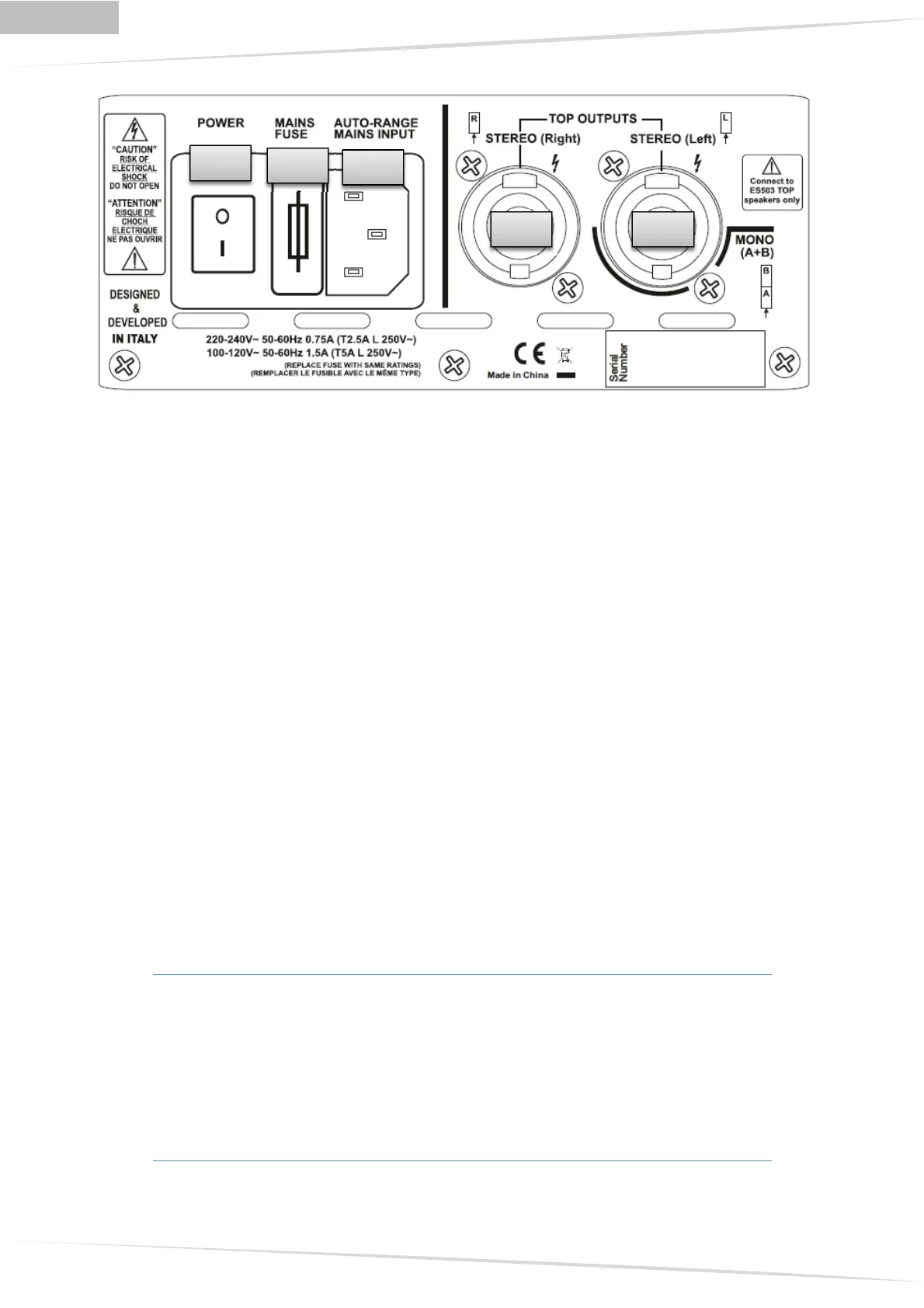

 ON/OFF Switch
 Mains Fuse holder
 VDE Mains Input
 Speakon connector
(to Right ES Top in stereo mode)
 Speakon connector
(to Left ES Top in stereo mode or to ES Top A in Mono or Double Column mode)
Warning:
Use only ES Cables
In single column mode or double column mode connect only the left speakon
connector to ES Top A. The ES Top B will be feeded trough the fast connector
between Top A and Top B





