INGENIA IG2T Cod. 420120238 REV. 1.1
ATTENTION!
The speaker is supplied equipped with a pre-installed fuse designed to
operate within the 220-240 V range. If the system must operate within the
100-120 V range:

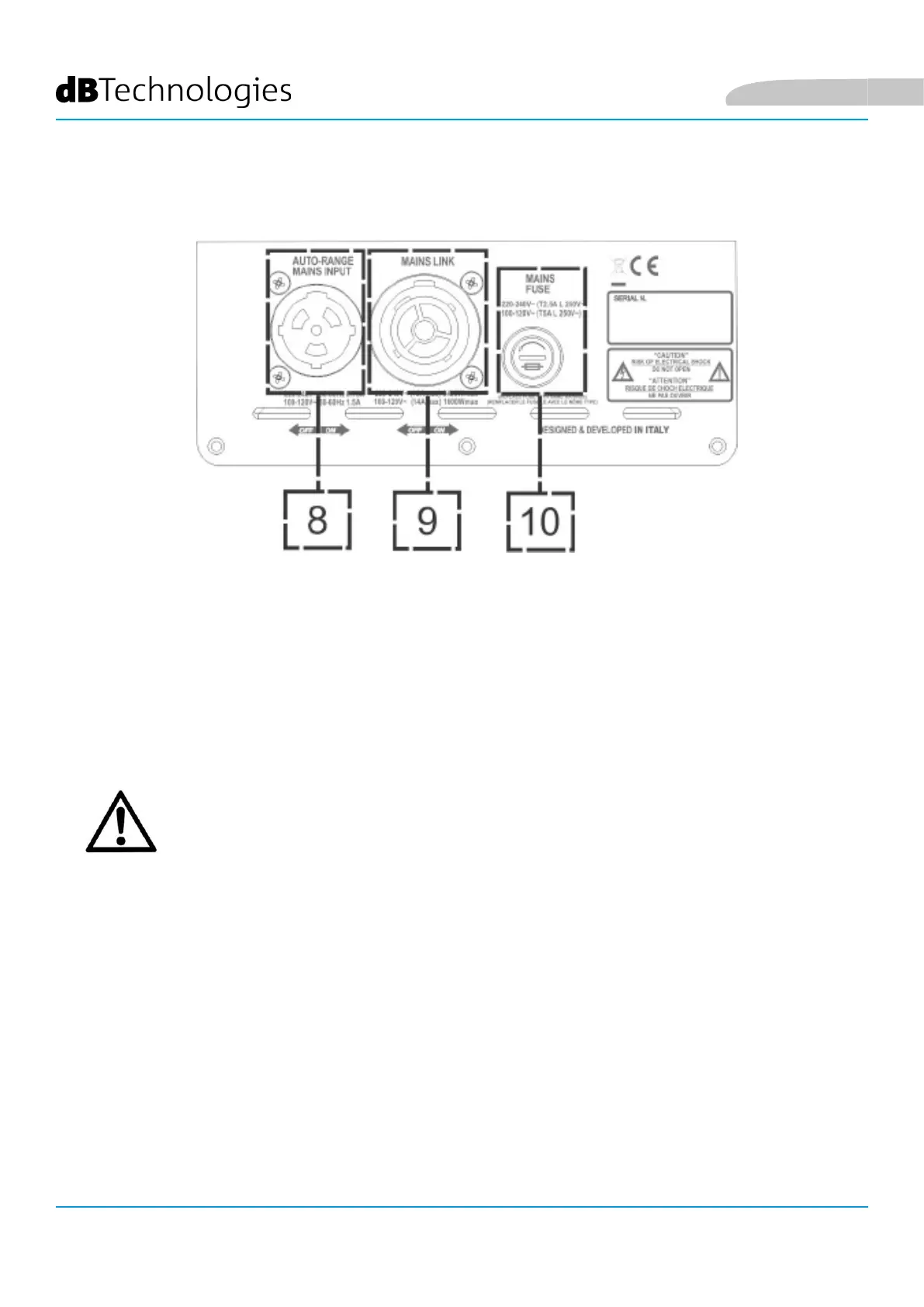

8. “AUTO-RANGE MAINS INPUT” POWER SUPPLY INPUT
Input for Neutrik® powerCON TRUE1® connector.
9. “MAINS LINK” POWER SUPPLY LINKING OUTPUT
The connection provided by Neutrik® NAC3PX allows to link the power supply to a second module.
10. “MAINS FUSE” PROTECTION FUSE
Mains fuse
POWER SUPPLY SECTION
1. Disconnect all connections, including the power supply one
2. Wait 5 minutes.
3. Replace the fuse with the one included in the package for the 100-120 V range.
4. Only use the provided power cord.
English
