dB Technologies sub 618 - Input Connections and Audio Daisy Chain

Figure 2
27
SUB615 - SUB618 Cod. 420120251 REV. 1.0

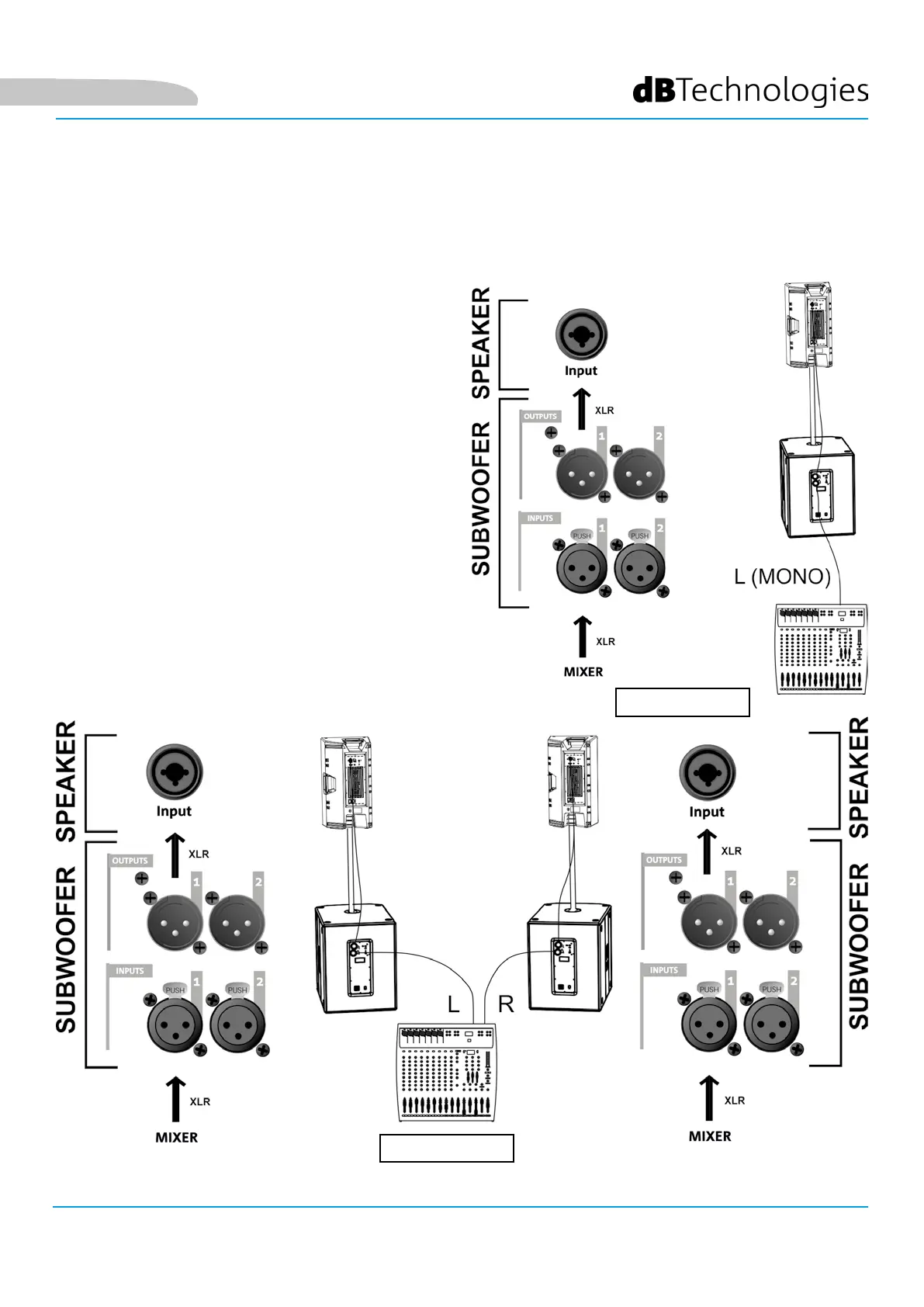

INPUT CONNECTIONS AND AUDIO DAISY CHAIN
CASE A (MONO connection) between subwoofer and
speaker (examples: gure 1, gure 2):
According to the specic conguration (mono or stereo), one or two cables (not supplied) are required at
input and at daisy chain. XLR connectors are required.
In the event of a MONO connection between
subwoofer and speaker:
1. Connect mixer output to subwoofer INPUTS 1
connector
2. Connect subwoofer OUTPUTS 1 connector to
speaker input.
3. For each speaker, select the type of input
impedance on LINE.
4. For each channel in the conguration, set
subwoofer OUTPUTS MODE [4] to XOVER, in
order to daisy-chain a signal having a crossover
frequency of 120 Hz to the speaker.
Figure 1
English
