dbx 463X - Inspection and Installation Guide; Rack-Mounting Instructions

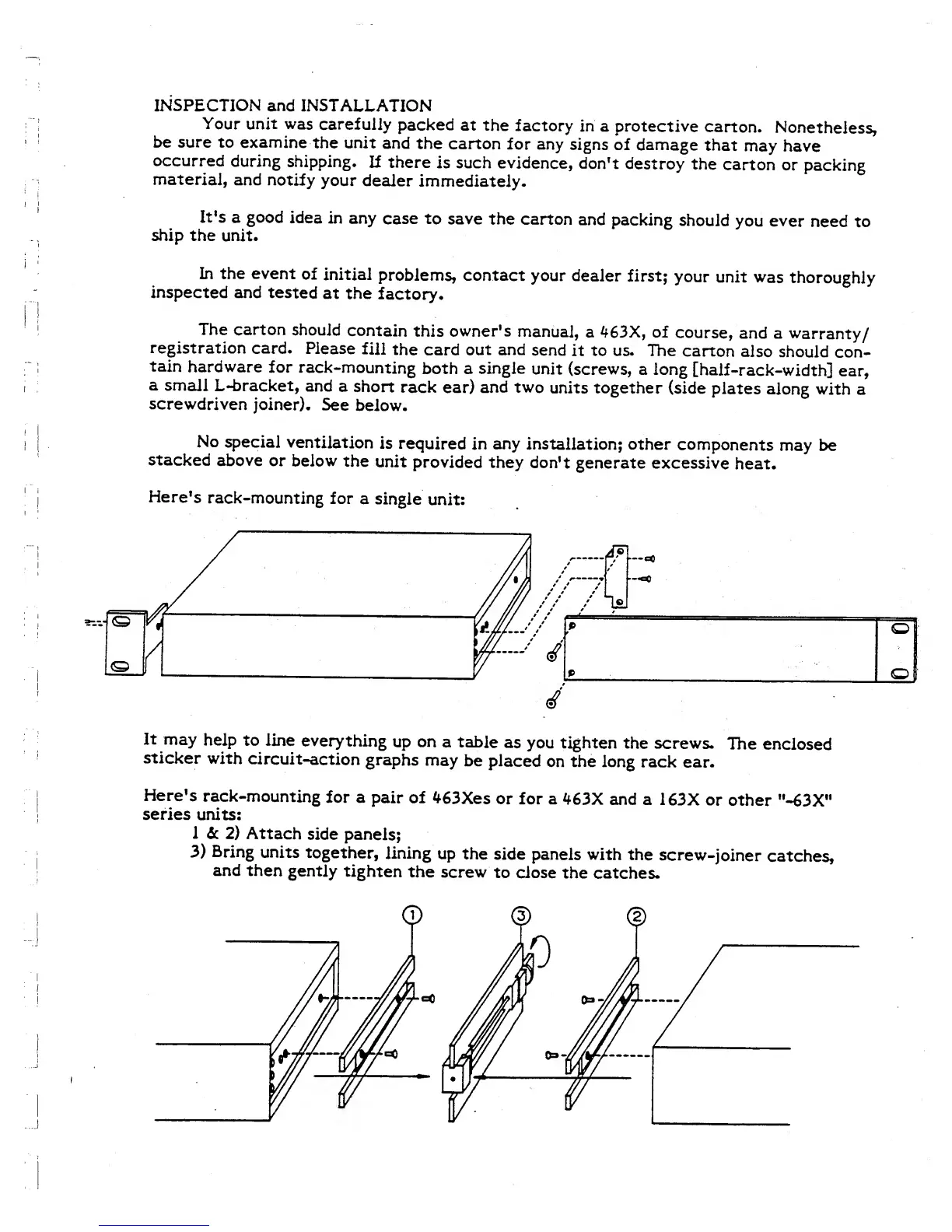

INSPECTION and
INSTALLATION
Your unit
was
carefully
packed
at
the
factory
in
a protective
carton.
Nonetheless,
be sure to
examine
the
unit
and
the
carton
for
any
signs
of
damage
that
may
have
occurred
during
shipping.
If there
is such
evidence,
don't
destroy
the
carton
or
packing
material,
and
notify
your
dealer
immediately.
It's
a good
idea
in
any
case to
save
the
carton
and
packing
should
you
ever
need
to
ship
the
unit.
In the
event
of
initial
problems, contact
your
dealer
first;
your
unit
was
thoroughly
inspected and
tested
at
the
factory.
The carton
should
contain
this
owner's
manual,
a 463X, of
course,
and a
warranty/
registration
card.
Please
fill
the
card
out and
send
it to us. The
carton
also
should
con-
tain
hardware
for
rack-mounting
both a
single
unit
(screws,
a long
[half-rack-width]
ear,
a
small
L-bracket,
and
a
short
rack
ear)
and
two
units together
(side
plates
along
with a
screwdriven
joiner).
See
below.
No
special
ventilation
is
required
in
any
installation;
other
components
may be
stacked
above
or
below
the
unit
provided they
don't
generate excessive
heat.
Here's
rack-mounting
for
a
single
unit:
It
may
help
to
line
everything
up on
a table
as
you
tighten
the
screws.
The
enclosed
sticker
with
circuit-action
graphs
may
be
placed
on the long
rack
ear.
Here's
rack-mounting
for a
pair of
463Xes
or for a
463X
and a
163X
or
other
"-63X"
series
units:
1
<5c
2)
Attach
side
panels;
3)
Bring
units
together,
lining
up the
side
panels with
the
screw-joiner
catches,
and
then
gently
tighten
the
screw
to close
the
catches.
