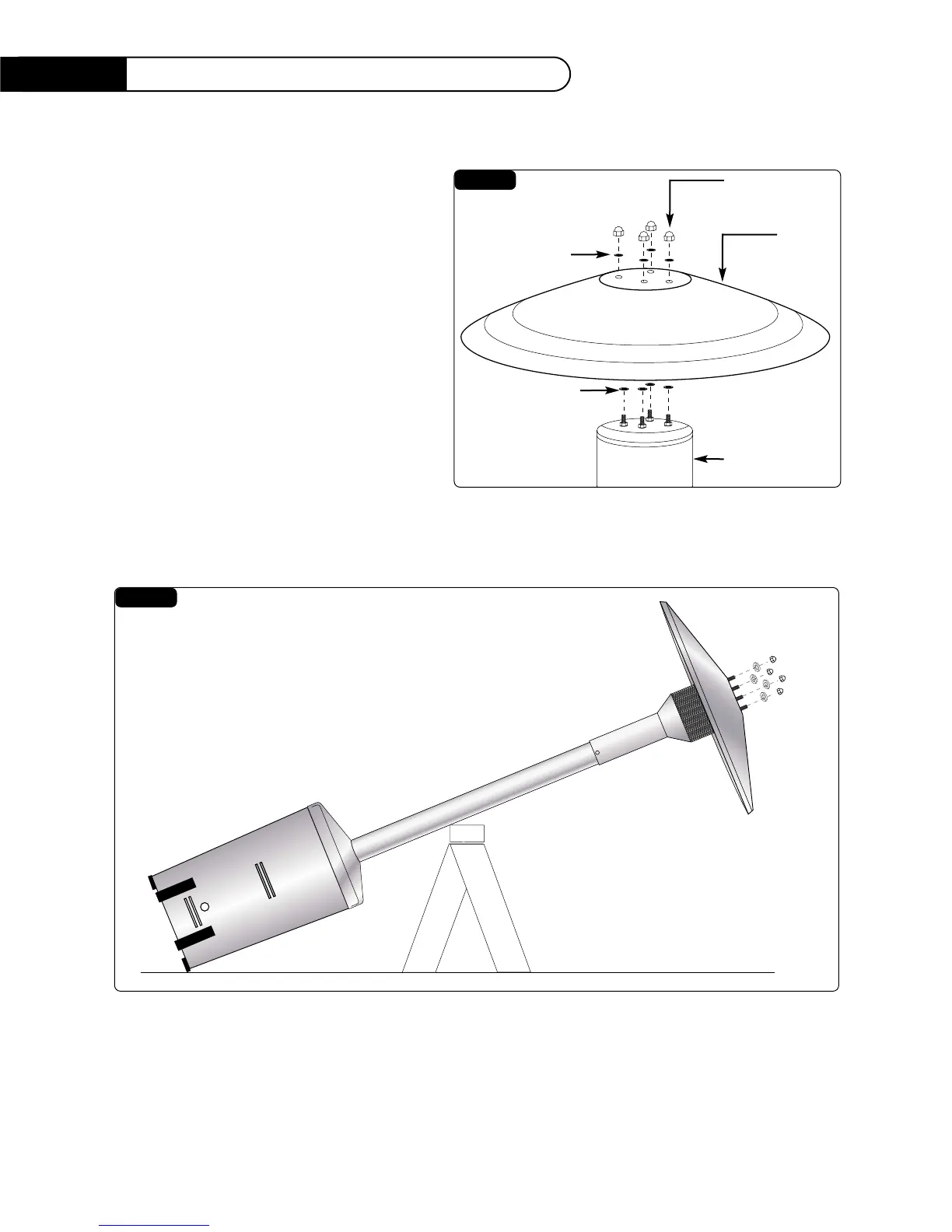

STEP 9

Locate the cap nuts,washers (4 ea.) and

reflector shield.Tip the heater backwards and

support it with stable horizontal surface (i.e.

sawhorse, workbench step ladder).

Install the reflector shield with the cap nuts

and washers.

Use caution not to over-tighten

or damage the reflector.

Return the unit to

its upright position and continue to the next

section for recommended locations and

usage.

HARDWARE USED

1) P/N 15005-15 Washers - Flat (4)

2) P/N 15019-07 1/4 Cap Acorn Nuts (4)

3) P/N 15005-10 Washers - Split (4)

As semb ly I ns tructions

FIG.11

FIG.10

REFLECTOR

ACORN NUT

SPLIT WASHER

FLAT WASHER

BURNER HEAD
