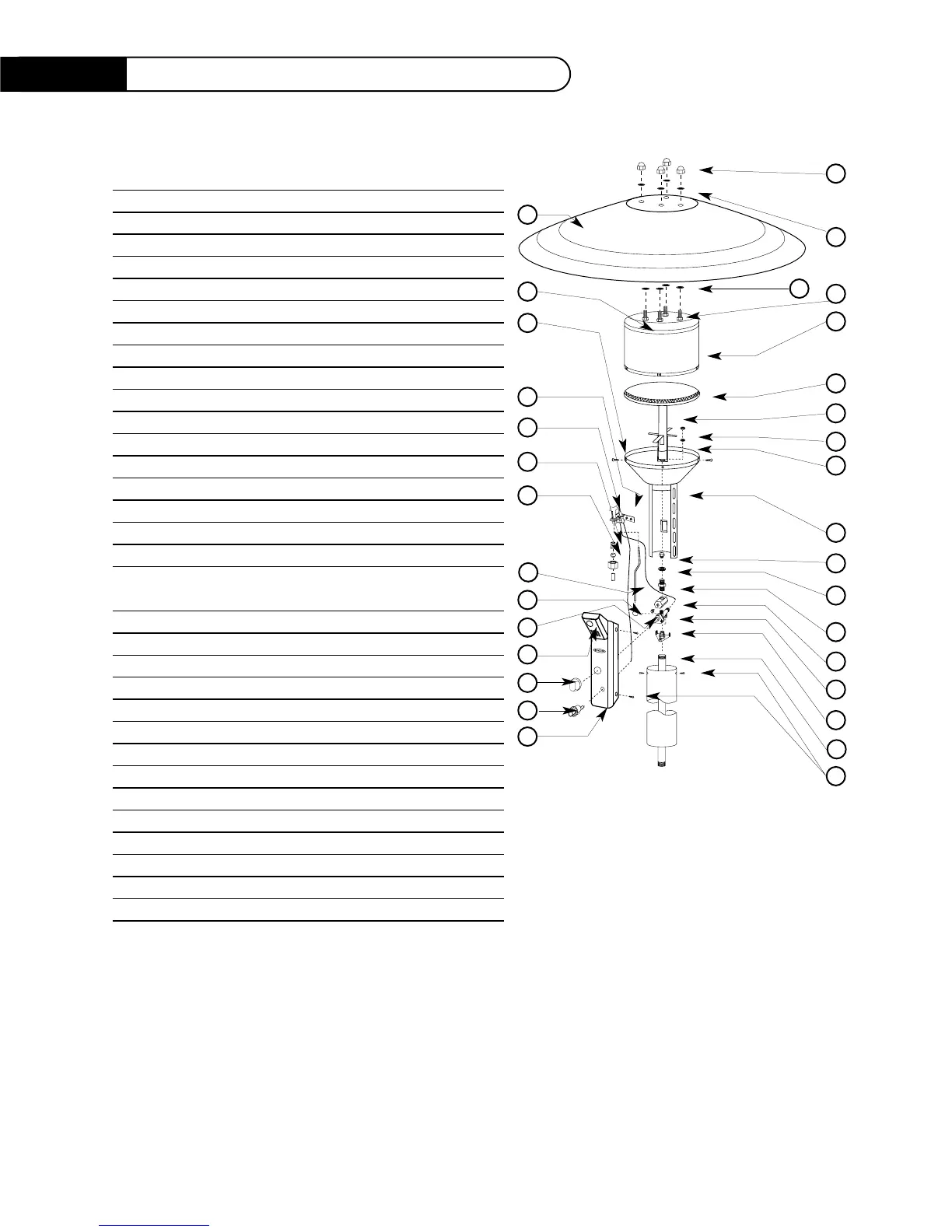

ITEM PART NO. DESCRIPTION
1. 15019-07 1/4-20 Acorn Nut
2. 15005-10 Split Washer
2.b 15005-15 Flat Washer
3. 23002-SP Reflector
4. 15021-09 1/4-20 Keps Nut
5. 23018-01 Emitter Assembly
6. 15003-15 Bolt 1/4-20 x 3/4
7. 15001-26 Screw #10-24 x 1/2
8. 12015 Burner Head
9. 23083 Burner Assembly
10. 15077 Nut 1/4 NPT
11. 15005-23 Internal TH.Washer, 08
12. 23024 Match Hole Cover
13. 15001-26 Screws 10-24 x 1/2
14. 23064 Valve Panel Assembly
15. 16025-4 Piezo Igniter
16. 23080 LowerScreen Cone Assy.
17. 13025-XX Orifice LP Gas (refer gas
spec. table pg.4)
18. 15005-25 Flat Washer
19. 13024 Orifice Fitting
20. 13066 Safety Valve
21. 13231-01 LP PilotWeldAssembly
22. 13028-10 Pilot Orifice LP Gas
23. 13027 1/4 Tubing Ferrule
24. 13229 Thermocouple
25. 23094 Pilot Tubing
26. 18018-03 Intake Pipe
27. 18184 90
0
Elbow
28. 13226 Test Point
29. 18181 Valve Block
30. 14154-01 Knob
31. 23065 Valve Support Bracket
1
2
3
4
5
6
7
8
9
16
10
11
12
13
14
15
17
18
19
29
23
21
22
24
26
27
28
20
30
31
2b
25
To Next Page
