STEP 3: (CONTINUED)
6) Cut the openings for the following installation:
Standard counter top installation, see Fig. 5A
Deep counter or island installation, see Fig. 5B
NOTE: If the deck is used, the sides or bottom of
the cutout may be solid combustible or
non-combustible material. If the bottom
is solid, provide a 6" x 6" cutout in the
left rear corner for the gas inlet and
power cord clearance.
CABINET PREPARATION
9

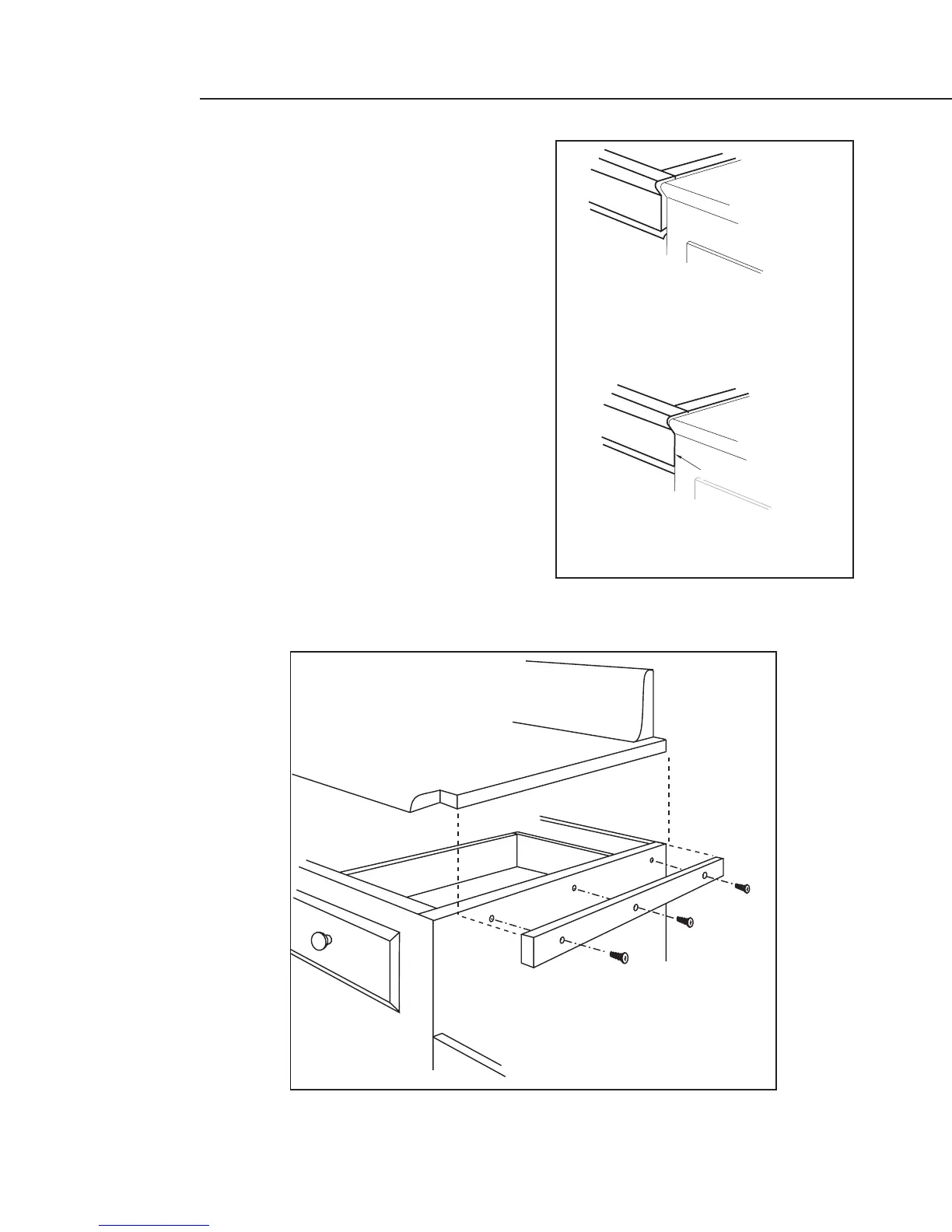

Flush with cabinets
Front projects outward as shown
from standard depth cabinet.
Front flush with cabinets; a minimum
of 25
3/4" cabinet depth required
Fig. 2
Front flush with cabinets; a minimum of
25 3/4” cabinet depth required
Front projects outward as shown
from standard depth cabinet.
Flush with cabinets
Counter-Sunk Screws
Fig. 3
Counter-Sunk Screws
