DCS PHFS-DW-SS, PHFS-DW-BK, PHFS-DWWT, PHFS-DW-BL, PHFS-DW-GN, PHFS-DW-BZ User Manual

6
As semb ly I ns tructions
STEP 4
Remove the protective endcap at the bottom of the intake pipe. Make certain that the threads remain
bare. Locate the reducer fitting and thread it onto the open end of the intake pipe. Hold the intake
pipe above the threads with your channel lock pliers and tighten the reducer fitting clockwise onto the
intake pipe.
HARDWARE USED
1) P/N 18159 Reducer Fitting (1)

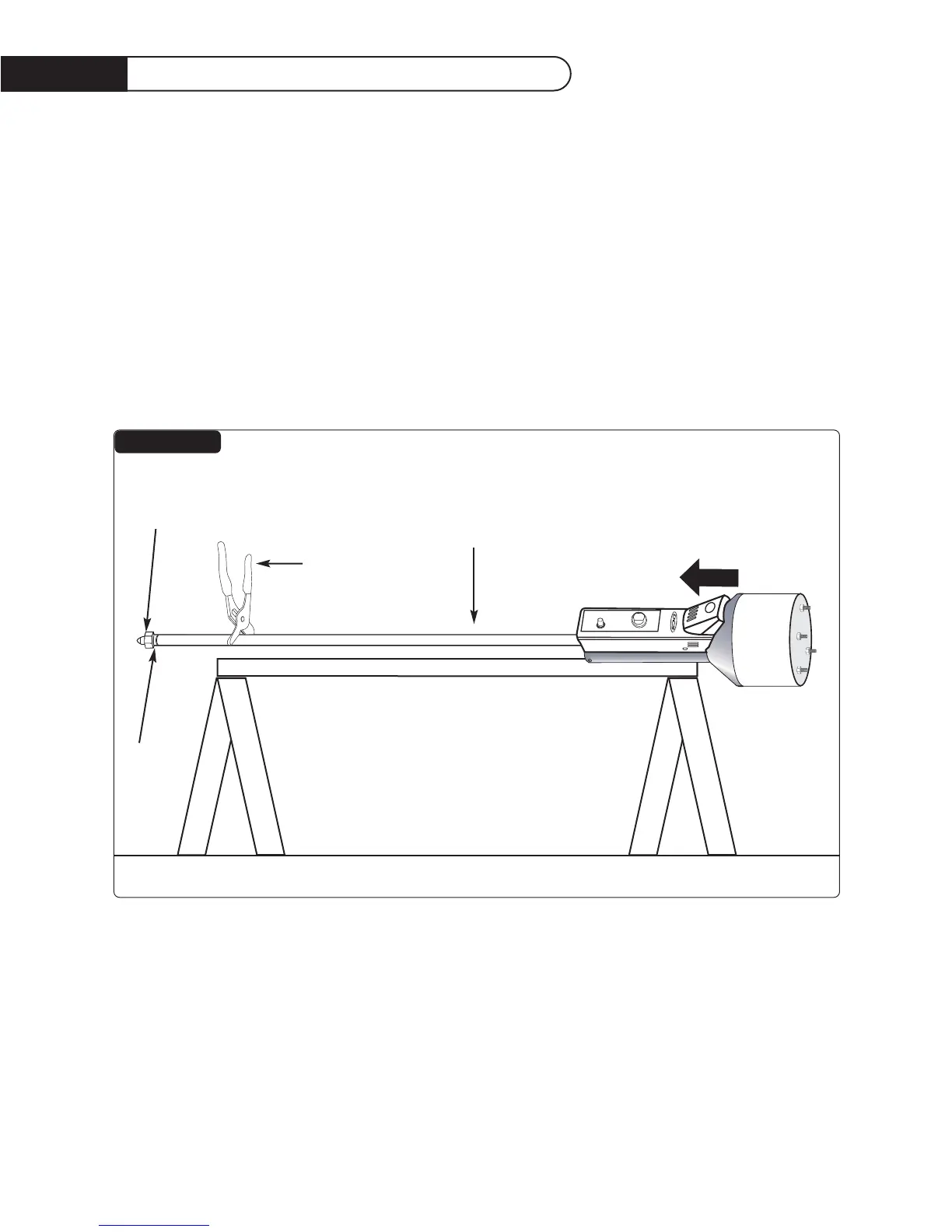

FIG.03
STEP 4
INTAKE PIPE
CHANNEL LOCK
PLIERS
INSTALL REDUCER
FITTING
