STEP 5
Locate the post assembly. Carefully insert the
intake pipe through the top of the post assembly
being careful not to allow the head assembly to
slide too far down the post as undue scraping may
occur. Align the screw holes on the panel of the
burner head and the post assembly. Fasten the
burner and post with the #10 screws.
HARDWARE USED
1) P/N 15001-26 #10 Machine Screws (3)

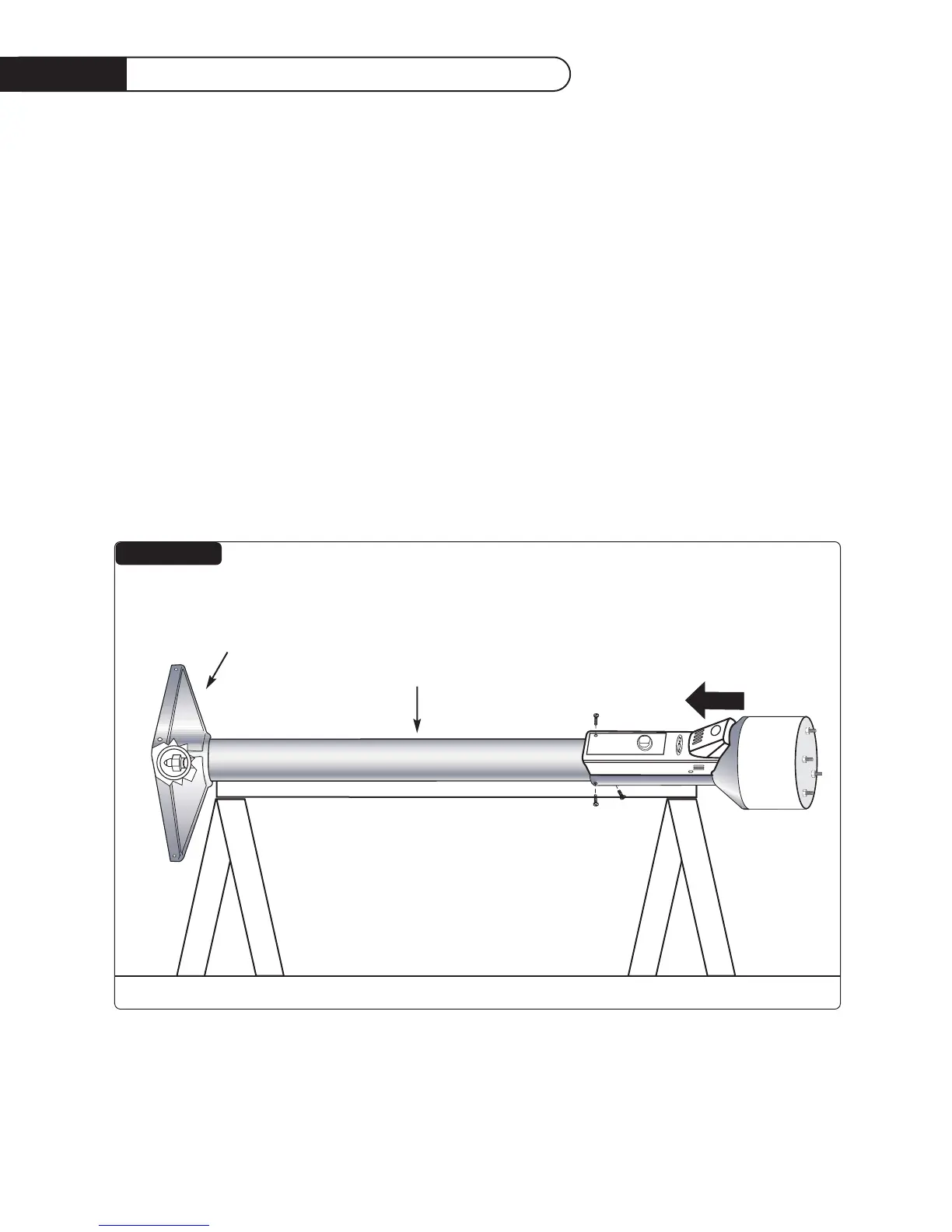

fig. 04
STEP 5
POST
BASE COVER
