DD AUDIO / CLASS D MONOBLOCK AMPLIFIER / 6

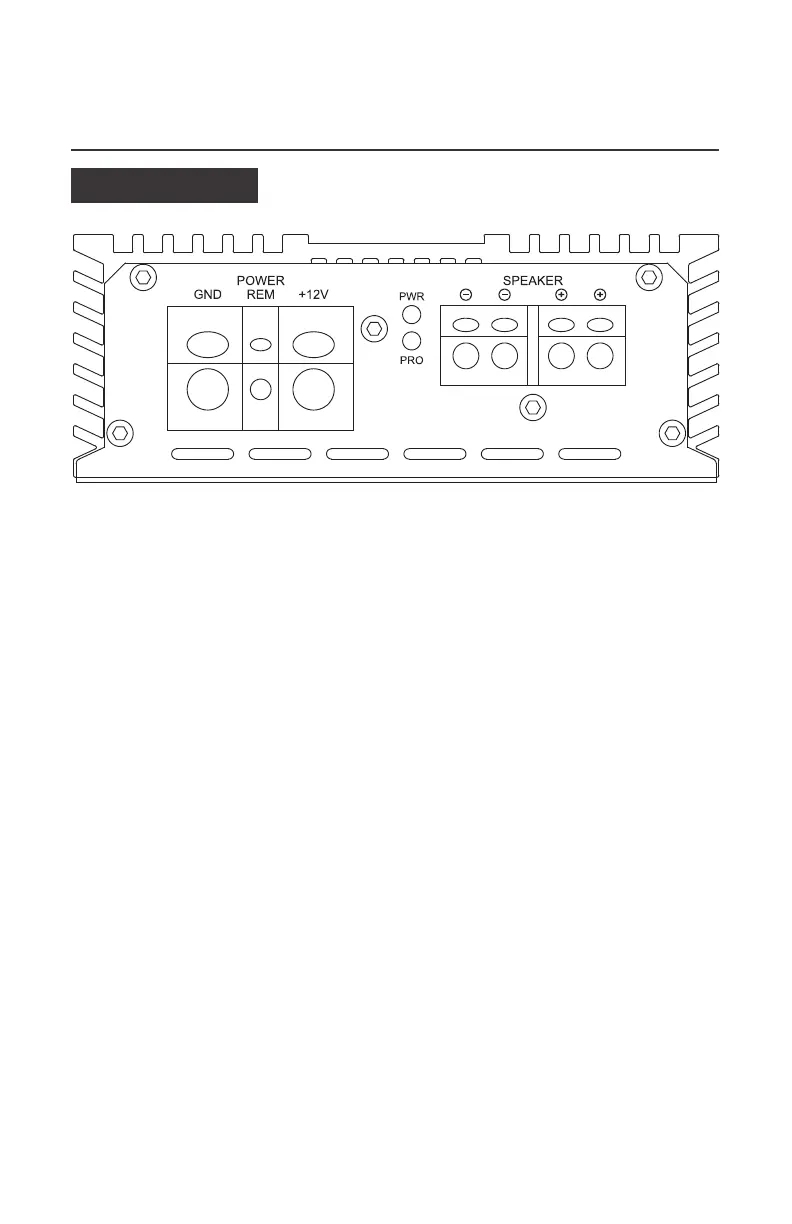

POWER PANEL
GND:
Connect to a ground wire going
directly to the chassis of your vehicle.
Minimum cable size is 0 gauge.
REM:
Connect to a switched +12V cable.
+12V:
Connect to a fused positive cable
(+12V) from the battery. Minimum
power cable size is 0 gauge.
PWR LED:
Indicates the amplifier is grounded,
and receiving +12V and REM power.
PRO LED:
Indicates a general malfunction due to
SPEAKER SHORT, THERMAL,
OVERLOAD, HI/LOW VOLTAGE, DC
OFFSET.
SPEAKER OUTPUT TERMINALS:
Connect to the speaker's + and -
terminals. Minimum suggested
speaker cable size is 16–12gauge.
DM SERIES amplifiers are monoblock
but have two + and two - terminals for
easier connection of multiple speaker
cables. Minimum impedance is
1 Ohm.
CONTROL AND CONNECTION FOR DM SERIES
AMPLIFIERS: DM500a/DM1000a
