197
2
4
3

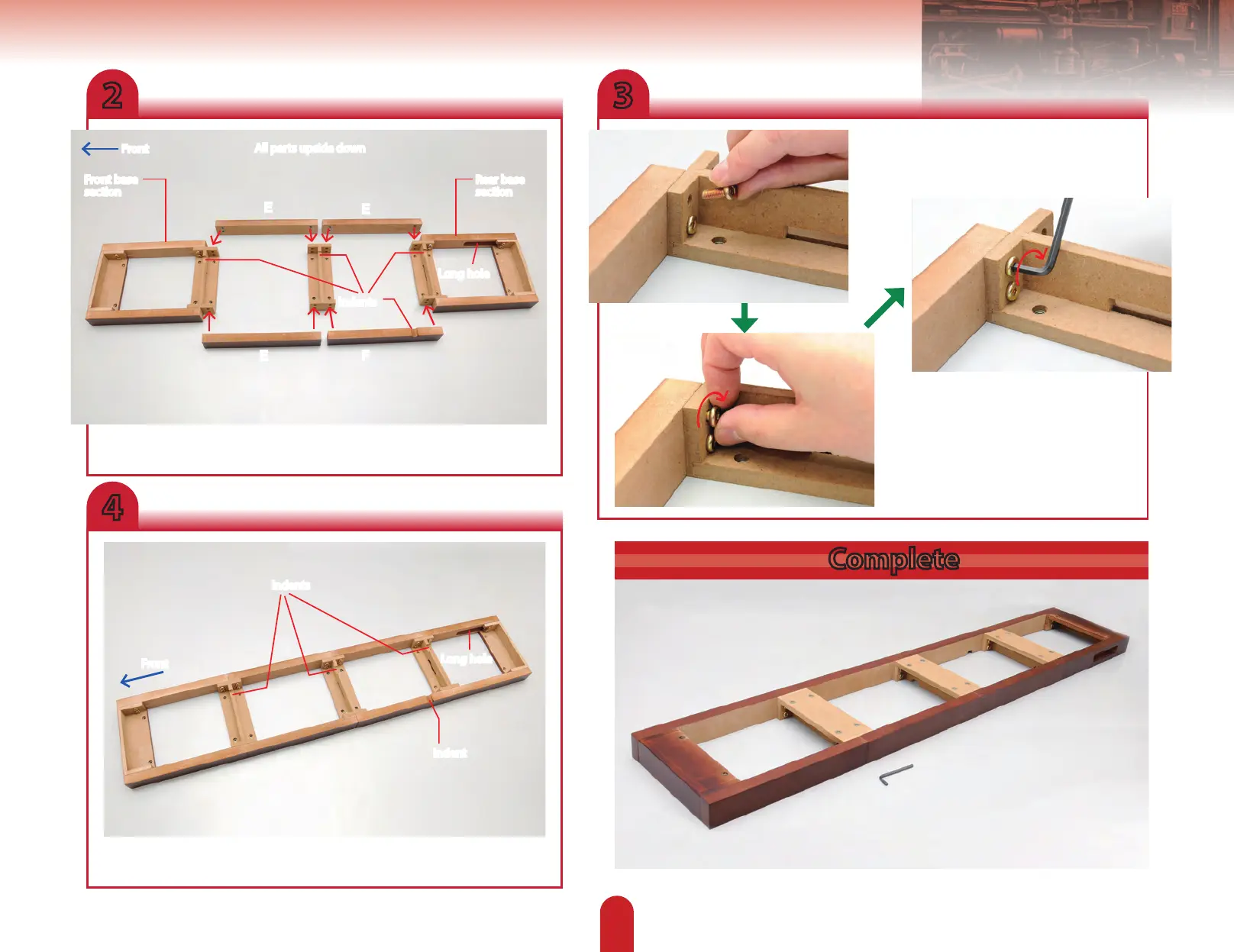

Lay out this stage’s parts, along with the front and rear base sections, upside
down on your work surface as shown.
Lay the assembly out on a at surface and connect the central section to the
two end sections. Then tighten all 16 cap bolts fully.
Complete
Front
E
E
E F
Indents
Front base
section
Rear base
section
Indents
Indent
Long hole
Long hole
Front
All parts upside down
Line up the holes in the side frames with
those in the centre joint, and insert a cap
bolt into each.
Then use the hex wrench to further
tighten the bolts – but only lightly
at this stage to allow room for
adjustment. Repeat this for all sides
(E and F).
Tighten the cap bolts by hand, as far
as you can.
To Next Page
