193
2
4
3

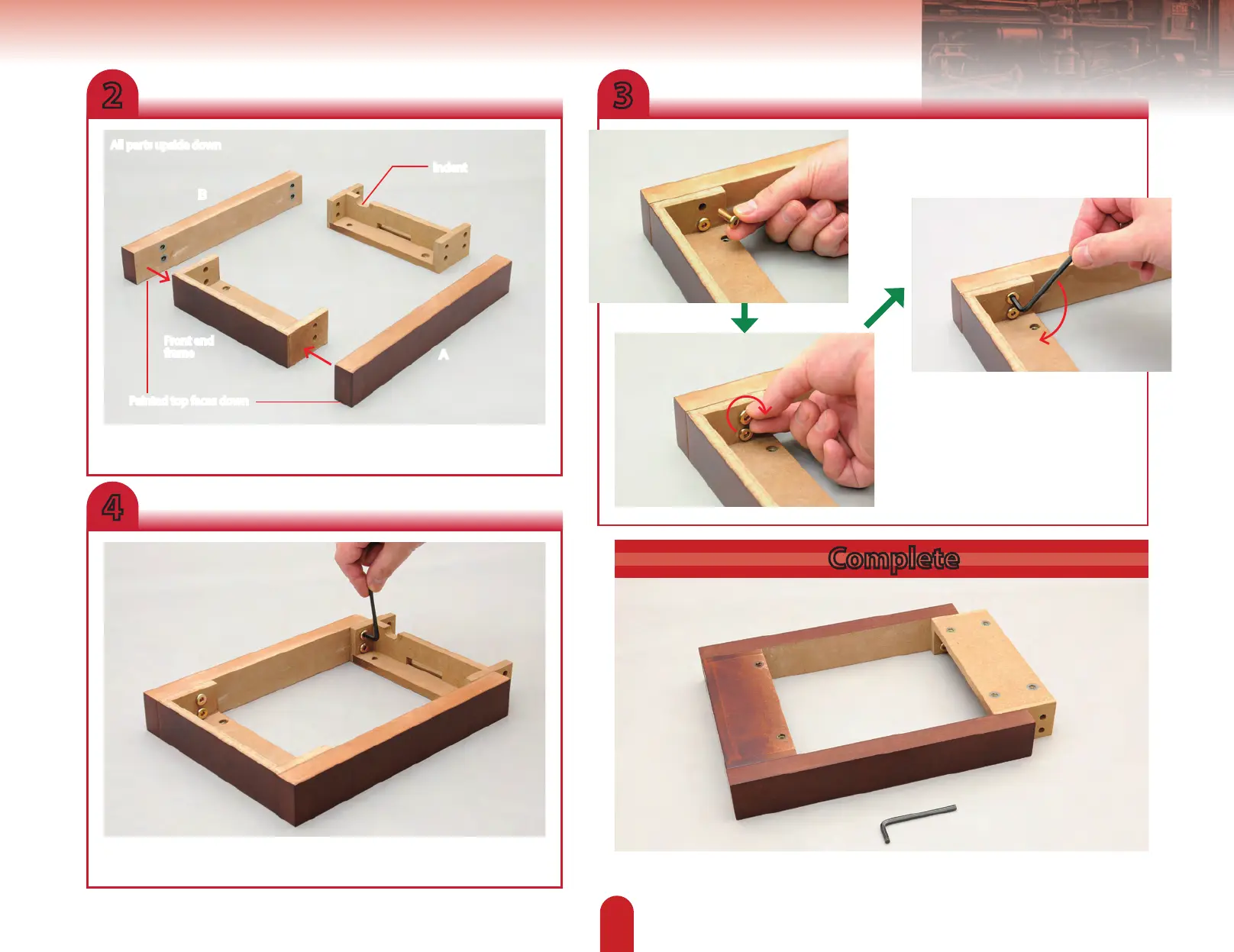

Lay out all four parts as shown above.
Lay the base face down on a at surface to ensure all the holes are aligned,
then secure the frame joint with four half-tightened cap bolts.
Line up the holes at each joint,
and insert a cap bolt into each.
Then use the hex wrench to
further tighten the bolts – but
only lightly at this stage to allow
room for adjustment.
Tighten the cap bolts by hand, as far
as you can.
Painted top faces down
All parts upside down
B
A
Front end
frame
Complete
Indent
