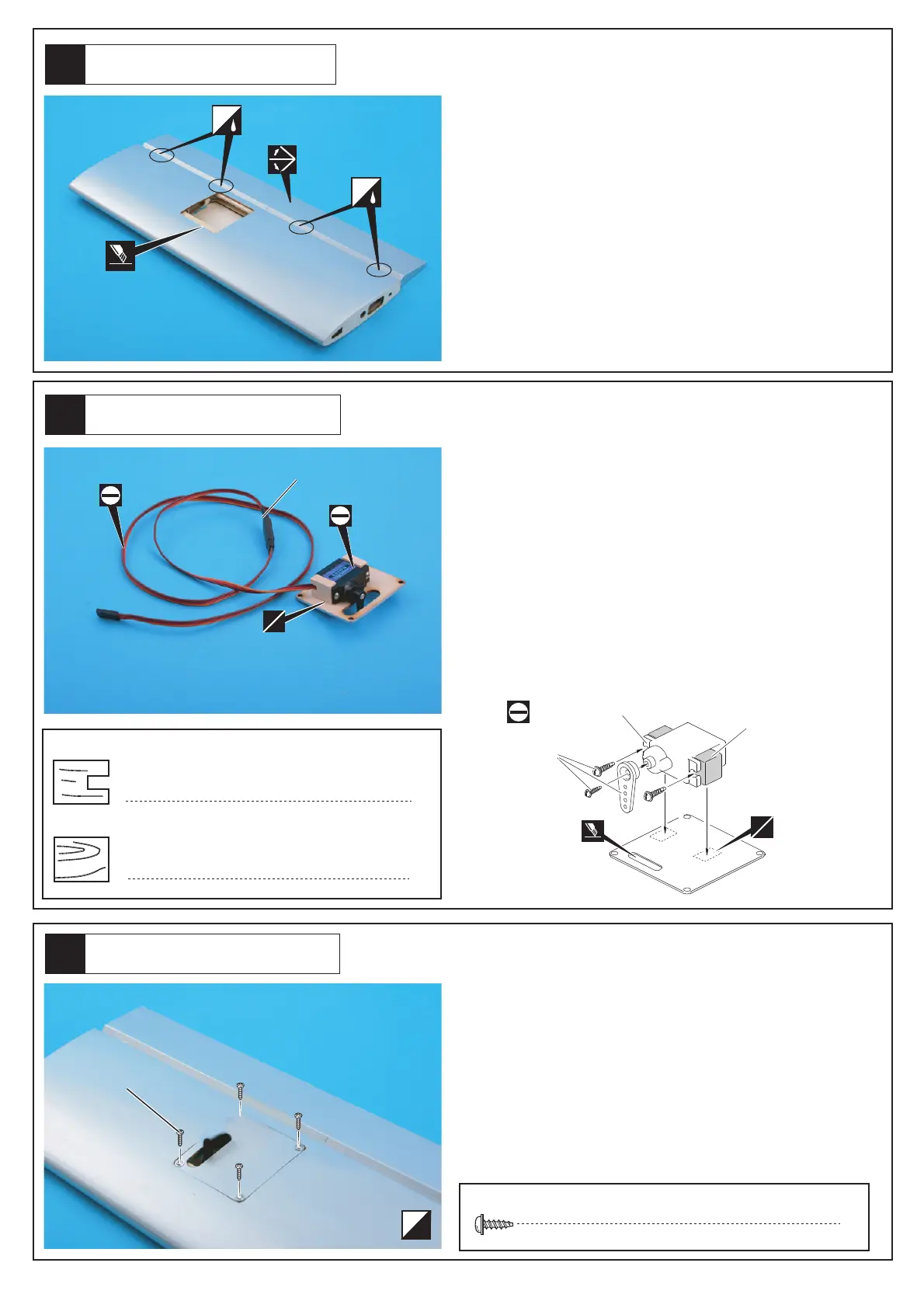

De Havilland VAMPIRE - Tailplane and Elevator Servo Installation

14
6
15
13
L
R
C.A
C.A
4
2 x 8mm
TP Screw
Cut away the covering on where servo will be
mounted. Then attach elevator to tailplane with C/A
glue and make sure elevator can move smoothly.
Attention; Make sure elevator is attached properly.
Tailplane
Elevator Servo
6
Hard wood 12 x 12 x 6mm
6
Hard wood 12 x 12 x 6mm
Must be purchased
separately!
Hard wood block
mount for servo.
lncluded with
the radio set.
A
B
approx. 600mm
A
B
Elevator Servo
Put servo in place as shown in picture. The servo wire
will go through from the side of tailplane, and then lock
in place with 2x8mm screws.
2 x 8mm Screw
Assembly for (Micro) Servo
Connect extension wire (approx. 600mm) to servo.
Attach the 12x12x6mm hard wood on servo tray with
A/B glue, then mount servo in place with the screws
supplied with servo.
Note the servo directions for left and right hand.
Attention: Extension wire, servo, servo plate & its parts
are NOT included!
