17
7
18
16
Tailplane
Tailplane
Flap
2
2 x 20mm Screw
Rod adjuster
Horn
1
2
1
2 x 30mm Rod
3 x 20mm Screw
3mm Washer
4
4
4
3mm No:1022

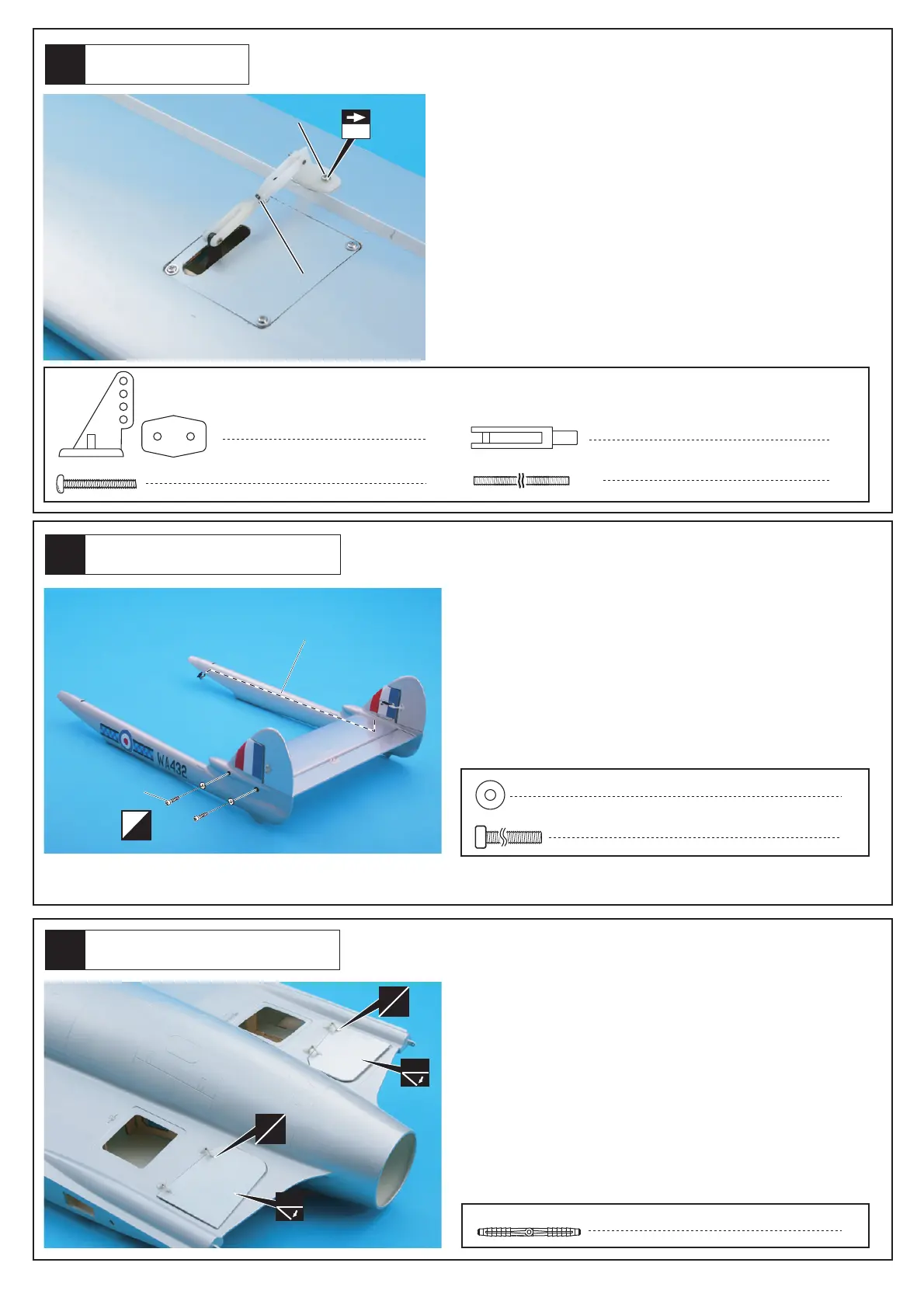

Drill two 2mm holes on where control horn will be
mounted as shown in picture. Then put 2x20mm screw
through control horn and elevator, then add the horn
base at the underside of elevator and lock it in place.
Then connect adjusters to both ends of the 2mm
threaded pushrod. Attach one end to control horn,
adjust to suitable length and attach the other end to
servo arm. Check the angle between servo arm and
pushrod.
2mm
2 x 20mm
2 x 30mm Rod
L
R
First, put the servo wire through from the back of verti-
cal fin to the front, as shown in picture. Then insert
3x20mm screws at the side of fin, add 3mm washer
and lock tailplane in place.
3 x 20mm Screw
extension
A
B
Attach 3mm hinge (#1022) in place with A/B glue, and
make sure flap can move smoothly
A
B
