Dea ADVANCE Series User Manual

45
ADVANCE ADVANCE XL

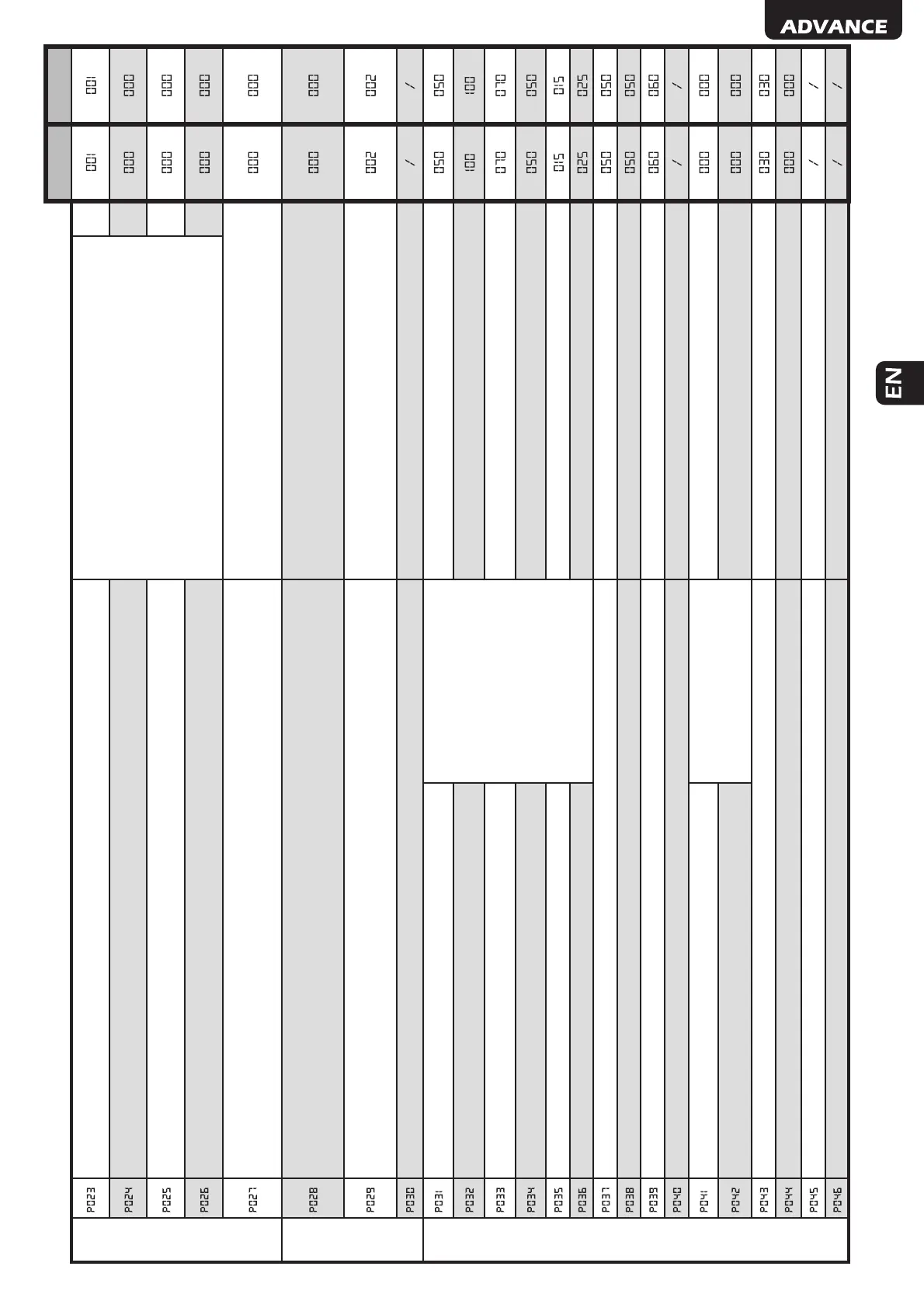

INPUTS CONFIGURATION PARAMETERS
Allocation of CHANNEL 1 of remotes
• 000: NONE (unused) • 001: START (start) • 002: PEDESTRIAN (pedestrian) • 003: OPEN (separated open) • 004: CLOSED (separated close) • 005: Unused • 006: Unused • 007: ELOCK_IN (confi gurable Output 2. See P062) • 008: AUX_IN (confi gurable Output 1. See P066) • 009: COURTESY_IN (courtesy light control) • 010: STOP
CH1
Allocation of CHANNEL 2 of remotes CH2 Allocation of CHANNEL 3 of remotes CH3 Allocation of CHANNEL 4 of remotes CH4 Selection of type of remotes
• 000: HCS fi x-code • 001: HCS rolling-code • 002: Dip-switch • 003: DART
OPERATORS
CONFIGURATION
PARAMETERS
Selection type of operators
• 000: ADVANCE - SPACE - VIP 60 • 001: SPACE L - VIP 80 • 002: ADVANCE XL - SPACE XL - VIP XL • 003: SPACE XXL
Select encoder type
• 001: 1 channel encoder • 002: 2 channel encoder
Unused parameter
OPERATING PARAMETERS
Operators speed adjustment during slow-down while opening
Warning: by modifying the values of these parameters, on exiting the programming mode, a new learning of the motor stroke will be requested.
15%........................100%
Operators speed adjustment during the stroke while opening 15%........................100% Operators speed adjustment during the stroke while closing 15%........................100% Operators speed adjustment during slow-down while closing 15%........................100% Slow down duration adjustment while opening 0%............................80% Slow down duration adjustment while closing 0%............................80% Operator 1 force adjustment while opening (if = 100% obstacle detection deactivated) 1%…...........................100% Operator n.1 force adjustment while closing (if = 100% obstacle detection deactivated) 1%…...........................100% Secondary force adjustment in closing: adjusts the motor’s force during the last part of the closing movement defi ned by P058 1%…...........................100% Unused parameter Automatic closing times adjustment (if = 0 automatic closing deactivated)
Warning: automatic closure must be used only in concomitance with the additional safety devices!
0sec...................................255sec
Pedestrian automatic closing time adjustment (se = 0 pedestrian automatic closing deactivated)
0min...................................255min
Pedestrian stroke duration adjustment 5%…...........................100% Pre-fl ashing time adjustment 0sec…….10sec Unused parameter Unused parameter
