Layout and Components
The general layout and components location is the same for all dehumidifiers of current type, however some may
vary, based on the dehumidifier’s specific options – refer to submittal documentation. Pic. D.1-L and D.1-B below
shows all/most available options, some of which may not be present on your dehumidifier.
Dehumidifier Main Components - SLX
• Main Blower (1) is in the main blower compartment next to the Main Electric Panel (2) and Compressor
Compartment (3).
• Min Outdoor Air (OA) Opening (4) is equipped with a louver and, as an option, with a motorized damper and
filter(s). The Manual OA Damper (5) is usually used to set proper amount of outdoor air intake.
2
1
3
4
5
6
7
8
9
11
10
12
13
14
15
19
18
17

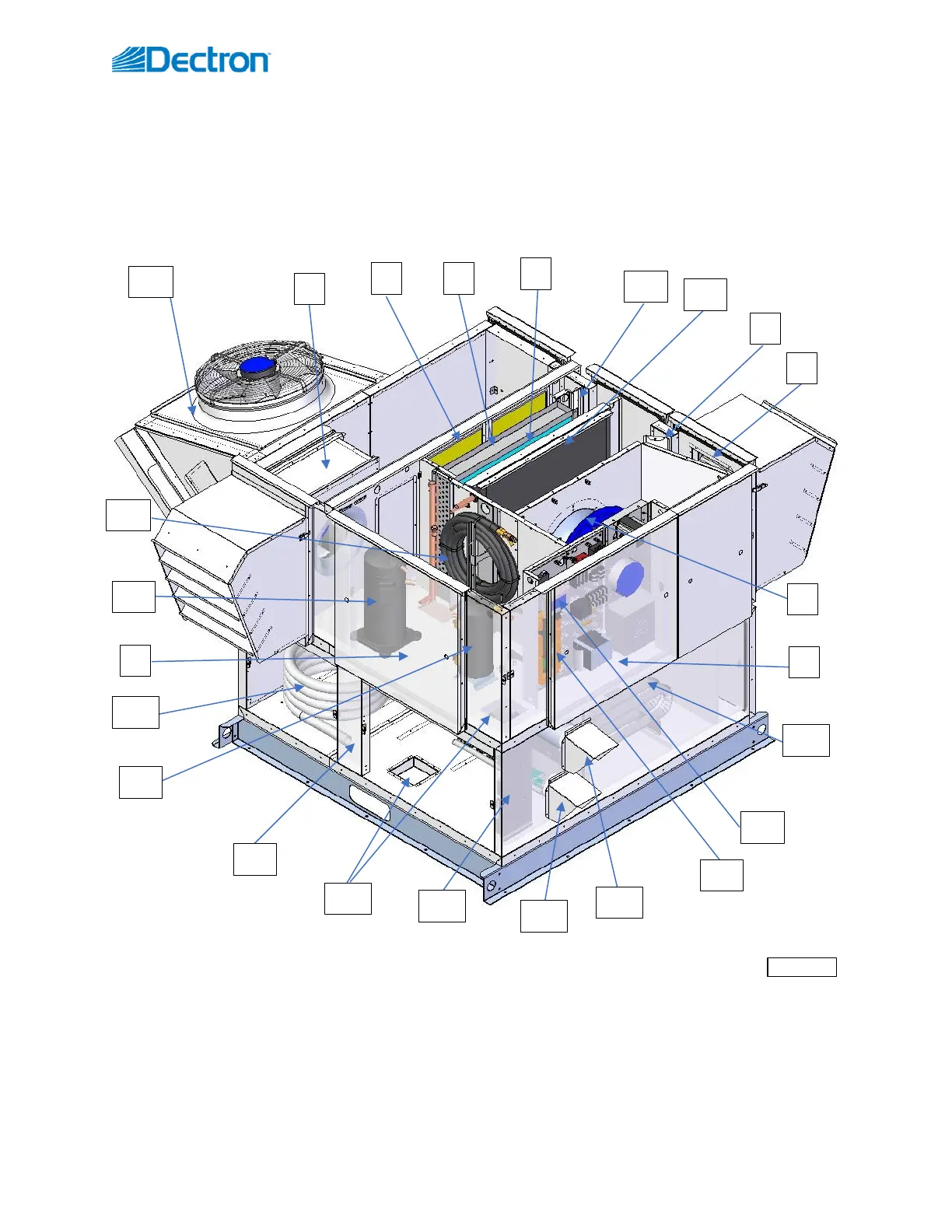

Pic. D.1-L
61
66
62
63
64
65
