DeDietrich AMC 15 User Manual

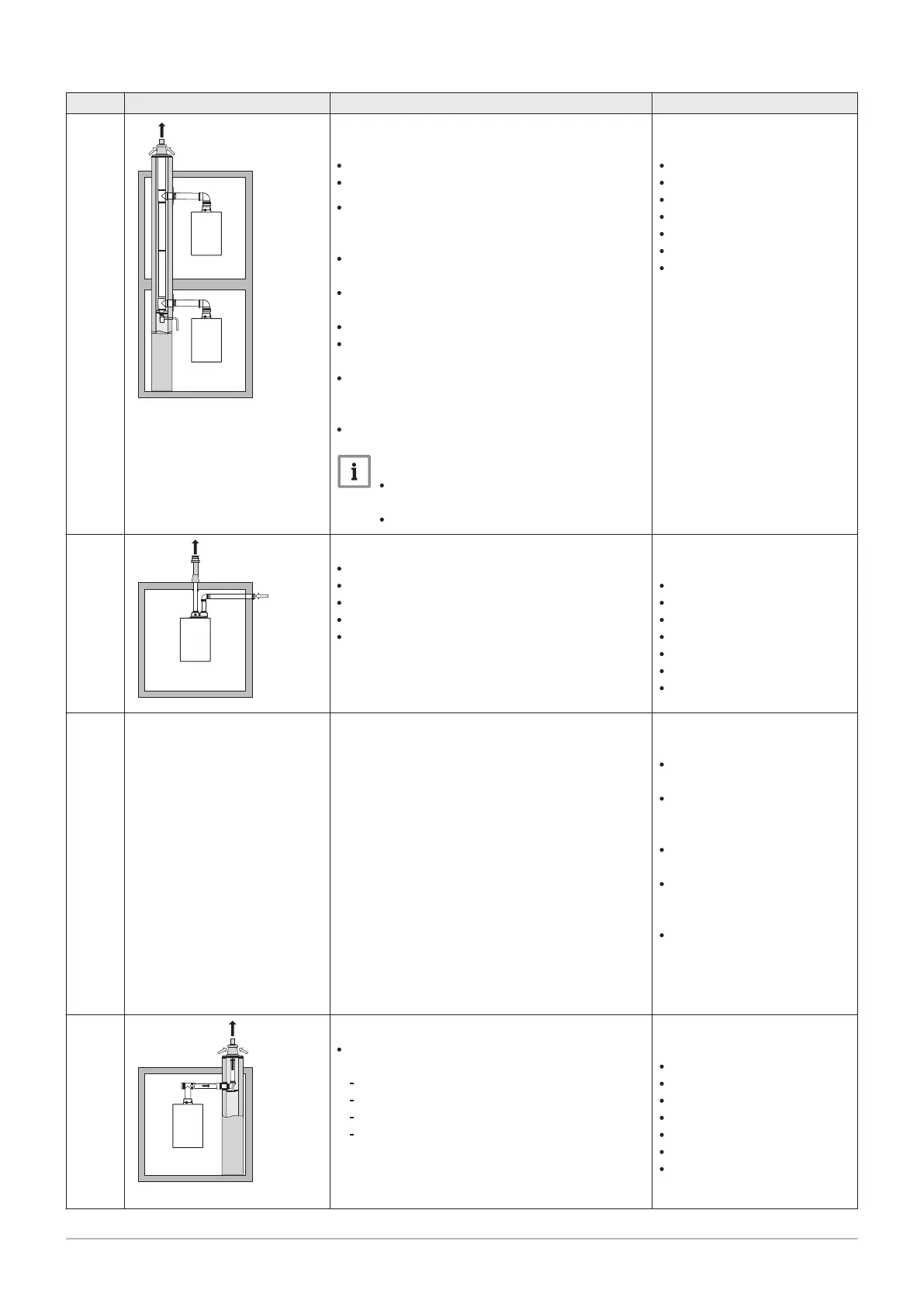

Type Principle Description
Permitted manufacturers
(1)
C
43P
(2)
AD-3000928-01
Combined air supply and flue gas outlet system
(CLV) with overpressure.
Concentric (preferably).
Parallel (if concentric is not possible).
Minimum permitted pressure difference between
the air supply and the flue gas outlet is -200 Pa
(including -100 Pa wind pressure).
The channel must be designed for a nominal
flue gas temperature of 25°C
Place a condensation drain, equipped with a si
phon, at the bottom of the channel.
Maximum permissible recirculation of 10%.
The common outlet should be appropriate for a
pressure of at least 200 Pa.
The roof feed-through must be designed for this
configuration and must cause a draught in the
channel.
A draught diverter is not permitted.
Important
The fan speed must be adapted for
this configuration.
Contact us for more information.
Connecting material to the
common channel:
Centrotherm
Cox Geelen
Muelink & Grol
Natalini
Poujoulat
Skoberne
Ubbink
C
53(X)
AD-3000929-02
Connection in different pressure zones
Closed unit.
Separate air supply duct.
Separate flue gas discharge duct.
Discharging into various pressure areas.
The air supply and the flue gas outlet must not
be placed on opposite walls.
Connection material and roof
terminal:
Centrotherm
Cox Geelen
Muelink & Grol
Natalini
Poujoulat
Skoberne
Ubbink
C
63(X)
This type of unit is supplied by the manufacturer
without a supply and discharge system.
When selecting the material,
please note the following:
Condensed water must flow
back to the appliance
The material must be resist
ant to the flue gas tempera
ture of this appliance.
Maximum permissible recir
culation of 10%.
The air supply and the flue
gas outlet must not be placed
on opposite walls.
Minimum permitted pressure
difference between the air
supply and the flue gas outlet
is -200 Pa (including -100 Pa
wind pressure).
C
93(X)
(3)
AD-3000931-01
Room-sealed version
Air supply and flue gas discharge duct in shaft
or ducted:
Concentric.
Air supply from existing duct.
Flue gas discharge via the roof.
Inlet opening for the air supply is in the same
pressure zone as the discharge.
Connection material and roof
terminal:
Centrotherm
Cox Geelen
Muelink & Grol
Natalini
Poujoulat
Skoberne
Ubbink
6 Installation
30 AMC 7686707 - v.01 - 06092018
