43

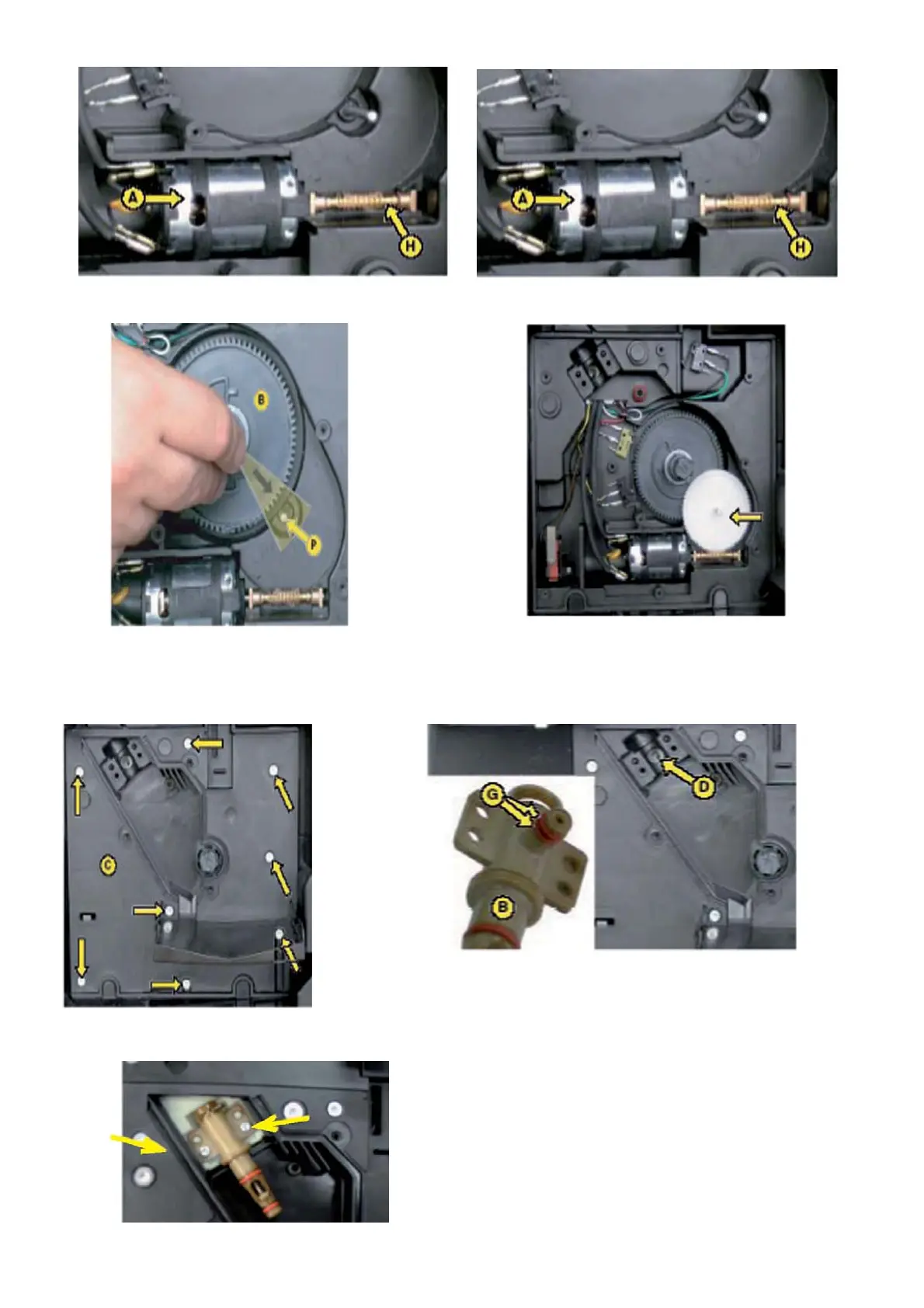

Fit the small motor and transmission shaft by placing the parts in their casing (L)
Fit the gear (B), while making sure
that the printed arrow is included in
the opening that contains the pivot
(P).
Fit the gear that couples with the
transmission shaft.
Refit the protection cover (C)
and replace the screws
Refit the boiler pivot (B) while making sure that the
two joints (G) are present on the beak that fits in the
pipe hole (D).
Replace the boiler pivot screws.
Warning : before tightening the screws they
must both be fully screwed
