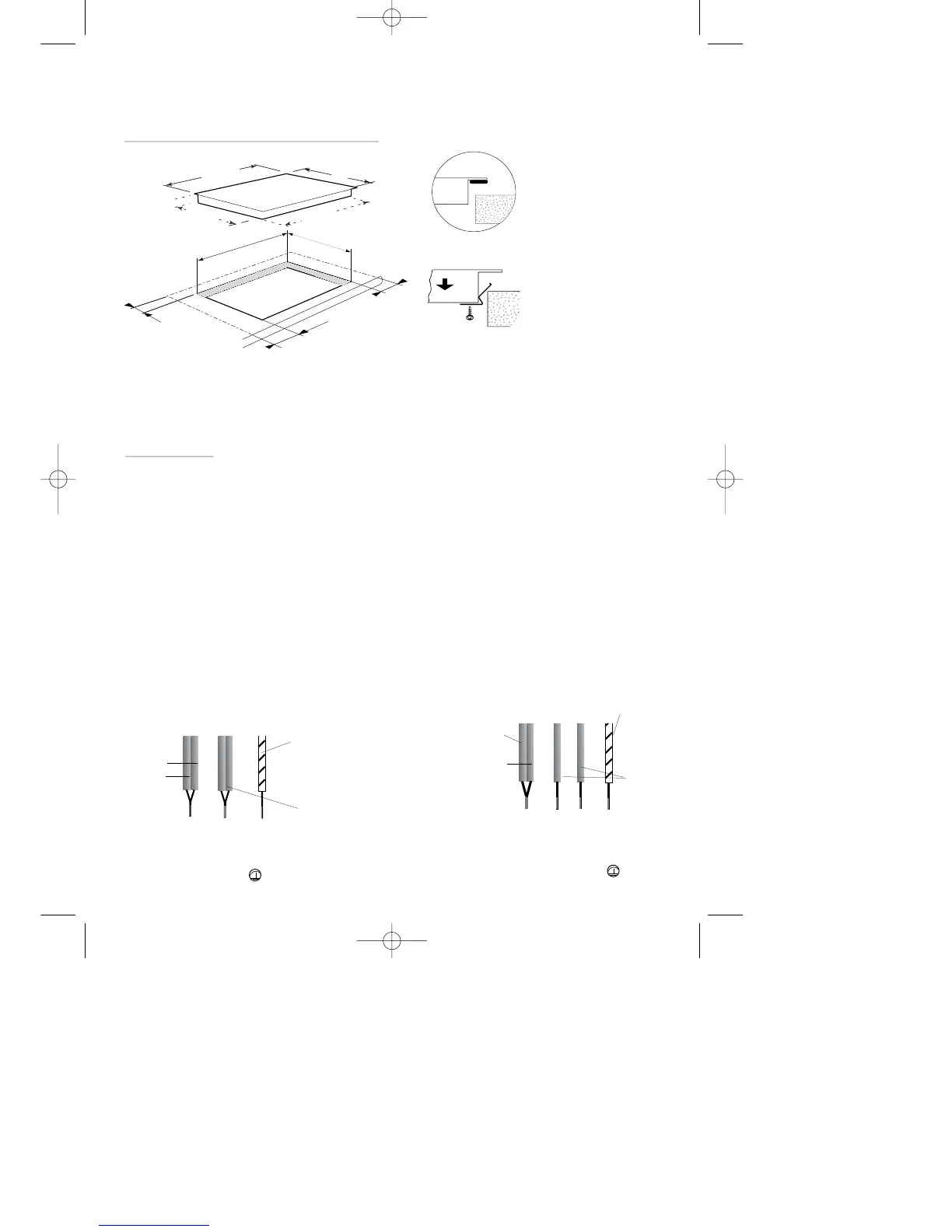

Consejos de empotramiento
Una junta garantiza la
estanqueidad con la
encimera.
-Esta junta está situada
debajo de su placa, inserte
directamente la placa en el
rectángulo recortado.
-Se suministra en la bolsita,
pegue la misma debajo de la
placa.
El aparato debe estar colocado de manera que la caja del
enchufe a la corriente eléctrica quede accesible.
Conexión
65
51
48,8
55,5
5,9
medidas en cm
56
6 cm mini
6 cm mini
Neutro
Tierra
Fase
N
L
- 220-240 V monofásico
fusible : 32 Amperios
Neutro
Tierra
Fase 2
Fase 1
N
L1
L2
separar los 2 hilos de
fase L1, L2 antes de
enchufar
Azul
verde/amarillo
Negro
- 400 V 2N trifásico
fusible : 16 Amperios
verde/amarillo
Azul
Negro
Marrón
Marrón
These hobs are connected to the power supply via a plug that complies with publication CEI 60083 or
an all-pole cut-out unit with contacts that open by at least 3mm.
If the cable is damaged, it must be replaced by the manufacturers, their After Sales Service or another
similarly qualified person for avoiding any possible risk of accident.
When the power is switched on, or after a long power failure, a light code appears on the control panel.
This disappears automatically after about 30 seconds or as soon as any touch control is touched on the
panel. This is normal, as the display is for use by the after-sales service when required. The user must
not take this into account under any circumstances.If the unit has a 3 phase 400 V2N connection, and
is not working correctly, check that the neutral wire is correctly connected. This precaution should also
be taken for all your other electronic apparatus.
